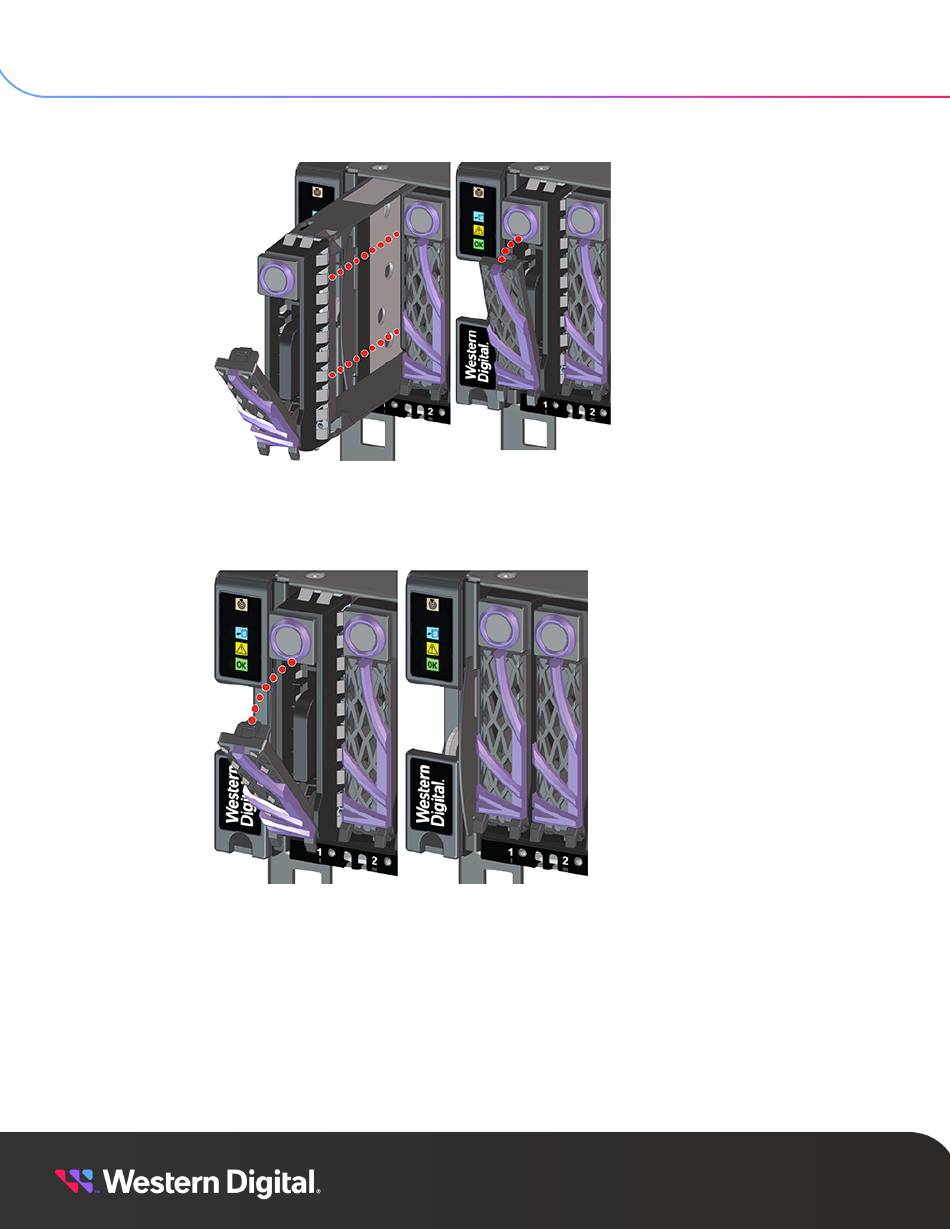

Figure 81: Drive Assembly Latch Engaged
c. Rotate the release handle up and press it into the Drive Assembly to secure it into the slot.
When it is fully installed the user will feel the handle snap and lock into place.
Figure 82: Drive Assembly Installation
Step 15 :
Install the remaining Drive Assembly in the same way the first was installed.
Install the IO Module (IOM) into the enclosure.
Step 16 :
a. Unlock the IO Module (IOM) by turning the thumbscrew counterclockwise until the screw
threads are not engaged any longer. The location of the thumbscrew is shown in the
following image.
3. Support
3.6 Chassis Replacement
72
