Figure 54: Uninstall Power Supply Unit (PSU)
Step 4 : Unpack and inspect the new Power Supply Unit (PSU) for damage.
a. Inspect the packaging that the Power Supply Unit (PSU) replacement was shipped in and
record any damage to the box. Large cuts, open boxes, and crushed corners should be
reported.
b. Remove the Power Supply Unit (PSU) from the packaging and verify that there is no damage
to the Power Supply Unit (PSU). Dents, scratches, and broken parts should be reported. If
major damage has occurred to the Power Supply Unit (PSU), DO NOT use the replacement
part.
Step 5 : Install the Power Supply Unit (PSU) into the enclosure.

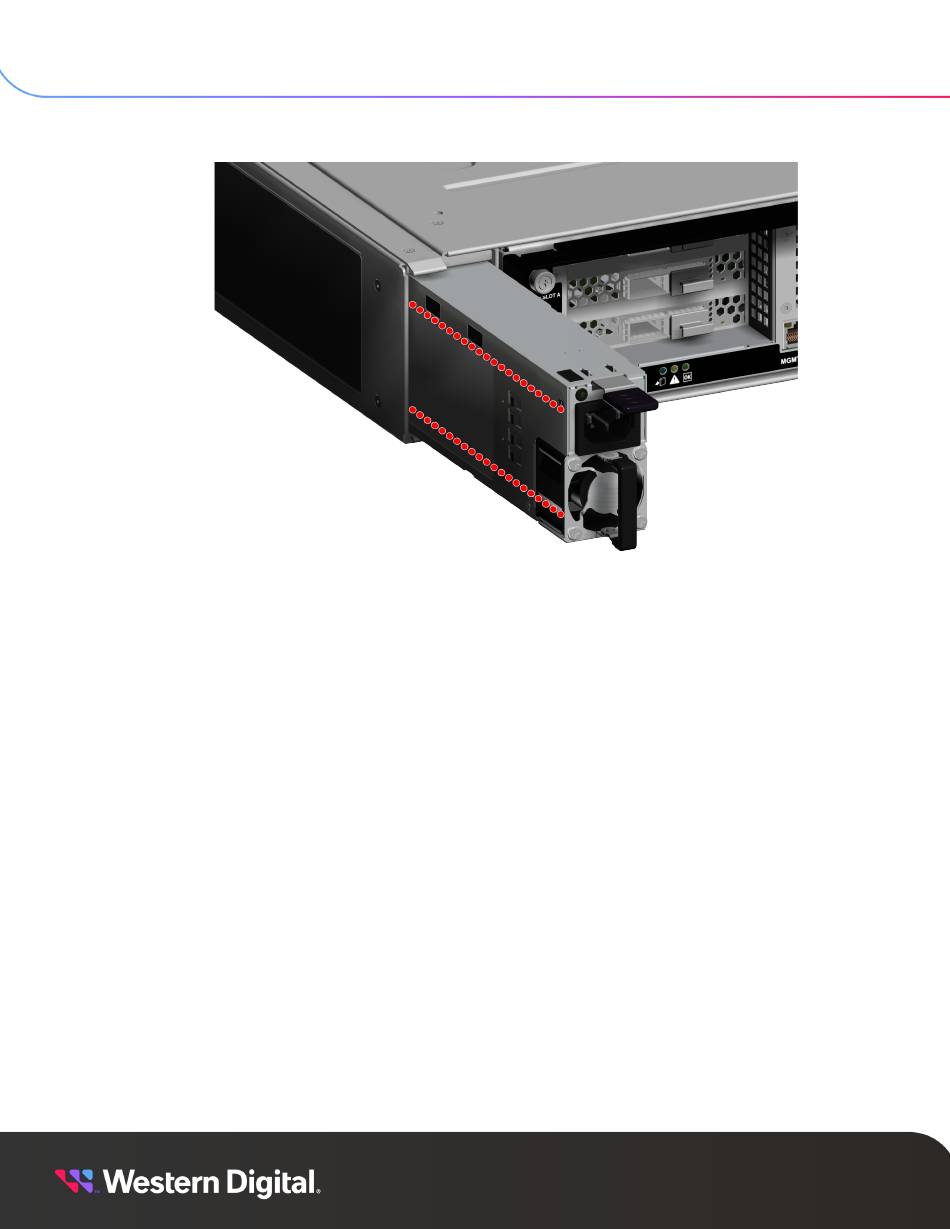

a. Orient the Power Supply Unit (PSU) with the power port located on the top and insert it into
the Power Supply Unit (PSU) slot. The location of the power port is shown in the following
image.
