User Guide

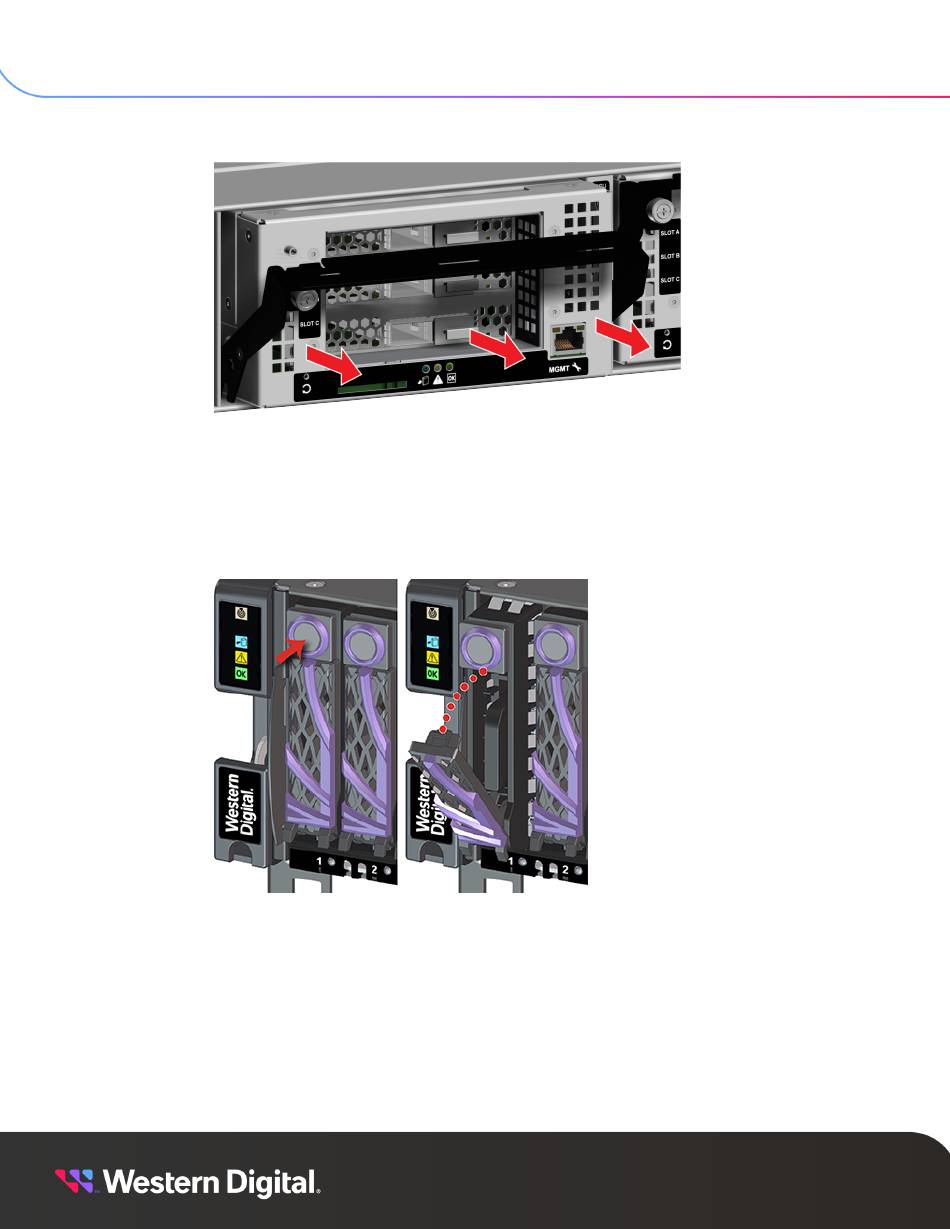

Figure 72: Uninstall IO Module (IOM)
Uninstall the remaining IO Module (IOM) in the same way the first was uninstalled.
Step 8 :
Step 9 :
Uninstall the Drive Assembly from the enclosure.
a. From the front of the rack, press the release button on the front of the Drive Assembly. The
release handle will eject outward.
Figure 73: Drive Assembly Release Operation
b. Use the release handle to pull the Drive Assembly out of the enclosure.
3. Support
3.6 Chassis Replacement
66
