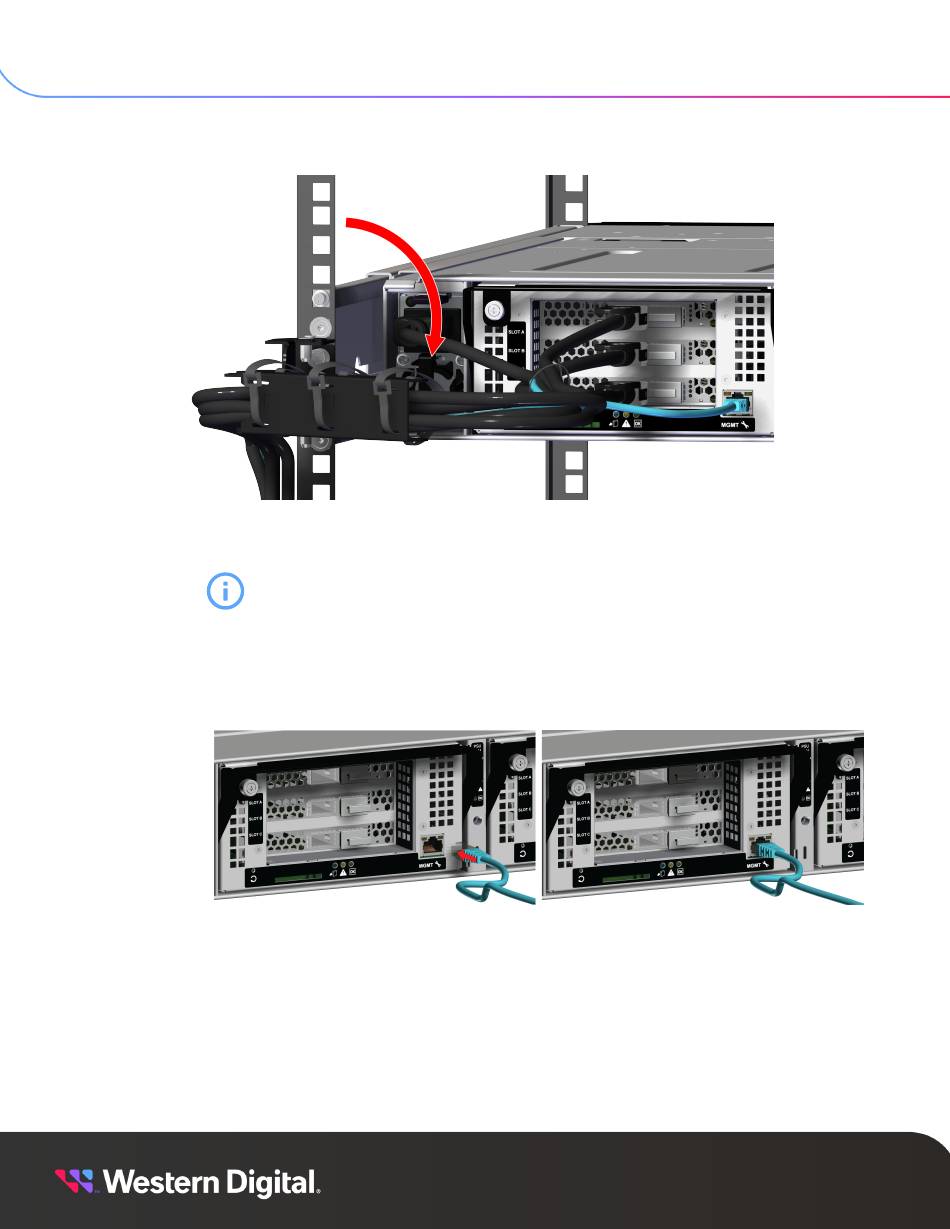

Figure 93: Return the CMA Assembly to the Operational State
Step 22 : (Optional)
Step 23 : Connect the data and power cables to the enclosure.
a. Move to the rear of the rack and connect the Ethernet Cables into the Ethernet Management
ports.
Figure 94: Connecting RJ45 Ethernet Cable to Management Port
b. Connect the QSFP28 cables into all of the IOM ports.
Repeat the previous step to return the remaining arm to the operational state.
The system requires a power source that can support a voltage range of
Attention:
200 - 240Vac.
