5.2 System Topology
5.2 System Topology
The OpenFlex Data24 3200 supports four different topologies for connecting to hosts. The following
diagrams provide detailed connections for each option. The diagrams in this section display the maximum of
three Add-in Card (AIC)configuration for each IOM. OpenFlex Data24 3200 also supports one and two AIC
configurations per IOM.

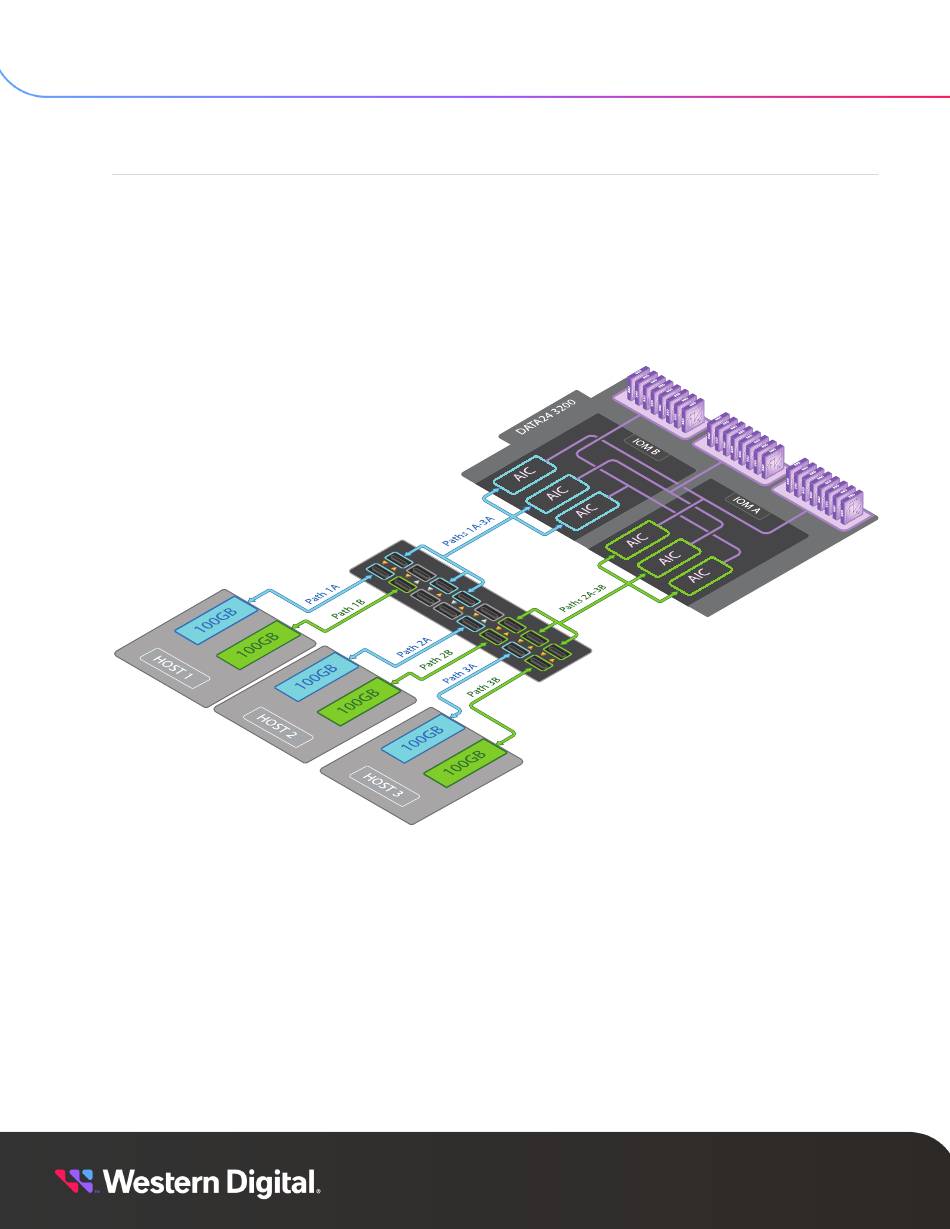

High Availability Switched Topology
Each connection is based on the three add-in card (AIC) configuration. This configuration assumes that
multi-path software is loaded on the host.
