User Guide

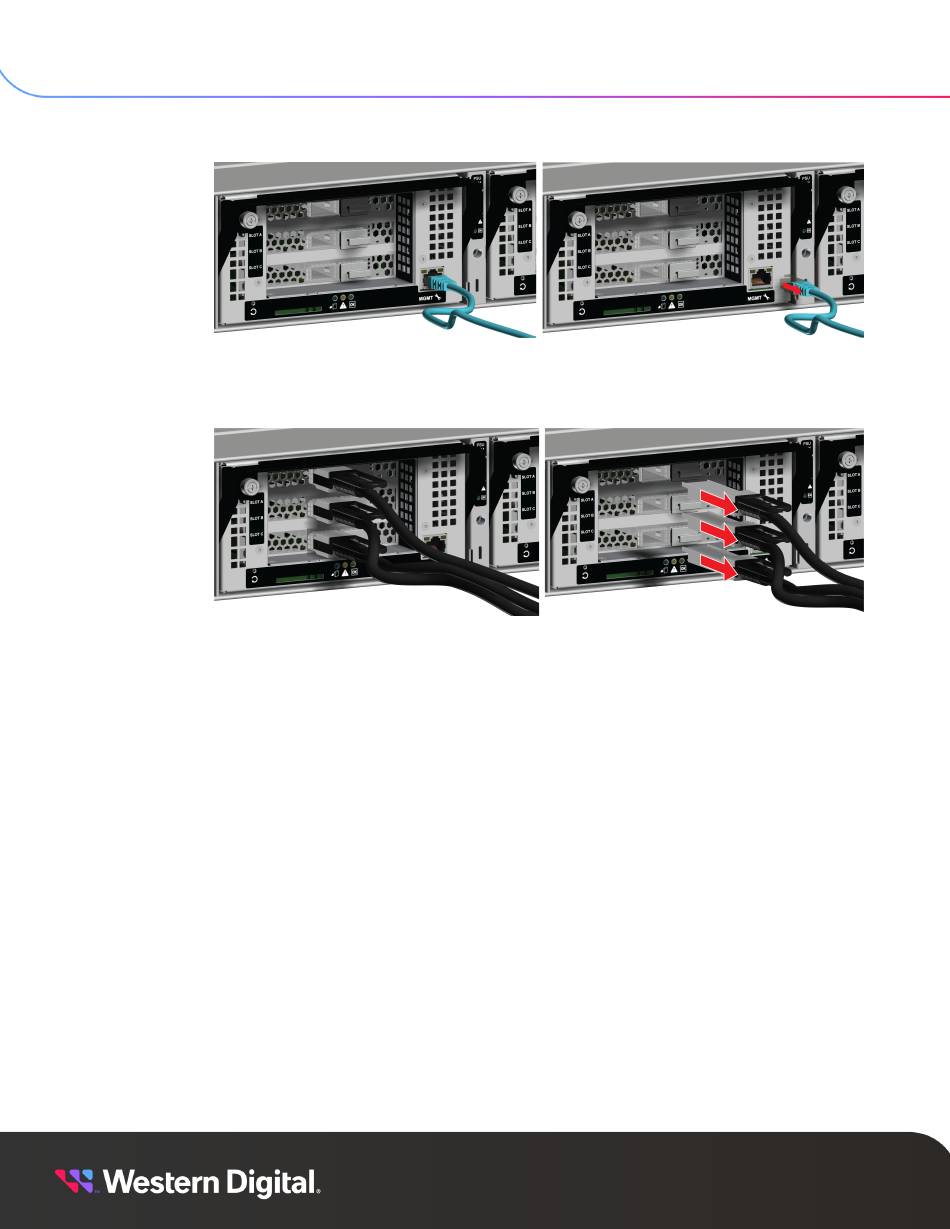

Figure 98: Disconnect RJ45 Ethernet Cables
c. Disconnect the QSFP28 cables from all of the IOM ports.
Figure 99: Disconnect QSFP28 Cables
Step 2 : (Optional)
servicing away from the system. This will allow for ease of access to the components on the
chosen side while keeping the system cabling organized and safe. The CMA must be removed
before attempting to remove the rails.
If your configuration contains a CMA, carefully move the arm on the side in need of
3. Support
3.7 Rails Replacement
82
