a. Move to the rear of the rack and connect the Ethernet Cables into the Ethernet Management
ports.

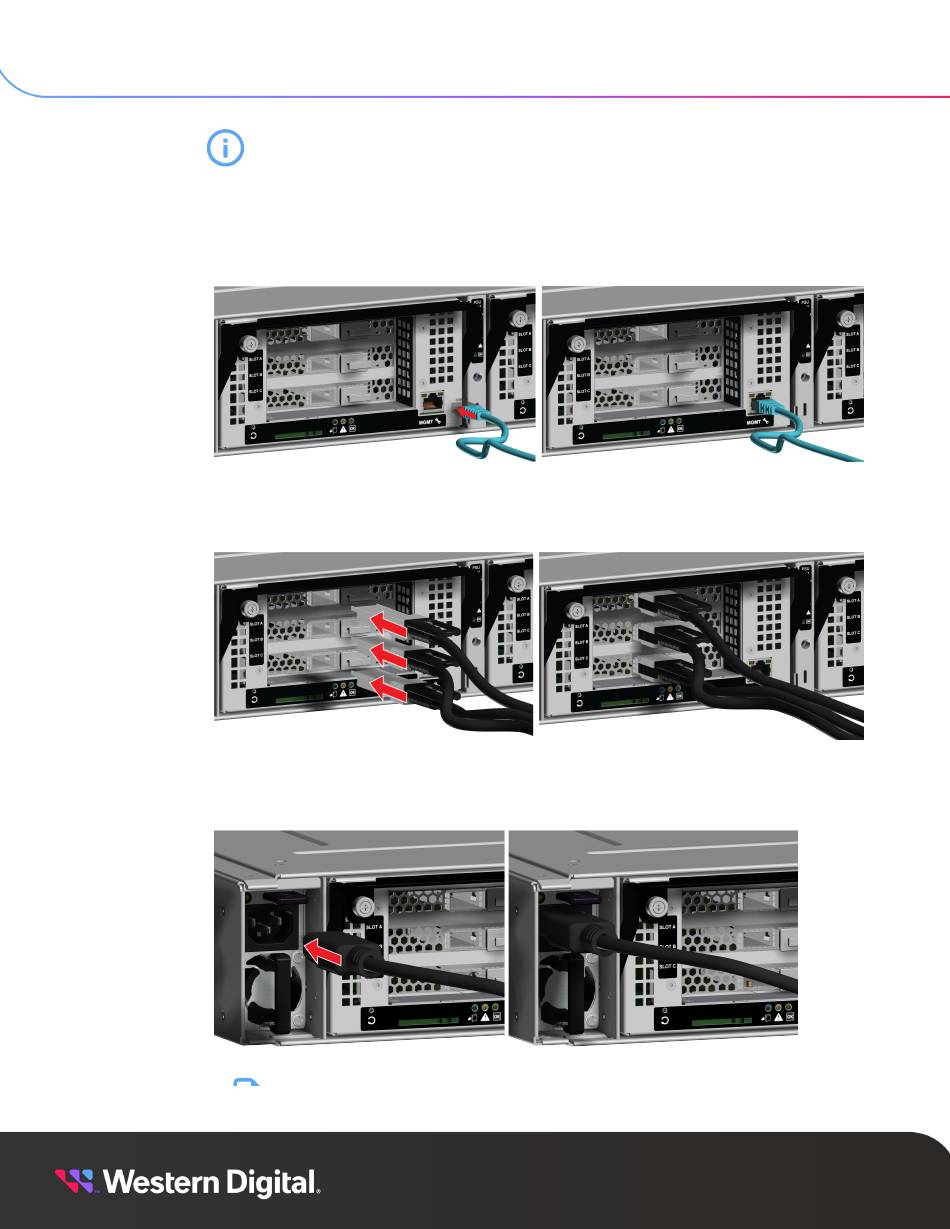

Figure 130: Connecting RJ45 Ethernet Cable to Management Port
b. Connect the QSFP28 cables into all of the IOM ports.
Figure 131: Connect QSFP28 Cables
c. Connect the power cables into the two Power Supply Unit (PSU) power connectors.
Figure 132: Connect Power Cables
3.8 Cable Management Arm (CMA) Assembly Replacement
The system requires a power source that can support a voltage range of
Attention:
200 - 240Vac.
