Unpack and inspect the new Chassis for damage.
Step 12 :
a. Inspect the packaging that the Chassis replacement was shipped in and record any damage
to the box. Large cuts, open boxes, and crushed corners should be reported.
b. Remove the Chassis from the packaging and verify that there is no damage to the Chassis.
Dents, scratches, and broken parts should be reported. If major damage has occurred to the
Chassis, DO NOT use the replacement part.
Step 13 : Install the Chassis onto the rack mounted rails.
a. Carefully slide the Chassis onto the rails until the rack ears are flush with the mounts on the
rails.

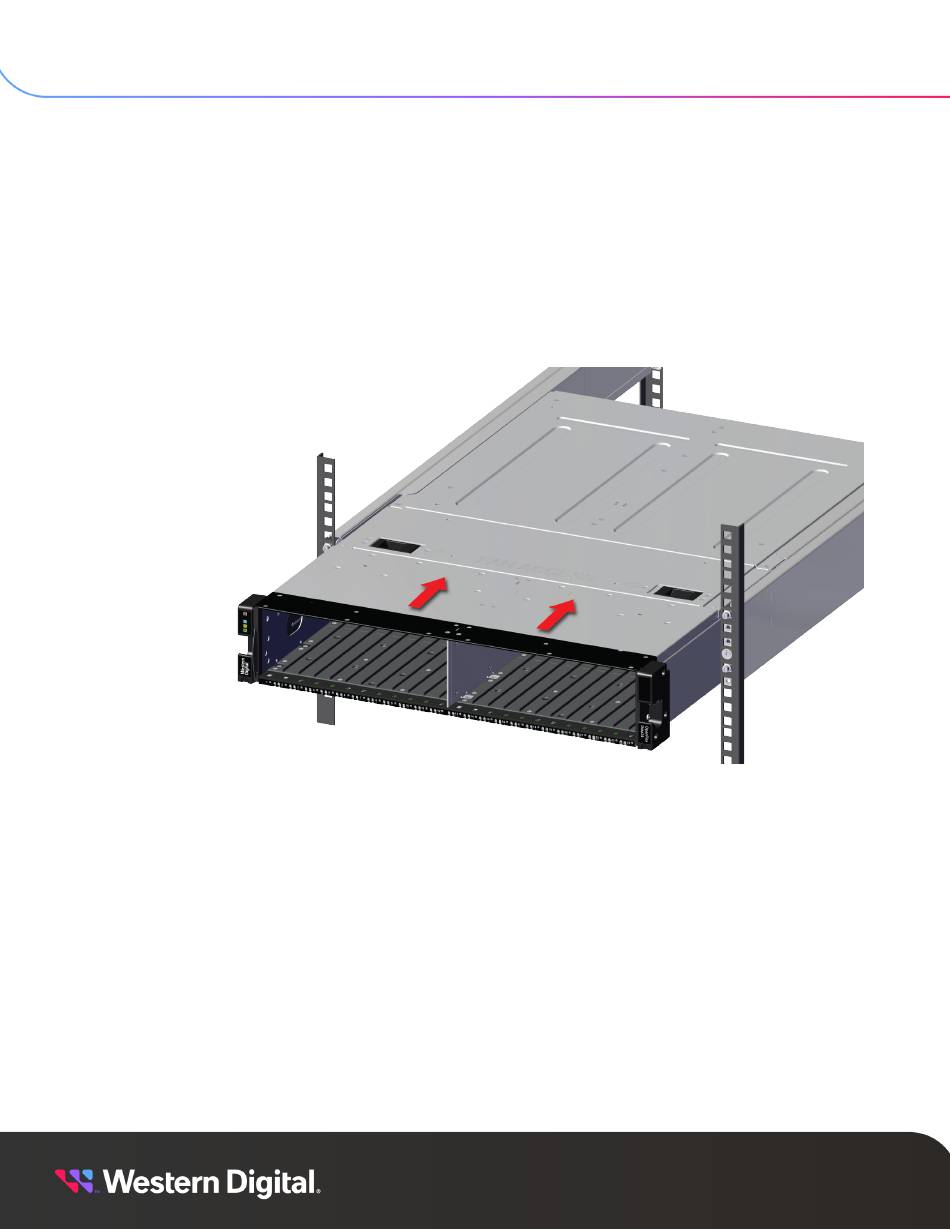

Figure 78: Chassis Installation
b. Using the T15 Torx screwdriver, tighten the two Torx captive screws, located under the rack
ear cutouts, to secure the Chassis to the rail. Repeat this step to secure the remaining rack
mount to the remaining rail.
3. Support
3.6 Chassis Replacement
