User Guide
1.2 Design Details

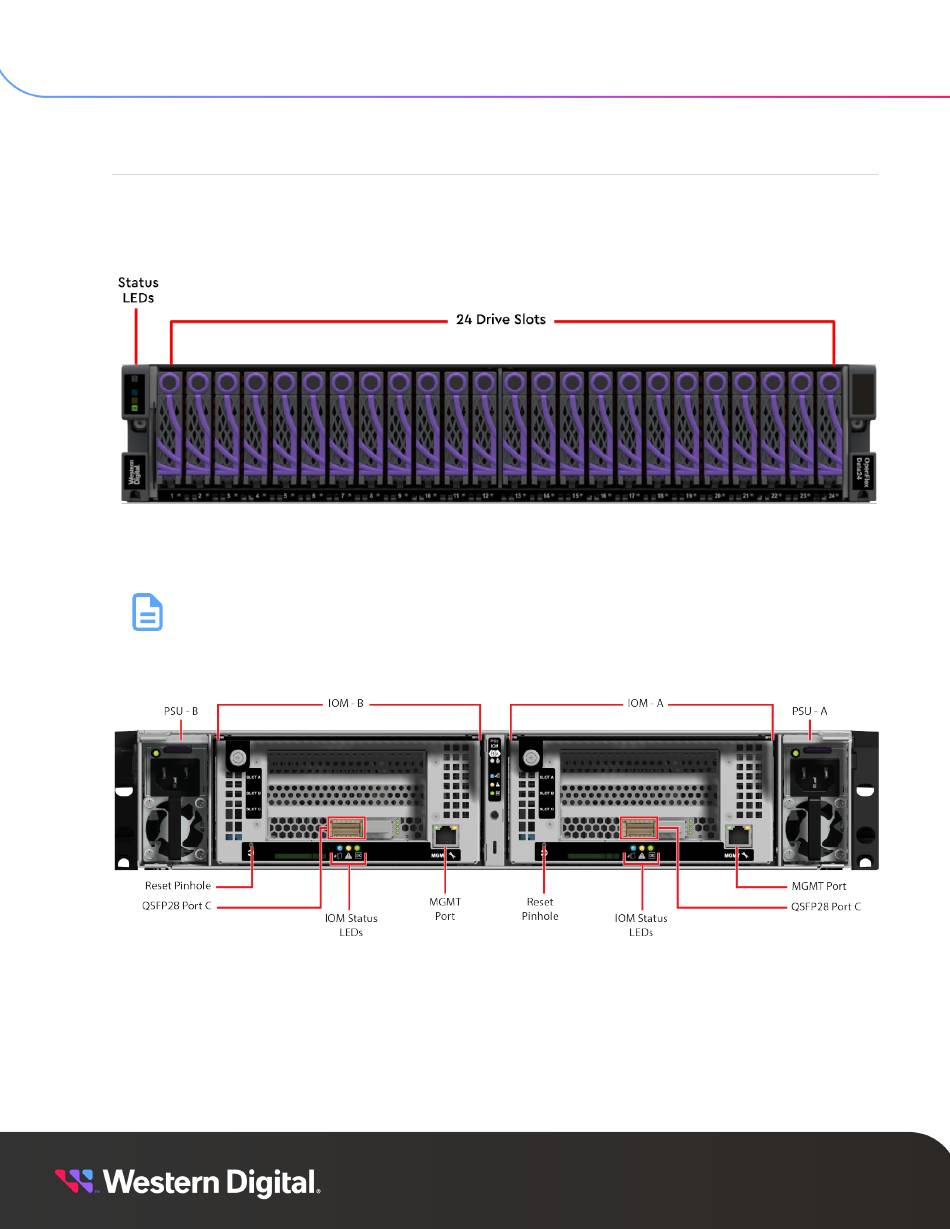

On the front of the OpenFlex Data24 3200 there are the 24 Small Form Factor (SFF) drive slots, and the
enclosure status LEDs. Each drive is individually removable/serviceable. Below each drive slot is a status
and activity LED embedded in the chassis. For more details, see the
The rear of the platform contains the Power Supply Units (PSUs) and IO Modules (IOMs). The System Fans
are accessible from the top of the unit via a latch cover, which can be accessed by extending the unit out of
the rack. All of these components are hot-swappable and do not require tools to replace.
Note:
The right port in the add-in card(s) is populated with a plug and is disabled. The left port
on the add-in card(s) port is enabled for QSFP28 connection.
Figure 3: Single AIC Configuration
1.2 Design Details
LEDs (page 6)
section.
1. Overview
3
