User Guide
"Self": "http://10.202.238.146:80/Storage/Devices/openflex-data24-usalp03020qb0007/
Support/"
},
"SystemClock": {
"Self": "http://10.202.238.146:80/Storage/Devices/openflex-data24-usalp03020qb0007/
SystemClock/"
}
}
Method #3 - GUI via In-band Network Connection
Discover the desired Data24 by connecting to the appropriate Compute Proxy OpenFlex API application
installed on the Host Initiator that is connected to the Data24.
GUI Command: "IP Address for the Compute Proxy OpenFlex API Device"
Note: Log in first, if prompted.

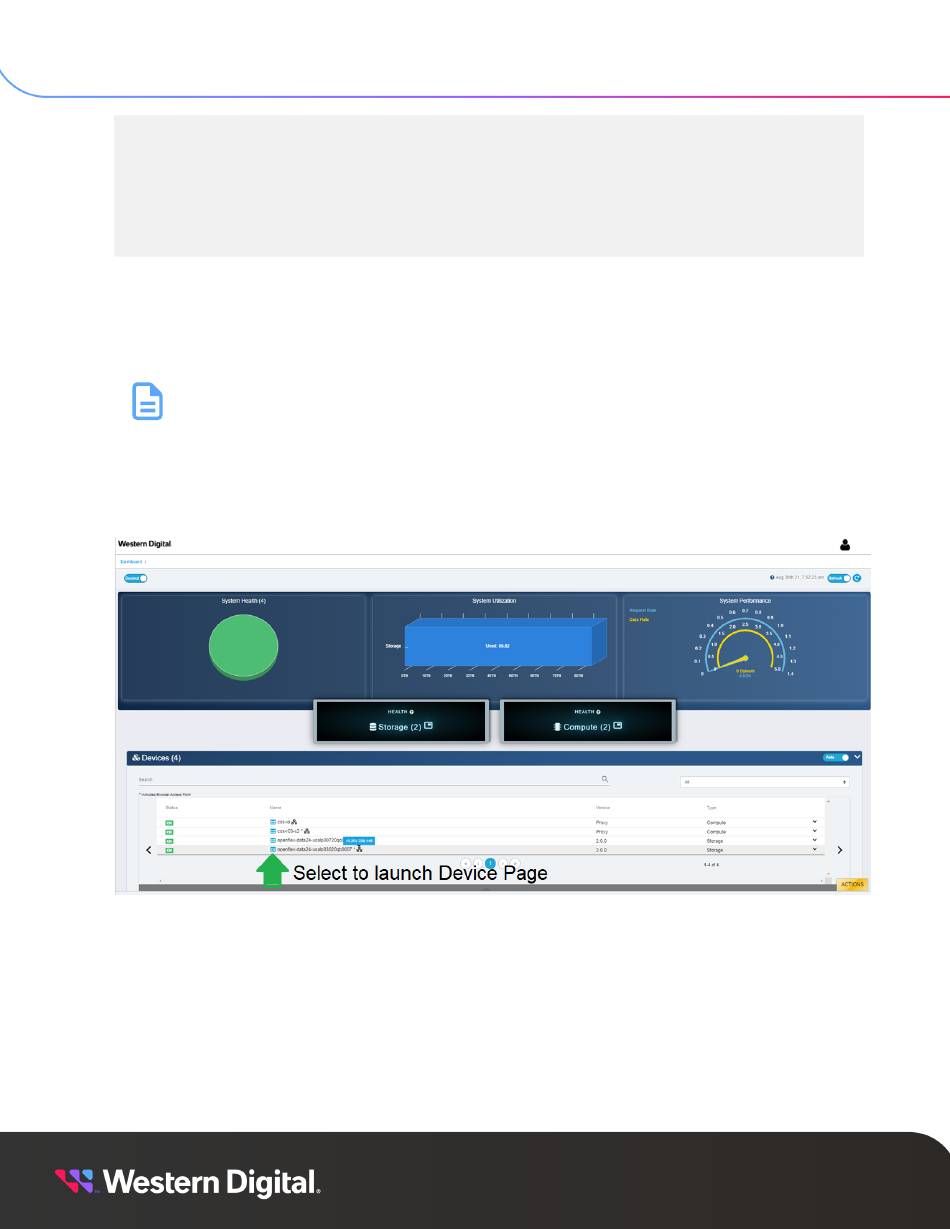

Result: GUI Dashboard Page shows the Data24. Note the "hover" over the Network Icon indicates the "in-
band IP Address" to get to the Data24's Device Page.
EXAMPLE USAGE
Browser Address Line:
GUI Command: "GET IN-BAND-ADDRESS/device?self=http://IN-BAND-ADDRESS/Storage/Devices/
openflex-data24-usalp03020qb0007/"
Result: Response indicates the "IO MODULE A", therefore, the default in-band connection path is to
Controller 1 (IOM-A)
Either launched from the Dashboard Page or direct URI entered on the Browser Address Line.
For Browser Address Line, the pattern is "In-band IP Address/device?self=In-Band Address/Storage/
Devices/Data24_Enclosure_ID/"
EXAMPLE USAGE
:
http://10.202.238.146
:
5. Configuration
5.8 In-Band Management Usage
