User Guide
5.7.2 Target IP Address Discovery Methods

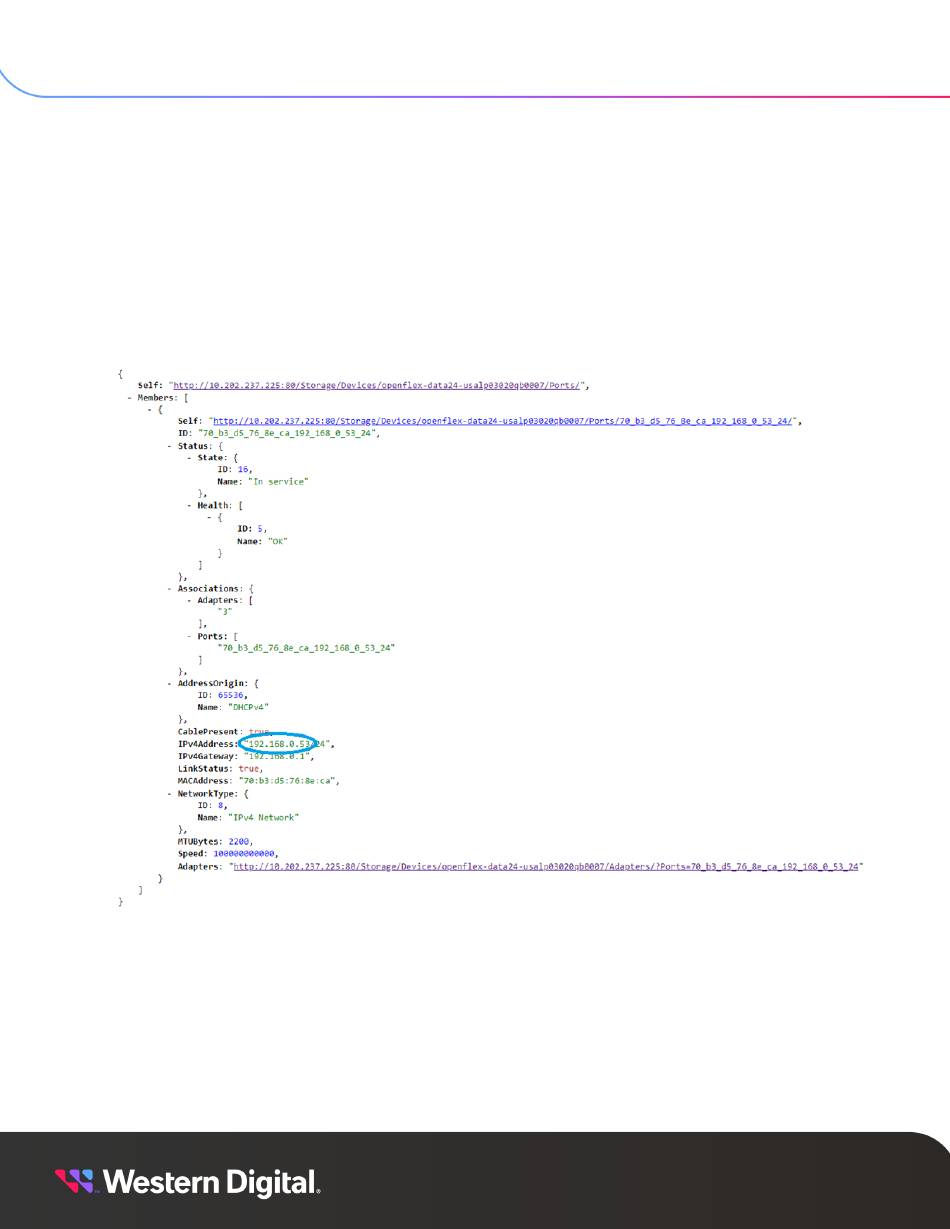

Method #1 - API via OOB Network Connection (using a Browser)
Determine the Data24 Host Adapter connection IP Address for Controller 1 (IOM-A) via out-of-band
connection (IOM-A AIC-C = Adapter 3)
API Command: "GET /Storage/Devices/{id}/Ports/?Adapters=3"
Result: Target Add-in-Card IP Address = 192.168.0.53
EXAMPLE USAGE
openflex-data24-usalp03020qb0007/Ports/?Adapters=3
Determine the Data24 Host Adapter connection IP Address for Controller 2 (IOM-B) via out-of-band
connection (IOM-B AIC-C = Adapter 6)
API Command: "GET /Storage/Devices/{id}/Ports/?Adapters=6"
Result: Target Add-in-Card IP Address = 192.168.1.53
EXAMPLE USAGE
http://10.202.237.225/Storage/Devices/openflex-data24-usalp03020qb0007/Ports/?Adapters=6
: Send this URI via the Browser Address Line:
: Send this URI via the Browser Address Line:
5.7 In-Band Management Setup
http://10.202.237.225/Storage/Devices/
5. Configuration
195
