User Guide

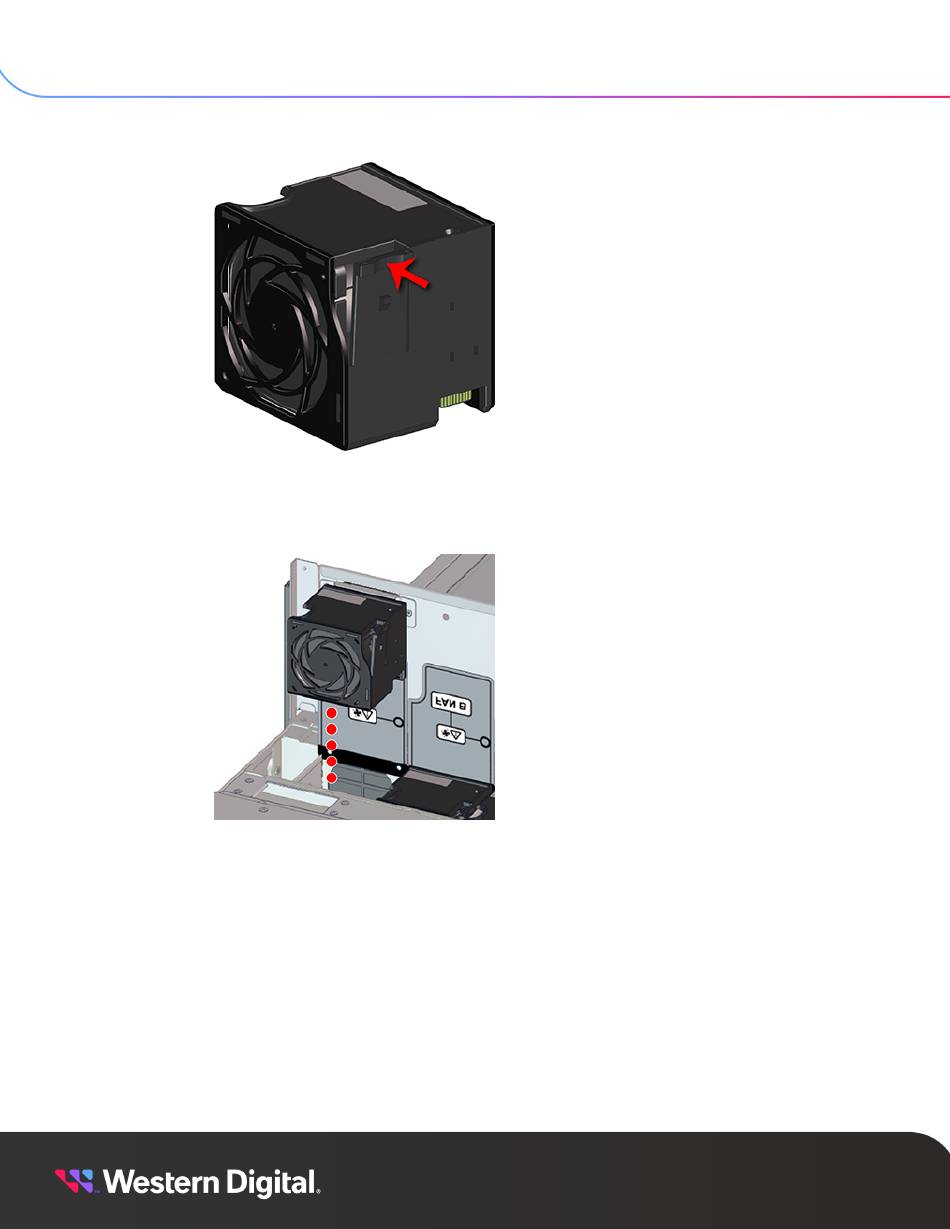

Figure 66: System Fan Latch Operation
d. Carefully pull the System Fan out of the System Fan slot.
Figure 67: Uninstall System Fan
e. Repeat these steps to remove the remaining System Fans.
Step 5 :
Uninstall the Power Supply Unit (PSU) from the enclosure.
a. From the rear of the rack, grasp the ring handle with your index finger and use your thumb to
press the latch release using a pinching motion.
3. Support
3.6 Chassis Replacement
63
