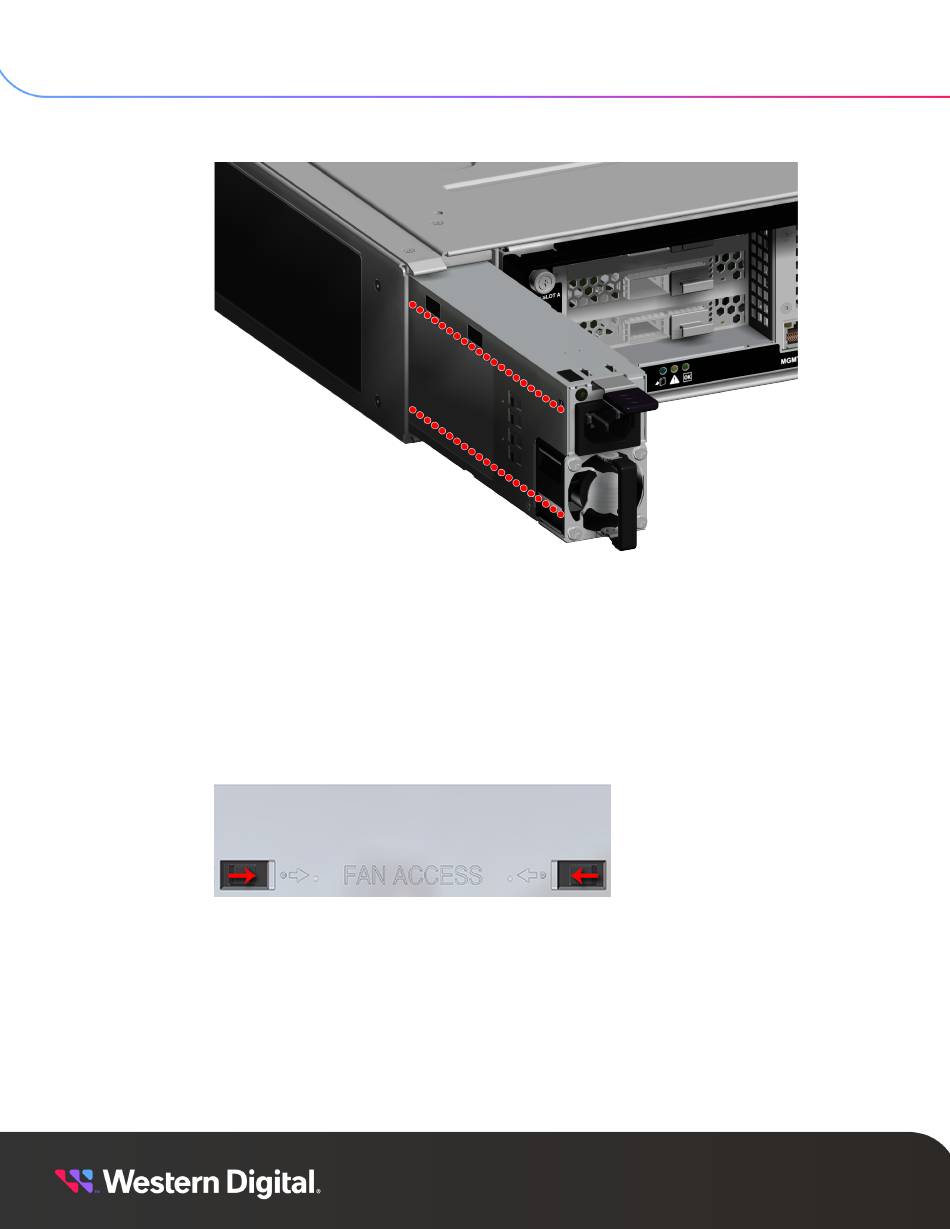

Figure 87: Power Supply Unit (PSU) Installation
b. Verify that the Power Supply Unit (PSU) is fully seated and latched into the Power Supply
Unit (PSU) slot by gently pulling on the handle.
Step 19 :
Install the remaining Power Supply Unit (PSU) in the same way the first was installed.
Step 20 :
Install the System Fans into the enclosure.
a. Unlatch the System Fan bay cover by sliding both latches in towards the center of the
Chassis until the cover is released and can rotated open on its hinges. The latch operation is
shown in the following image.
Figure 88: System Fan Bay Cover Latch Location
3. Support
3.6 Chassis Replacement
