Installing an mSATA Module

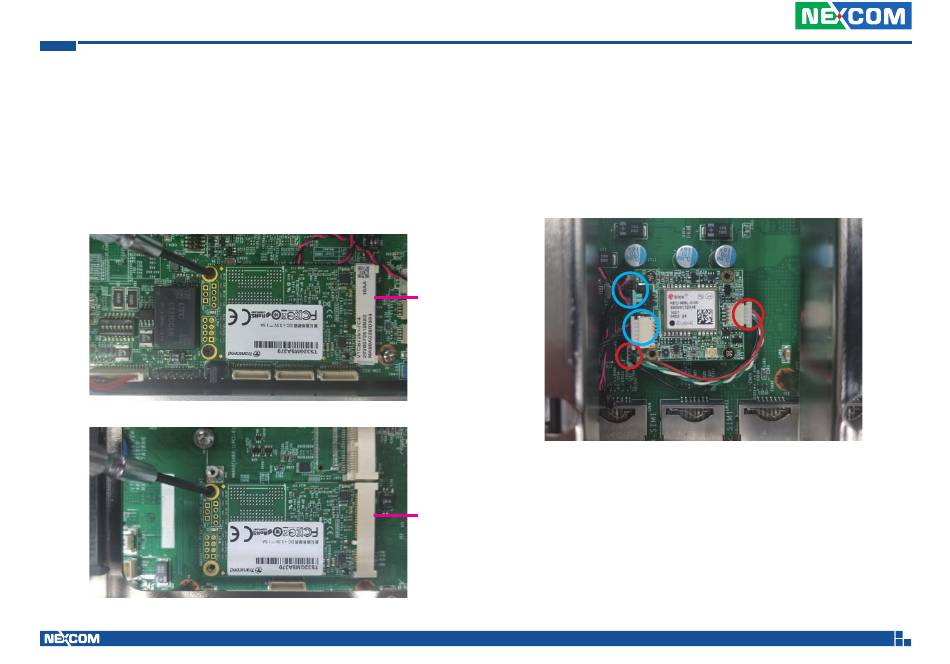

1. Locate the mini PCI Express slot (CN3 or CN4). Insert the module into the
mini PCI Express slot at a 45 degrees angle until the gold-plated connector
on the edge of the module completely disappears inside the slot. Then
fasten screws into the mounting holes to secure the module. Please be
noted that you have to select the mSATA setting in the BIOS setup menu.
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.

Installing a GPS Module

1. Insert the GPS module into the GPS slot. Then fasten screws into the
mounting holes to secure the module. Connect the cables between
the module and the motherboard as shown below. The internal dead
reckoning signal cable (circled in red) is only available for the M8L module.
CN3
CN4
