Chapter 4: System Setup

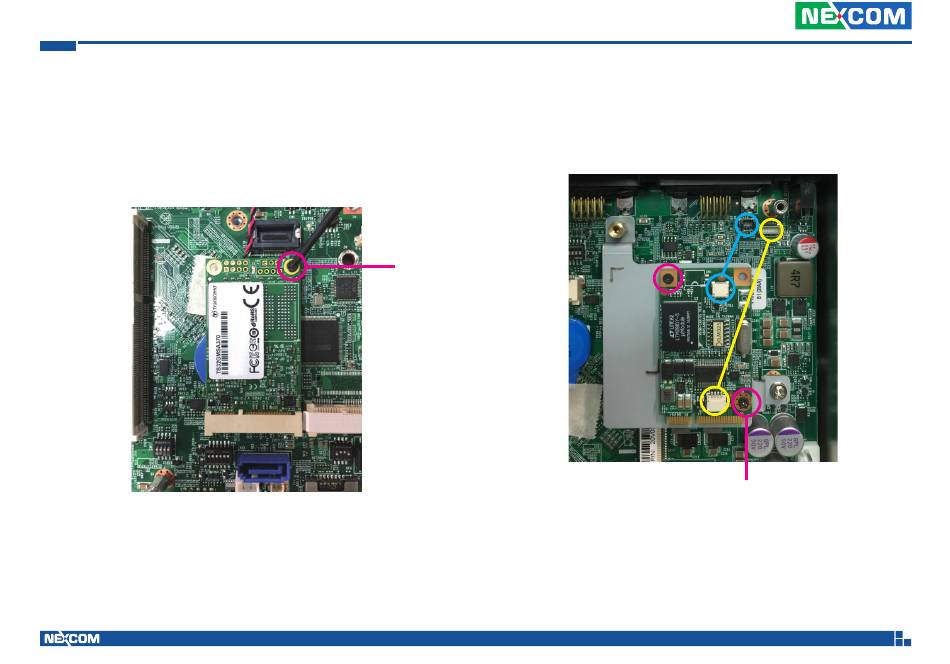

Installing an mSATA Module

1. Locate the mSATA slot (CN8). Insert the module into the mSATA slot at
a 45 degrees angle until the gold-plated connector on the edge of the
module completely disappears inside the slot. Then fasten a screw into
the mounting hole to secure the module.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.

Installing a J1708/J1939 Module on Bracket

1. Locate the bracket above the RAM slot. Place the module on the bracket
then fasten screws into the mounting holes to secure the module.
Mounting
screw
28
Mounting
screw
