Chapter 4: System Setup

Installing a Wi-Fi/mSATA Module (Mini-PCIe)

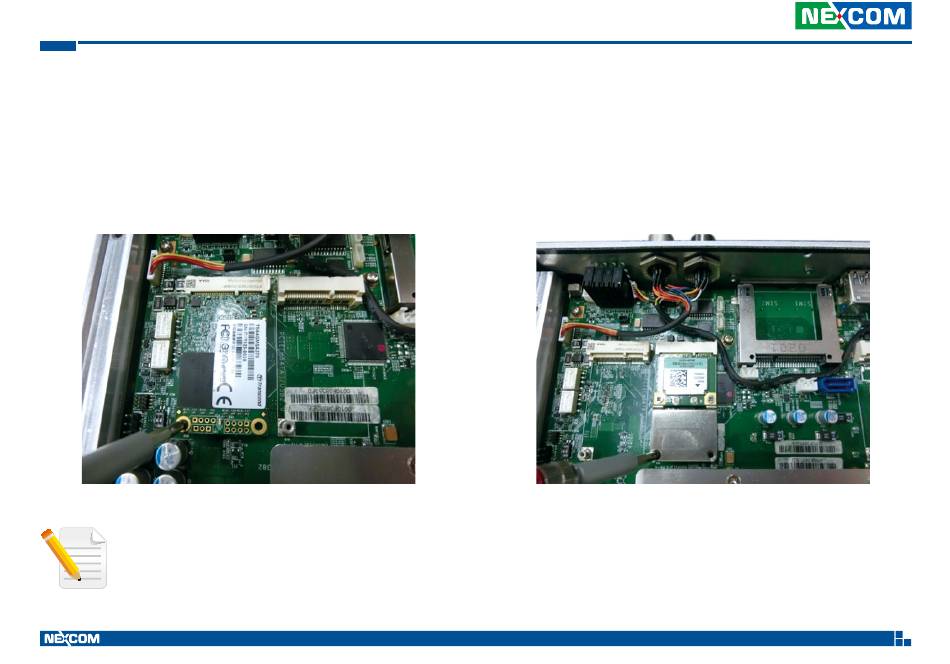

1. Locate the mini PCI Express slot (CN16 and CN18). Insert the Wi-Fi/mSATA
module into the mini PCI Express slot at a 45 degrees angle until the
gold-plated connector on the edge of the module completely disappears
inside the slot. Then fasten a screw into the mounting hole to secure the
module.
mSATA Module
Please be noted that you have to select the mSATA setting in
the BIOS setup menu for CN18.
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
39
Wi-Fi Module
