Chapter 2: Jumpers and Connectors

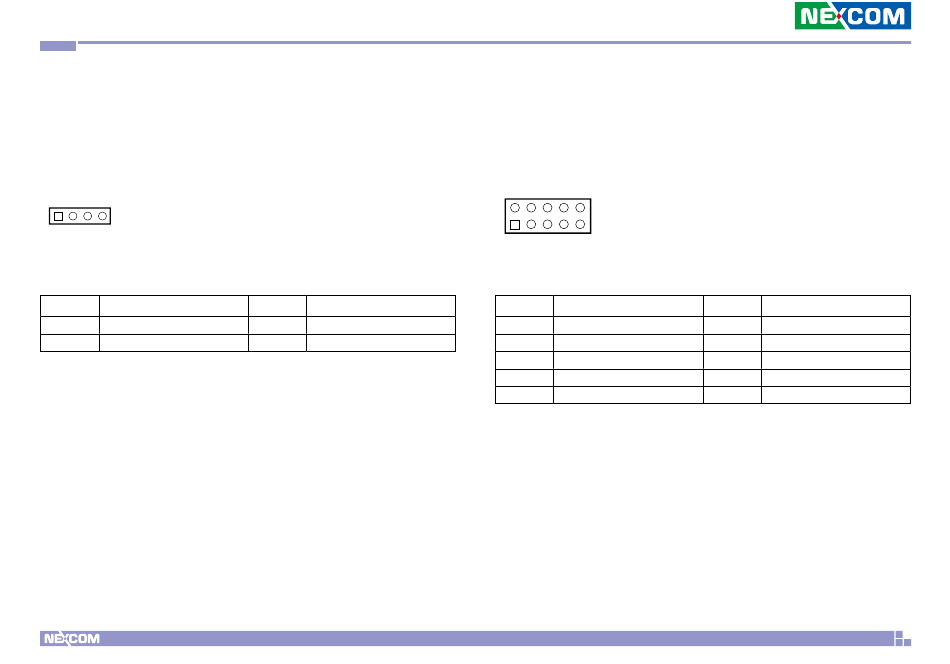

Line-out Connector

Connector type: 1x4 4-pin header, 2.0mm pitch
Connector location: LINE_OUT
1 4
Pin Definition
1 LOUT_L
3 LOUT_JD
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 LOUT_R

USB Connector

Connector type: 2x5 10-pin header
Connector location: J2
2 10
1 9
Pin Definition
1 +5V_USB2_P45
3 S_USB2DN4
5 S_USB2DP4
7 GND
9 GND
16
Pin Definition
2 GND
4 GND
6 S_USB2DP5
8 S_USB2DN5
10 +5V_USB2_P45
