Chapter 3: Jumpers and Connectors

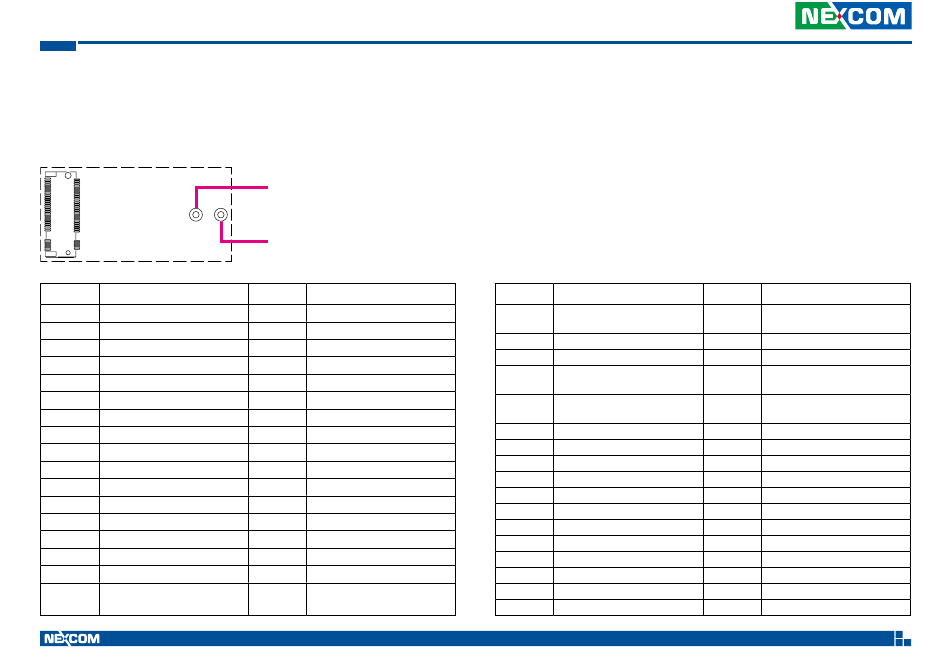

M.2 3042/3050/3052 Key B Socket with USB 2.0 + USB 3.2 Gen 2×1 (For LTE/5G NR)
Connector location: CN5
SIM socket: SIM 1-1
SIM socket: SIM 1-2
75 74
1 2
Pin Definition
1 M2A_CONFIG3
3 GND
5 GND
7 USB_P
9 USB_N
11 NC
21 M2A_CONFIG0
23 SMS1_RI_3.5G
25 NC
27 GND
29 USB3_RXN
31 USB3_RXP
33 GND
35 USB3_TXN
37 USB3_TXP
39 GND
PCIE_RXN
41
(NC_BOM Option)
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Screw hole for 3042 LTE modules
Screw hole for 3052/3050 5G modules
Pin Definition
2 +V3.3A
4 +V3.3A
6 M2B1_POWER_OFF#
8 M2A_W1_DIS#
10 WWAN1_LED#
20 WWAN1_BUS_SEL
22 VUSB_DET
24 EM9190_P1
26 M2A_W2_DIS#
28 PLA_S2#
30 UIM1_RST
32 UIM1_CLK
34 UIM1_DAT
36 UIM1_PWR
38 EM9190_P2
40 SIM2_DETECT
UIM2_DAT
42
(NC_BOM Option)
Pin Definition
PCIE _RXP
43
(NC_BOM Option)
45 GND
47 PCIE _TXN (NC_BOM Option)
49 PCIE _TXP (NC_BOM Option)
51 GND
53 PCIE_CLKN (NC_BOM Option)
55 PCIE_CLKP (NC_BOM Option)
57 GND
59 NC
61 NC
63 NC
65 NC
67 P1_3.5G_RST#
69 M2A_CONFIG1
71 GND
73 GND
75 M2A_CONFIG2
33
Pin Definition
UIM2_CLK
44
(NC_BOM Option)
46 UIM2_RST (NC_BOM Option)
48 UIM2_PWR (NC_BOM Option)
W1_PERST#
50
(NC_BOM Option)
PCIE_CLKREQ#
52
(NC_BOM Option)
54 M2A_PEWAKE#
56 M2B1_SM1_D
58 M2B1_SM1_C
60 NC
62 NC
64 NC
66 SIM1_DETECT
68 M2A_SUSCLK
70 +V3.3A
72 +V3.3A
74 +V3.3A
