2.3 Keyboard Introduction

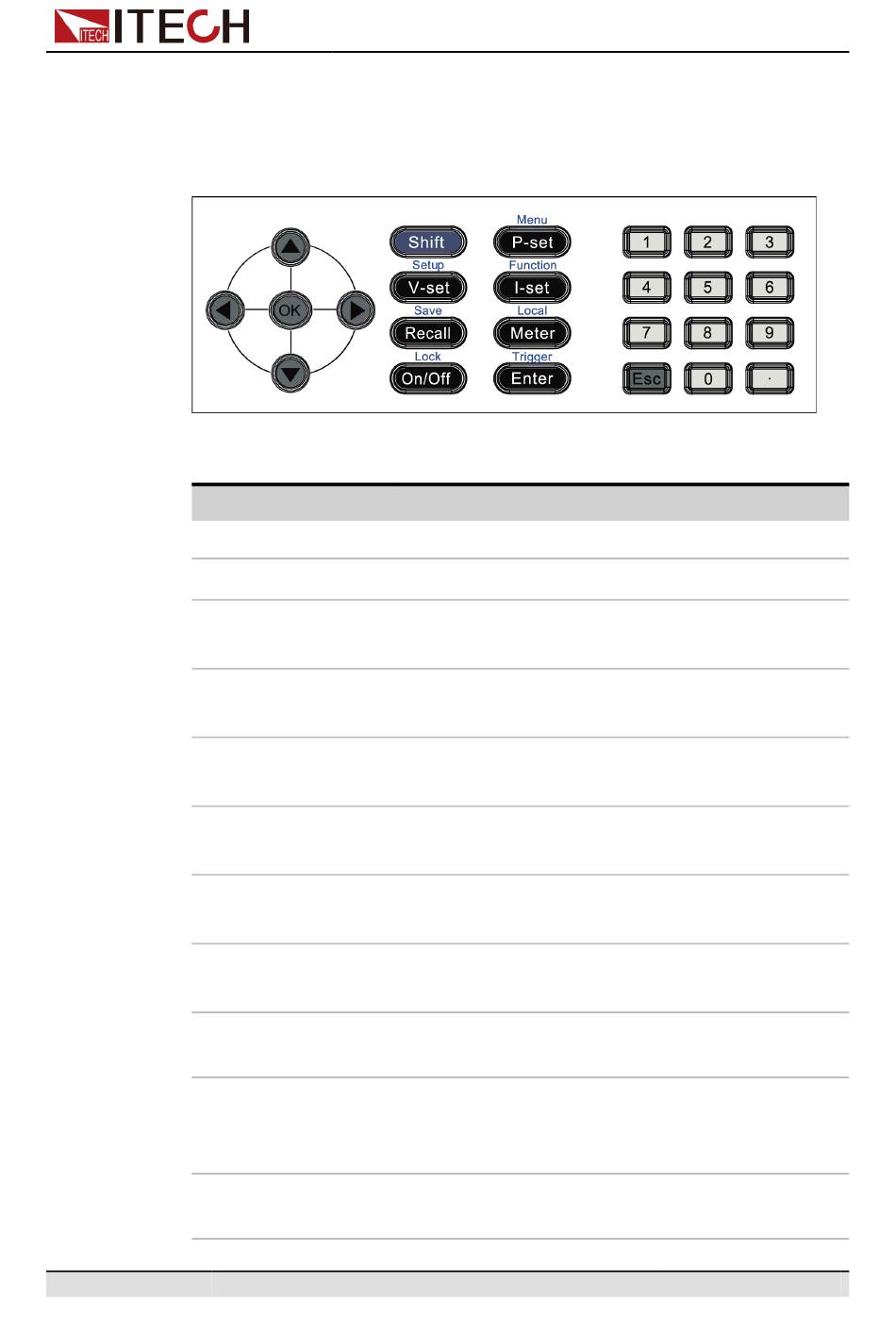

IT6500C series power supply different models are same the key function in front
board, schematic graph as follow.
Table 2–1 Detailed description of keys
Key Name
0-9
[Shift]
[P-set]
[V-set]
[I-set]
[Recall]
[Meter]
[On/Off]
Left and right direction
button
Up and down direction
button
[Enter]
Description
Numeric button
Composite key
Power setting button, used to set the output power
value of power supply
Voltage setting button, used to set the output voltage
of power supply
Current setting button, used to set the output current
value of power supply
Callback button, used to recall a saved setting
parameter
Meter button, used to switch the display between
actual value and setting value
Ouput on/off button, used to control the output status
of power supply
Left and right direction button, used to adjust the
location of the cursor
Up and down direction button, used to select the
items of the menu or increase(decrease) the output
voltage and current value
Confirm button, used to confirm the setting numbers
or functions
