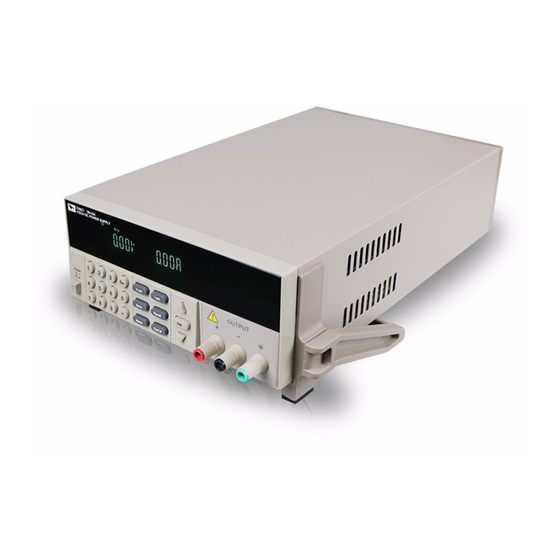

ITech IT6800 Series User Manual

Programmable dc power supply
Hide thumbs Also See for IT6800 Series:
Table of Contents

Advertisement

Quick Links

Programmable DC Power
Supply
IT6800 Series User Manual
Model:
IT6821/IT6822/IT6823
/IT6831/IT6832/IT6833/IT6834
Version: V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT6800 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ITech IT6800 Series

Summary of Contents for ITech IT6800 Series

  • Page 1 Programmable DC Power Supply IT6800 Series User Manual Model: IT6821/IT6822/IT6823 /IT6831/IT6832/IT6833/IT6834 Version: V1.1...
  • Page 2 Notices Warranty Safety Notices © Itech Electronic, Co., Ltd. 2019 The materials contained in this No part of this manual may be document are provided “as is”, and reproduced in any form or by any means (including electronic storage and...

  • Page 3: Warranty

    Warranty ITECH warrants that the product will be free from defects in material and workmanship under normal use for a period of one (1) year from the date of delivery (except those described in the Limitation of Warranty below).
  • Page 4 Failure to comply with these precautions or specific warnings elsewhere in this manual will constitute a default under safety standards of design, manufacture and intended use of the instrument. ITECH assumes no liability for the customer’s failure to comply with these precautions.

  • Page 5: Environmental Conditions

    Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC Waste Electrical and Electronic Equipment (WEEE) Directive This product complies with the WEEE Directive (2002/96/EC) marking requirement. This affix product label indicates that you Copyright © Itech Electronic Co., Ltd.
  • Page 6 With reference to the equipment classifications described in the Annex I of the WEEE Directive, this instrument is classified as a “Monitoring and Control Instrument”. To return this unwanted instrument, contact your nearest ITECH office. Copyright © Itech Electronic Co., Ltd.

  • Page 7: Compliance Information

    Connection of the instrument to a test object may produce radiations beyond the specified limit. Use high-performance shielded interface cable to ensure conformity with the EMC standards listed above. Safety Standard IEC 61010-1:2010/ EN 61010-1:2010 Copyright © Itech Electronic Co., Ltd.

  • Page 8: Table Of Contents

    4.1 Communication Cable ........................17 4.2 Communication Between Power Supply and PC ................18 Chapter5 Specifications........................19 5.1 Specifications ............................. 19 5.2 Supplementary Characteristics ......................21 Appendix ..............................22 Specifications of Red and Black Test Lines ..................... 22 Copyright © Itech Electronic Co., Ltd.

  • Page 9: Quality Certification And Assurance

    Please select appropriate space for installation based on the power supply size. The detailed sizes of series are shown as below. IT6800 power supply IT6821/IT6822/IT6823 /IT6831/IT6832/IT6833 Model Dimension: Width: 214.5mm Height: 88.2mm Depth: 321mm Copyright © Itech Electronic Co., Ltd.

  • Page 10: Safety Precautions

    Inspection and Installation Detailed Dimension Drawing IT6834 Model Dimension: Width: 214.5mm Height: 88.2mm Depth: 345.6mm Detailed Dimension Drawing Copyright © Itech Electronic Co., Ltd.

  • Page 11: Adjustment Of Handle

    Inspection and Installation 1.3 Adjustment of Handle IT6800 series power supplies are equipped with a handle for user to easily carry and place it. The power supply handle may be adjusted based on three methods (as shown in icons below). Be sure that appropriate force is applied to adjust the power supply handle to appropriate position.
  • Page 12 Inspection and Installation not match the voltage, contact the dealer or manufacturer for change. China United States & Europe England Canada & Japan IT-E171 IT-E173 IT-E174 IT-E172 Copyright © Itech Electronic Co., Ltd.

  • Page 13: Chapter2 Quick Start

    DC power supplies with communication interfaces. The combination of bench-top and system features in these power supplies provides versatile solutions for your design and test requirements. Furthermore, ITECH provides free software PV6800 to monitor the power supply in computer, which can bring more convenience for your use.

  • Page 14: Front Panel Introduction

    Number keys and ESC key Function keys UP, DOWN and ENTER key Output terminals and grounding terminal 2.3 Keypad Introduction The key functions and keys of IT6800 series power supply are shown as below picture. Name and the function Power Power on key...

  • Page 15: Display Annunciators

    The power supply is in The power supply is in meter mode. remote mode Shift Error Not in use The power supply has error or fault. Prot Not in use OVP function is enabled Copyright © Itech Electronic Co., Ltd.

  • Page 16: Rear Panel Introduction

    Do not use terminal board without protective grounding. Before operation, be sure that the power supply is well grounded.  To avoid burning out, pay attention to marks of positive and negative polarities before wiring. Copyright © Itech Electronic Co., Ltd.
  • Page 17 Check whether the fuse of electronic fuse is burned out. If yes, change fuse. Detailed steps: 1) Pull out power line and take out the fuse box at power line jack with a small screw driver. As shown below. Copyright © Itech Electronic Co., Ltd.

  • Page 18: Output Verification

    VFD displayed voltage value is the same as the set voltage value, and to check if the VFD displayed current value is nearly zero. Ensure that the voltage can be adjusted from zero to the full rated value. Copyright © Itech Electronic Co., Ltd.
  • Page 19 VFD displayed voltage value is nearly zero. Ensure that the current can be adjusted from zero to the full rated value. Turn off the power supply and remove the short wire from the output terminals. Copyright © Itech Electronic Co., Ltd.

  • Page 20: Chapter3 Functions And Characteristics

    It is very easy for you to set the constant voltage output. You have two solutions to set the constant voltage value.  Solution 1: Step1. Power on the IT6800 series instrument. ▲ ▼ Step2. Press the keys to change the value.

  • Page 21: Constant Current Operation

    Functions and Characteristics  Solution 2: Step1. Power on the IT6800 series instrument. Step2. Press [V-set] key. ▲ ▼ Step3. Use the numeric keys 0 to 9 or keys to change the voltage value. Step4. Press [Enter] to confirm the value.

  • Page 22: Saving And Recalling Operation

    Please check the status of current in SET whether it is zero; if it is set as zero, please modify to non-zero value; if still no output, please connect ITECH directly. Copyright © Itech Electronic Co., Ltd.

  • Page 23: Menu Operation

    If you select OFF, the output voltage will remain as the same volts as the last time you turned off the power supply. Note Default setting is ON and the output voltage is 0 volt. Copyright © Itech Electronic Co., Ltd.
  • Page 24 IT6831, the all-powerful password is “6831”. Note When shipped from factory, there is no password and function keys are unlocked. The start bit of your desired password shouldn’t be 0. Copyright © Itech Electronic Co., Ltd.

  • Page 25: Chapter4 Remote Operation

    USB cable to connect the DB9 interface connector of the DC load and the USB interface connector of computer for the communication. Before using IT-E122, you must install the USB driver (contained in CD or contact ITECH to get). The USB interface will be virtual serial port.

  • Page 26: Communication Between Power Supply And Pc

    You can change the baud rate and communication address from the front panel or from computer, but the data bite, stop bit and parity are the defaults and can’t be changed. DB9 Interface Details Copyright © Itech Electronic Co., Ltd.

  • Page 27: Chapter5 Specifications

    Specifications Chapter5 Specifications This chapter will introduce the main technical parameters of IT6800 series power supply. 5.1 Specifications Model IT6821 IT6822 IT6823 Voltage 0 ~ 18V 0 ~ 32V 0 ~ 72V Rated Value Current 0 ~ 5A 0 ~ 3A 0 ~ 1.5A...
  • Page 28 (0 ° C ~ 40 ° C) Current ＜0.02%+5mV Readback Voltage Temperature ＜0.1%+5mA Current Coefficient Dimension 214.5mm*88.2mm*354.6mm Weight 8.5kg (net weight) Model IT6834 Voltage 0~150V Rated Value ( 0 ° C - 40 ° C) Current 0~1.2A Copyright © Itech Electronic Co., Ltd.

  • Page 29: Supplementary Characteristics

    Option Opt.01: 220VAC ± 10%, 47 to 63 Hz Option Opt.02: 110 VAC ± 10%, 47 to 63 Hz  Maximum input power IT6821 IT6822 IT6823 IT6831 IT6832 IT6833 IT6834 350VA 350VA 350VA 750VA 750VA 750VA 750VA  Cooling type: Intelligent fans Copyright © Itech Electronic Co., Ltd.

  • Page 30: Appendix

    Specifications of Red and Black Test Lines ITECH provides you with optional red and black test lines, which individual sales and you can select for test. For specifications of ITECH test lines and maximum current values, refer to the table below.
  • Page 31 Contact Us Thanks for purchasing ITECH products. In case of any doubts, please contact us as follows: 1. Refer to accompanying data disk and relevant manual. 2. Visit ITECH website: www.itechate.com. 3. Select the most convenient contact method for further information.

This manual is also suitable for:

It6821It6822It6823It6831It6832It6833 ... Show all
