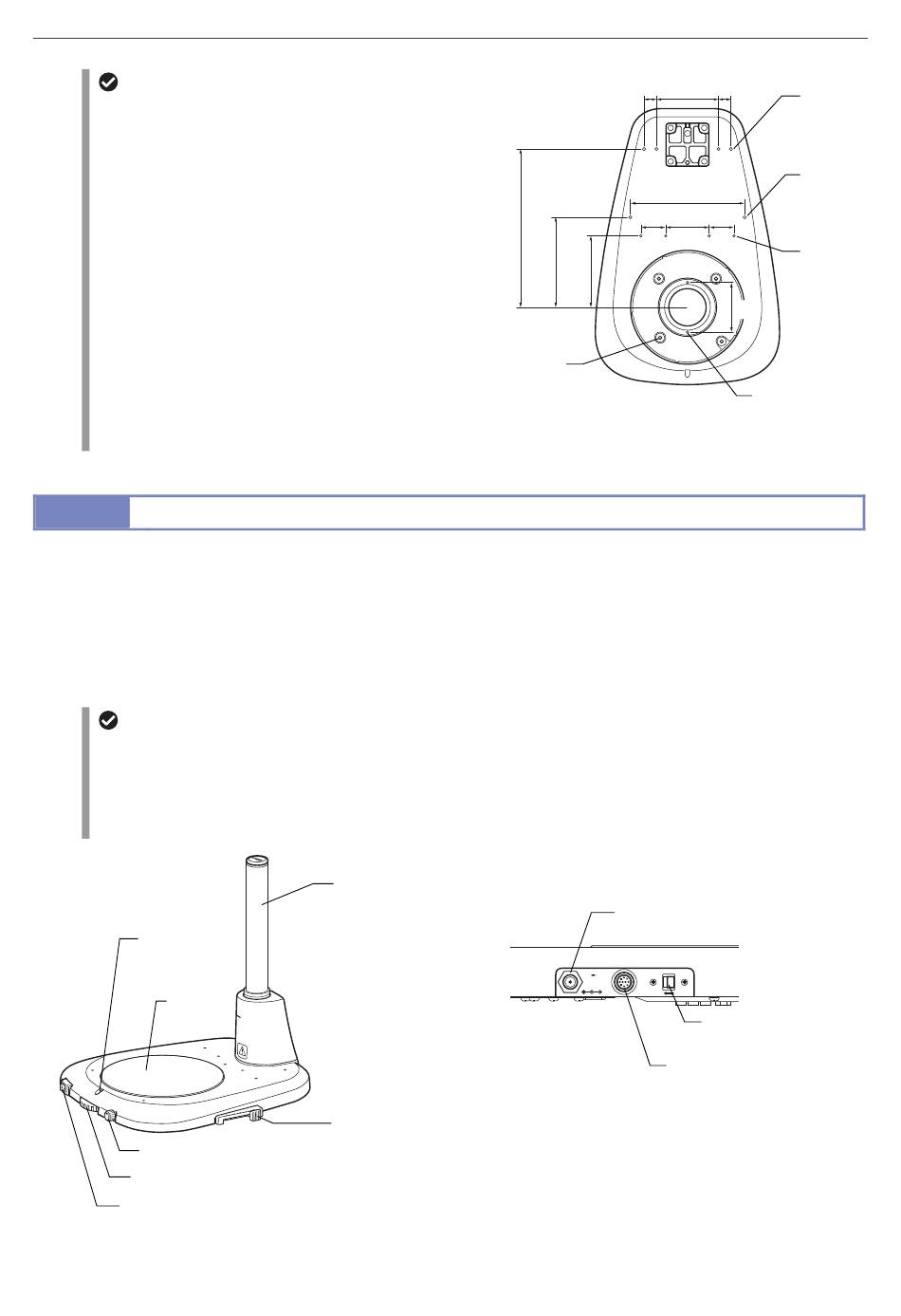

Screw holes for attaching optional devices
The base's top board has screw holes for attaching various
types of devices. Screw holes
to prevent ingress of solution into the base.
(1)
2-M4: Positioned under the stage plate attachment
section of the base. Usable for multiple
purposes.
(2)
4-M6: Positioned under the stage plate attachment
section of the base. Used for attaching the
P-SXY64 XY Stage.
(3)
2-M5: Positioned at the center on the top surface of
the base. Usable for multiple purposes.
(4)
4-M4: Positioned at the center on the top surface of
the base. Usable for multiple purposes.
(5) 4-M5: Positioned at the rear on the top surface of the
base. Used for attaching a device such as the
C-FDF Flexible Double Arm Fiber Illumination
Unit.

P-DSL32 LED Diascopic Illumination Stand

8.3
The P-DSL32 is a stand equipped with diascopic illumination optical systems and the focusing mechanism of the support
pillar vertical movement type.
Combine this stand with an SMZ18 via a P2-FMDN Focus Mount. This stand cannot be used in combination with an SMZ25.
The base with a large glass plate (180 mm dia.) enhances usability and enables easier observation of samples in a container
such as a petri dish.
A dedicated hex driver is located at the top of the support pillar.
Sliding mechanism of the stage plate
The sliding parts are mounted on the base part for mounting the stage plate, which can be slid by loosening the stage
plate fixing screw. There is a clearance gap of approximately 3 mm around the stage plate when the stage is securely set.
The stage plate can be smoothly and finely moved within the clearance gap by loosening the stage plate fixing screw.
This mechanism is useful for positioning, especially for high-magnification observation.
Securely fix the stage plate in place using the fixing screw when this mechanism does not need to be used.
Stage plate
fixing screw
Stage
plate
LED brightness control dial
Focus dial
LED power ON/OFF switch
Chapter 8
Functions and Operations of the Devices
(2) (5)
to are not penetrating
Support pillar
OCC adjustment knob
P-DSL32 LED Diascopic Illumination Stand
255
145
115
(2)
4-M6
Depth 8
Screw holes for attaching optional devices
INPUT
12VDC ,
3.5A
Left side of the base
112
20 100 20
184
40 70 40
80
(1)
2-M4
AC adapter input terminal
CTRL
CTRL
ON OFF
LED brightness control
selection switch
LED brightness control
terminal
(5)
4-M5
Depth 7
(3)
2-M5
Depth 7
(4)
4-M4
Depth 6
