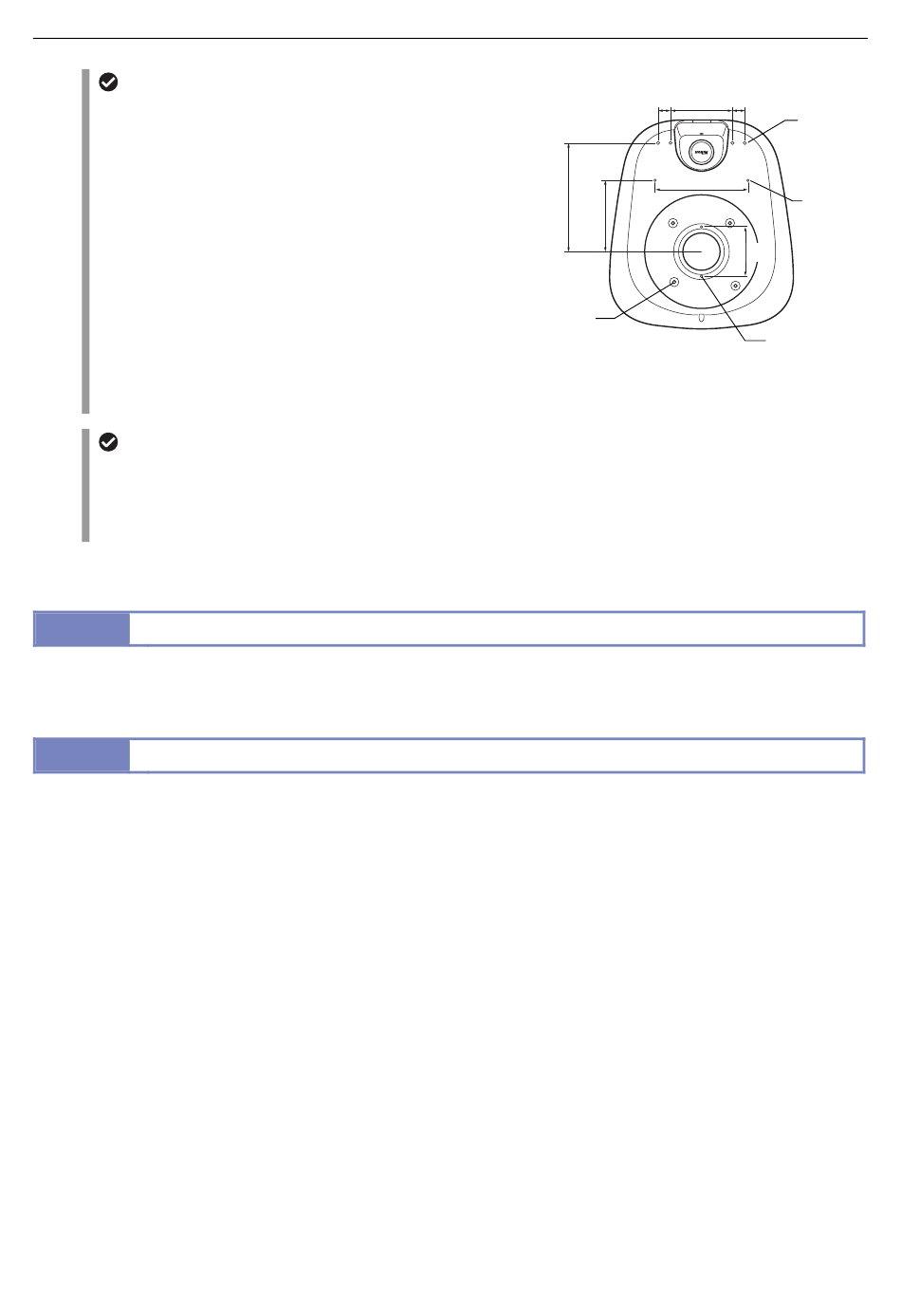

Screw holes for attaching optional devices

The base's top board has screw holes for attaching various

devices. Screw holes (2) to (4) do not go right the way

through to prevent liquid penetrating into the base.

(1)

2-M4:

Positioned under the stage plate attachment

part of the base. Usable for multiple purposes.

Used for attaching a Circular Floating Stage 2

or a C-TRS Tilting Stage.

(2)

4-M6:

Positioned under the stage plate attachment

part of the base. Used for attaching a P-SXY64

XY Stage.

(3)

2-M4:

Positioned at the center on the top surface of

the base. Usable for multiple purposes.

(4)

4-M5:

Positioned at the rear on the top surface of the

base. Used for attaching a C-FDF Flexible

Double Arm Fiber Illumination Unit (via a

C-FIDH Fiber Holder).

Exchange for a C-EP support

The support pillar length is 100 mm longer than

standard when the original support pillar for this stand is

exchanged for a C-EP support. This is useful for

attaching the focus mount to a high position.
