2.5. Data and Power Ports
The TRIUMPH-VS receiver has the following ports (Figure 7):
• Power – used to connect the receiver to an external power source. This port can also be used to
charge the batteries.
• Ethernet – used to connect the receiver to local network.
• USB WIN – used for high-speed data transfer and communication between the receiver and an
external device by synchronizing with Justin Link.
• USB INT – USB port for connecting NetView software to the GNSS board.
• Ant – used for external GNSS antenna connection.
• UHF – used for external UHF antenna connection.
• Ext. Frq/1PPS/Event – used for external devices connection for input/output special signals.
Power
USB 1
USB 2
Ethernet

2.6. Two Cameras

Two integrated 3 megapixel cameras (on the front and on the bottom) are used for taking pictures of
surveyed objects or survey sites (front) and for centering the receiver on the point (bottom).
14
Camera

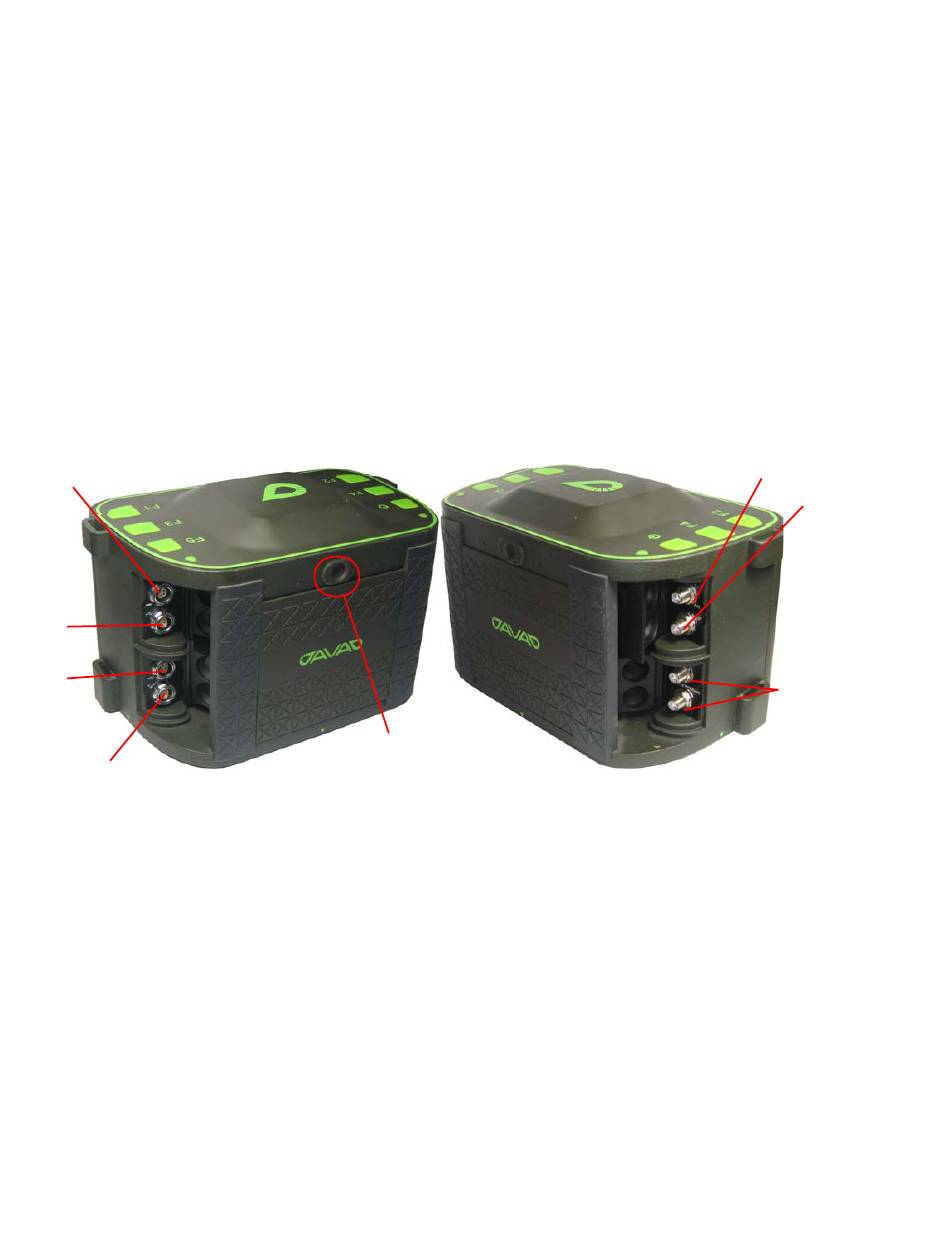

Figure 7. TRIUMPH-VS Ports
Ant.
UHF
Ex. Freq./
1 PPS/
Event
