Base and Rover Setup
Base Station Configuration
6. Repeat the steps described on page 32 (apply all settings to TCP server). Enter antenna
parameters, mounting method, duration, base station position, etc.).
7. Ensure the SIM card is registered in network and has IP-address. Tap GSM status icon on the
screen's top, wait until SIM card will be registered in network. It should be: SIM card READY;
Network REGISTERD.
8. Tap again Communication Network Services TCP server and check IP address. Write it down
to use on in the rover side.
9. Tap Apply on all screens, then return to Action screen (by pressing Action button).
10. To disable Base station, after finishing the work, tap SettingsGNSSTransmit Data (Base), and
set GSM modem format to None. Otherwise the base station operation will continue.
38

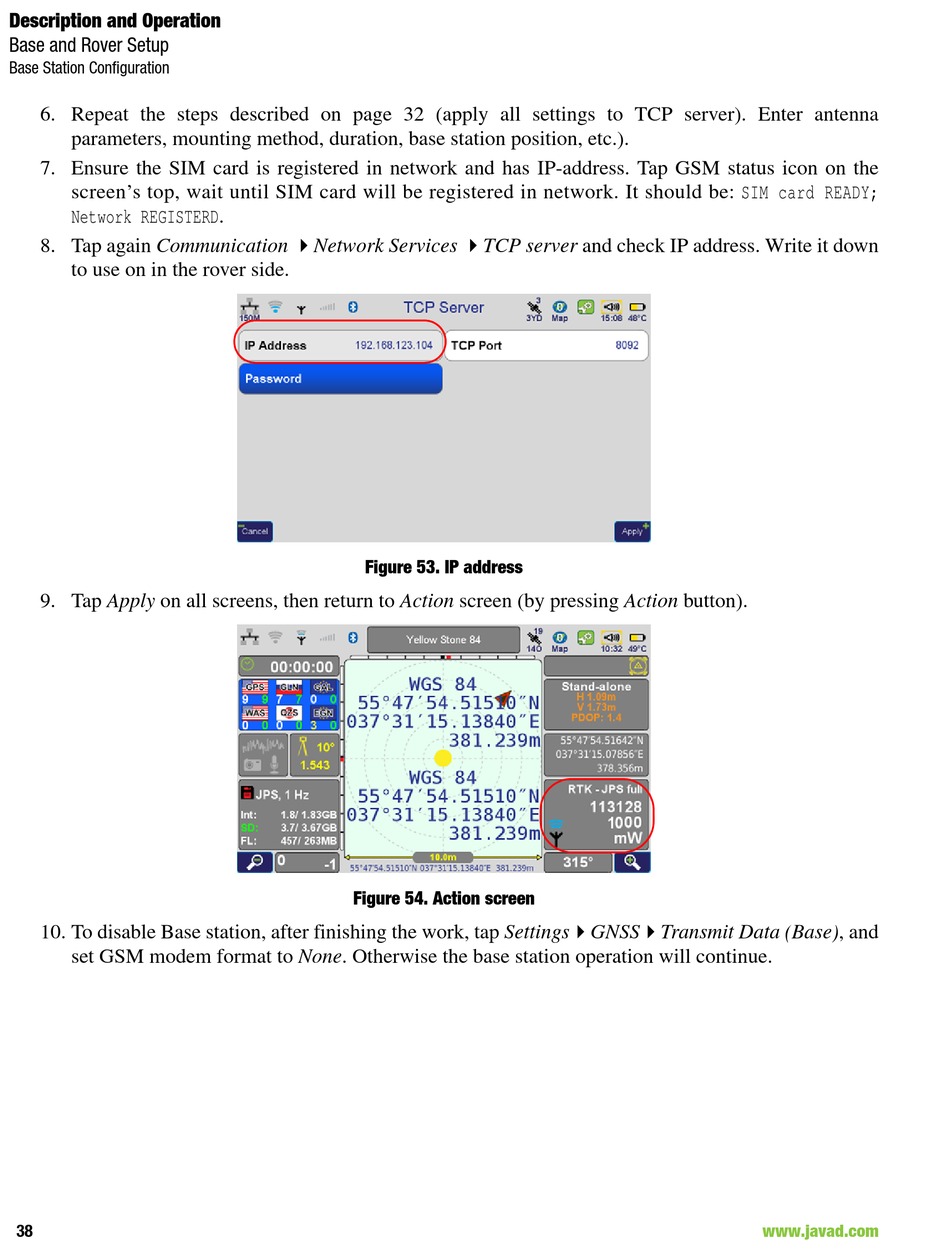

Figure 53. IP address
Figure 54. Action screen
