Javad TRIUMPH-VS Operator's Manual page 85

Touchscreen
Buttons
Enunciators
Voice recording
Audio Output
Photo camera
IMU
Compass
Power
Battery
Operation Time
External Power Input
Charging
Connector specifications
Power
The power connector is a sealed receptacle (Figure A-1) ODU p/n G80F1C-T05QF00-0000.
www.javad.com
Sealed resistive touchscreen,
Fingerprint-resistant oleophobic coating
Four-way directional Navigation button
Standard key functions include:
Home - main screen
FN -action button
-/+ - Cancel (Zoom -)/Accept (Zoom +)
Enter (Ok) button - activates enter function
Five user programmable buttons
On/Off button
Three LEDs: battery charging status, battery status, sleep
mode
integrated
integrated
Two. 3 Megapixels
integrated
integrated
Intelligent, rechargeable, lightweight Li-Ion battery pack,
63.0 Wh (nom.). Battery easily changed in field without tools
Operates no less than 9 hours on one charge
10 to 30 V power input connector for charging or direct
power input
Power management notifies user when battery needs
charging and protects battery from overcharging
Charges in 3 to 5 hours
2
3
1
4
5

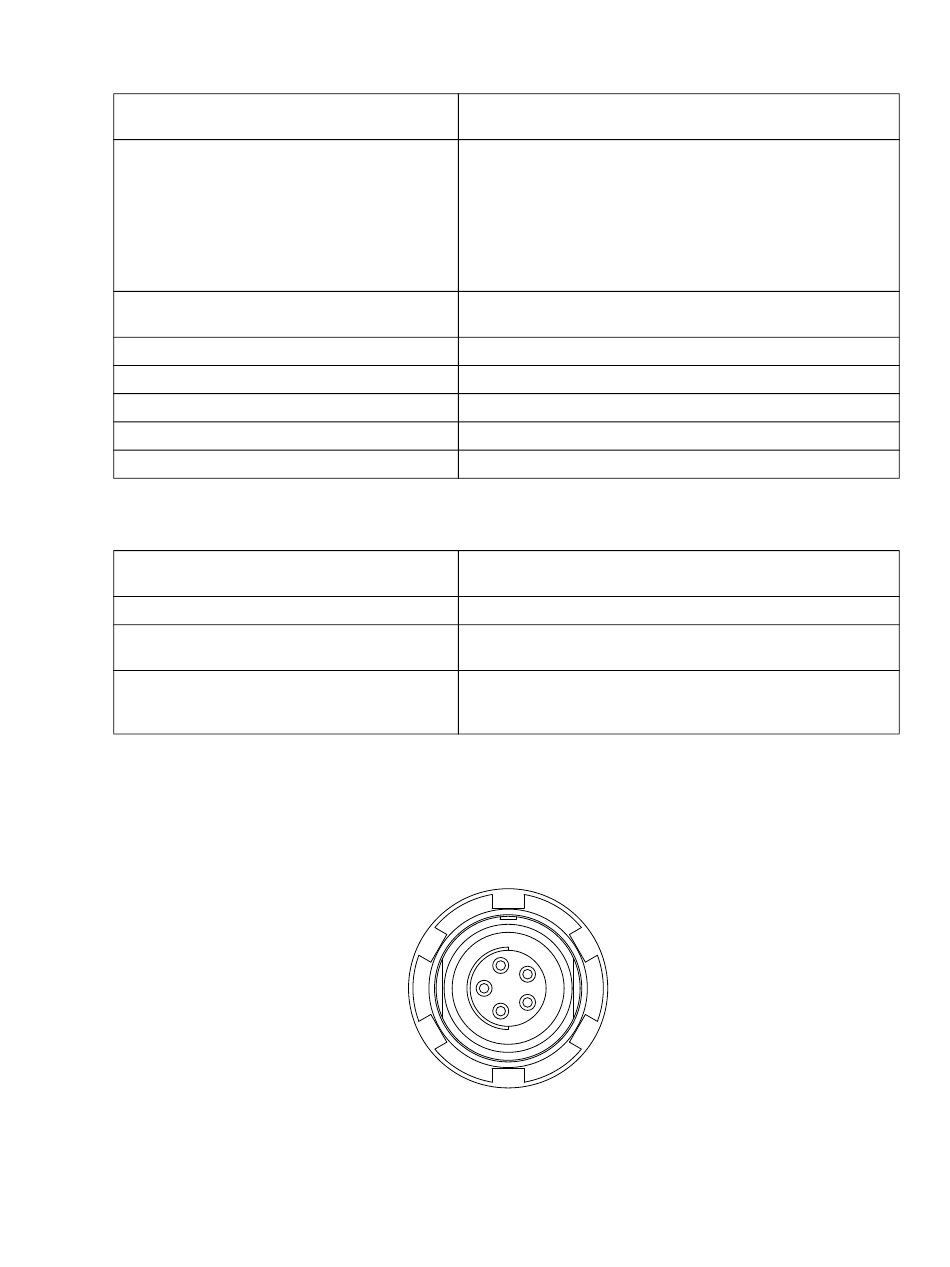

Figure A-1. Power connector
Specifications
85
