Description and Operation
Base and Rover Setup
Base Station Configuration

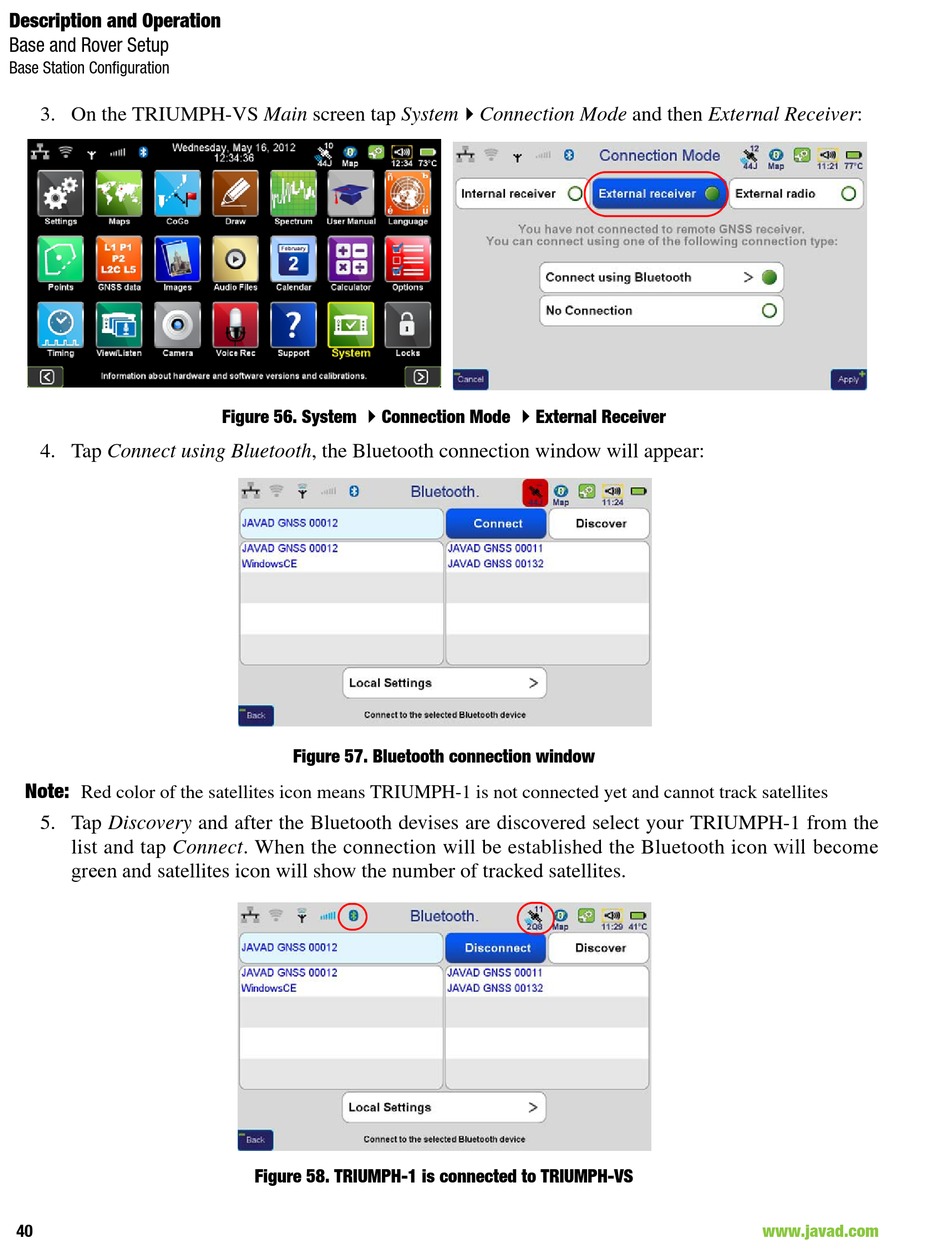

3. On the TRIUMPH-VS Main screen tap SystemConnection Mode and then External Receiver:
4. Tap Connect using Bluetooth, the Bluetooth connection window will appear:
Note:
Red color of the satellites icon means TRIUMPH-1 is not connected yet and cannot track satellites
5. Tap Discovery and after the Bluetooth devises are discovered select your TRIUMPH-1 from the
list and tap Connect. When the connection will be established the Bluetooth icon will become
green and satellites icon will show the number of tracked satellites.
40

Figure 56. System Connection Mode
Figure 57. Bluetooth connection window
Figure 58. TRIUMPH-1 is connected to TRIUMPH-VS

External Receiver
