2.3. Quick Access Buttons and LEDs
The buttons allows the quick access to Home screen, choosing and opening the applications. LEDs show
the battery level, charging status and sleep mode.
Navigation
Action
screen
Cancel
(Zoom -)
• Navigation - Four-direction button for easy page navigation without touching the screen.
• Action screen - Quick access to Action screen.
• Cancel (Zoom -) - Decline the action or scale down for example map.
• Enter (OK) - Accept the changes in parameter's configuration.
• Home - Quick return to the Home screen.
• Accept (Zoom +) - Accept the action or enlarge for example map or image.
On/Off
Sound down
To map
• The On/Off (power) button turns the receiver on and off.
• Five user programmable buttons are used for quick access to the saved receiver configurations for
different tasks.
12

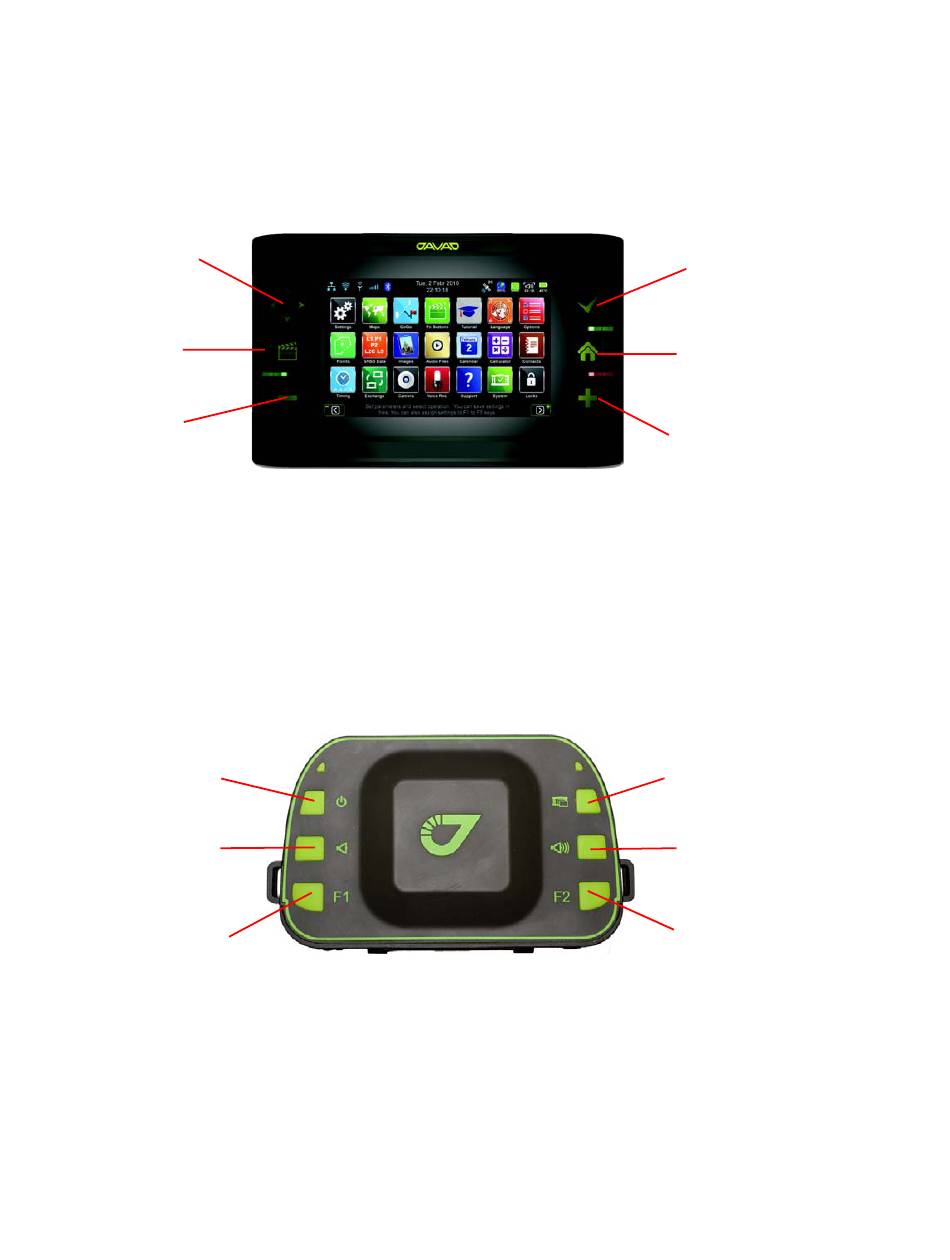

Figure 3. Buttons
Figure 4. User programmable buttons and On/Off button
Enter (OK)
Home
Accept
(Zoom +)
Snap
screenshot
Sound up
To Actions
