Description and Operation
Operation
Mounting Method
To select the mounting method, follow the steps:
1. Tap SettingsMounting Method.
2. Select the desired mounting method (Figure 16 on page 22)
Note:
The mounting method is effective only when the internal antenna is used.
To use inclinometers and compass corrections select the appropriate check marks.
To center the receiver when Hold on Hand mounting method is selected, double tap on the screen center
to activate the bottom camera.
22

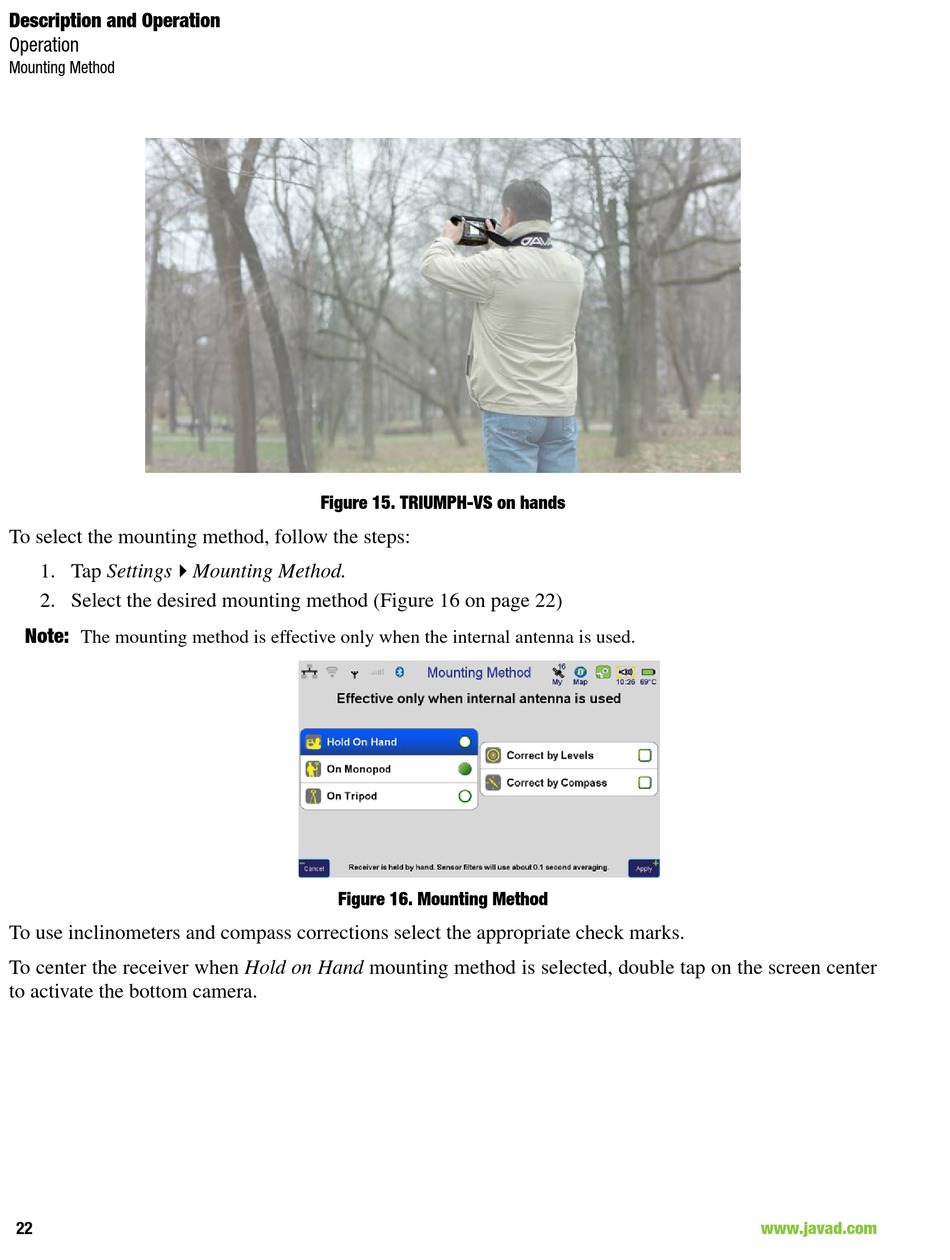

Figure 15. TRIUMPH-VS on hands
Figure 16. Mounting Method
