Description and Operation
Operation in RTK Mode
Command screen
10. Displays the date from the internal compass. By tapping it opens the screen Calibrating Compass.
Also in the Action screen the buttons + and - change the scale of the central window, which helps during
the stake out o by displaying the epochs during surveying.
5.3. Command screen
While all the information is displayed on the Action screen, the surveying management can be performed
on the Command screen. To switch to it, press the FN button once again.

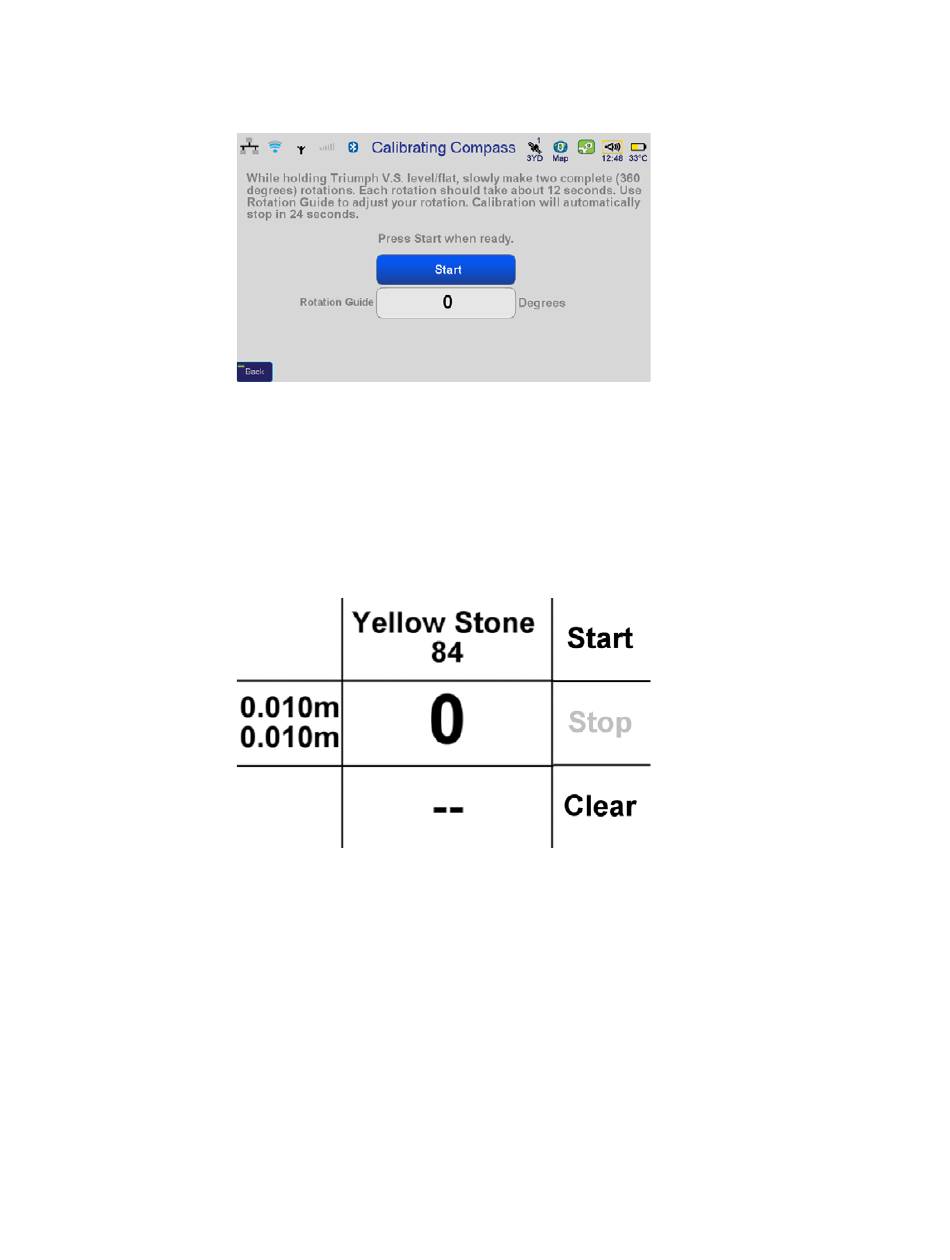

Figure 104. Command screen
This screen is divided into 9 parts with text. On the right there are three buttons associated with the
physical buttons on the right side (Start, Stop, Reset).
