Description and Operation

Stop and Go Survey for Post-processing

Stake out

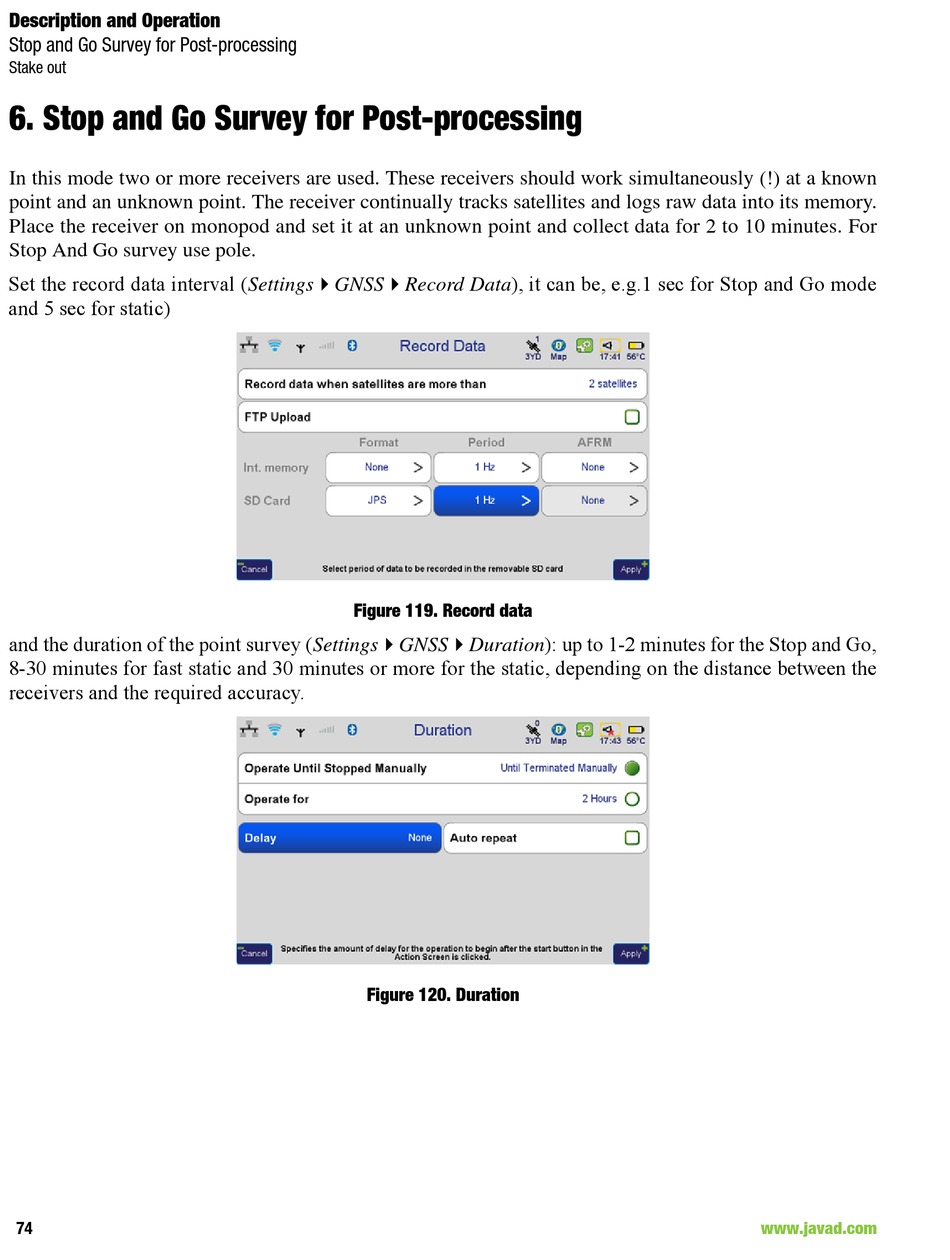

6. Stop and Go Survey for Post-processing
In this mode two or more receivers are used. These receivers should work simultaneously (!) at a known
point and an unknown point. The receiver continually tracks satellites and logs raw data into its memory.
Place the receiver on monopod and set it at an unknown point and collect data for 2 to 10 minutes. For
Stop And Go survey use pole.
Set the record data interval (SettingsGNSSRecord Data), it can be, e.g.1 sec for Stop and Go mode
and 5 sec for static)
Figure 119. Record data
and the duration of the point survey (SettingsGNSSDuration): up to 1-2 minutes for the Stop and Go,
8-30 minutes for fast static and 30 minutes or more for the static, depending on the distance between the
receivers and the required accuracy.
Figure 120. Duration
