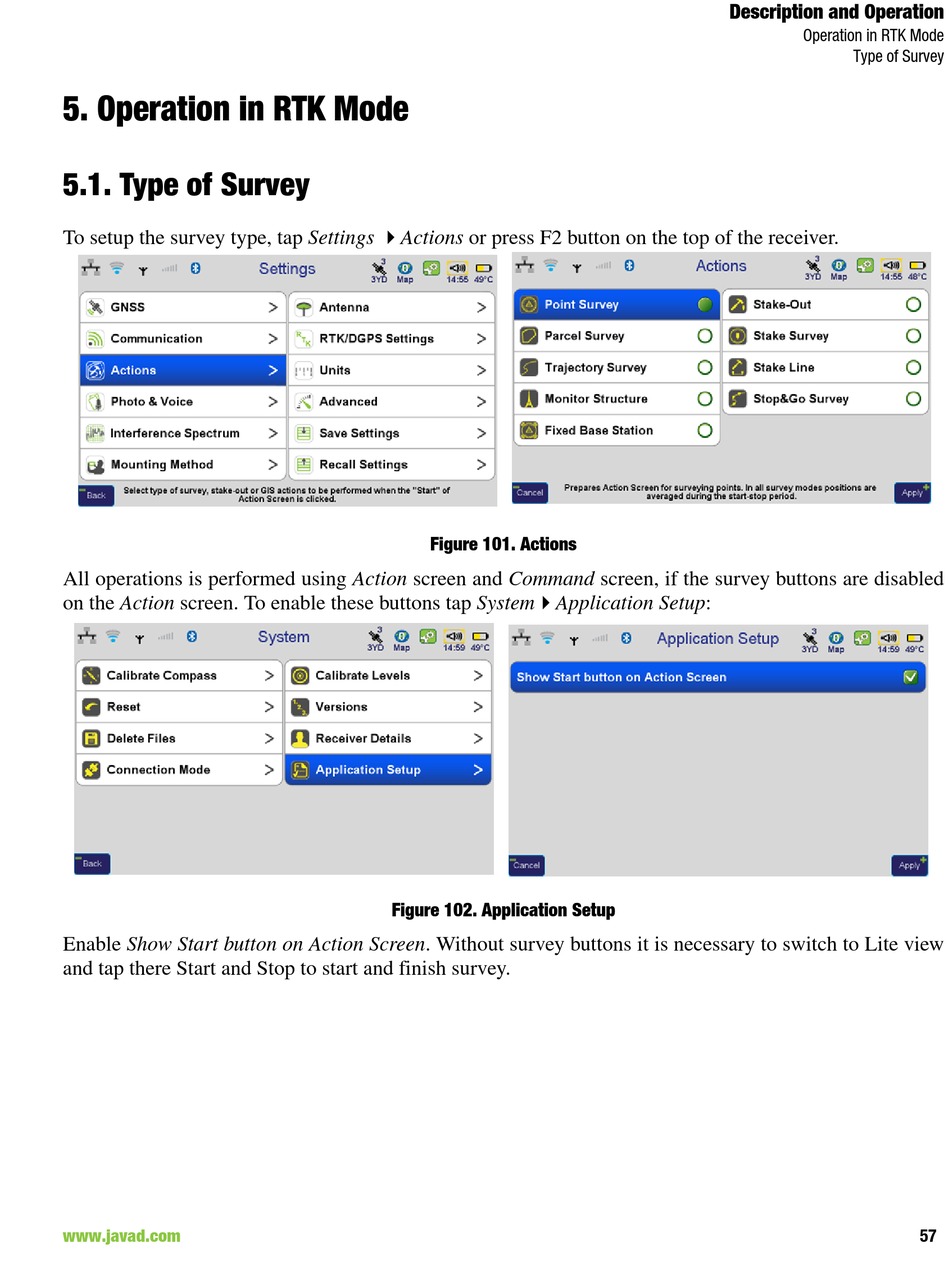

5. Operation in RTK Mode

5.1. Type of Survey

To setup the survey type, tap Settings Actions or press F2 button on the top of the receiver.

Figure 101. Actions

All operations is performed using Action screen and Command screen, if the survey buttons are disabled

on the Action screen. To enable these buttons tap SystemApplication Setup:

Figure 102. Application Setup

Enable Show Start button on Action Screen. Without survey buttons it is necessary to switch to Lite view

and tap there Start and Stop to start and finish survey.
