3. Operation

3.1. Software installation

The data exchange with TRIUMPH-VS can be performed using Justin Link software. It allows running
Triumph-VS media files and editing objects attributes and styles. Although RTK is the main mode for
field positioning, Justin Link is able to improve the position by recalculating base coordinates and GNSS
data post processing.
To connect to Justin Link are needed:
• Active Sync (for Windows XP) - Microsoft software for connecting the receiver to the PC as
mobile device.
• Windows Mobile Device Center (for Windows Vista and Windows XP) - Microsoft software for
connecting the receiver to the PC as mobile device.

3.2. Installing Optional SIM Cards

TRIUMPH-VS is equipped with two SIM card slots, to allow using two SIM cards and switching between
two different cell providers. The SIM card can be purchased at your local cellular phone supply store.
The SIM card must have GPRS support to provide an Internet connectivity in the field, where WiFi is not
available. The SIM card must support Circuit Switched Data to establish the direct communication
between GSM-capable receivers.
Note:
Before SIM card installing in TRIUMPH-VS, it is recommended to remove PIN code using your cell
phone.
1. Ensure the receiver is turned off.
2. Using both hands, gently push the battery pack upward, to remove it. Rest your thumbs against
the receiver case, with other fingers push the battery up.
www.javad.com

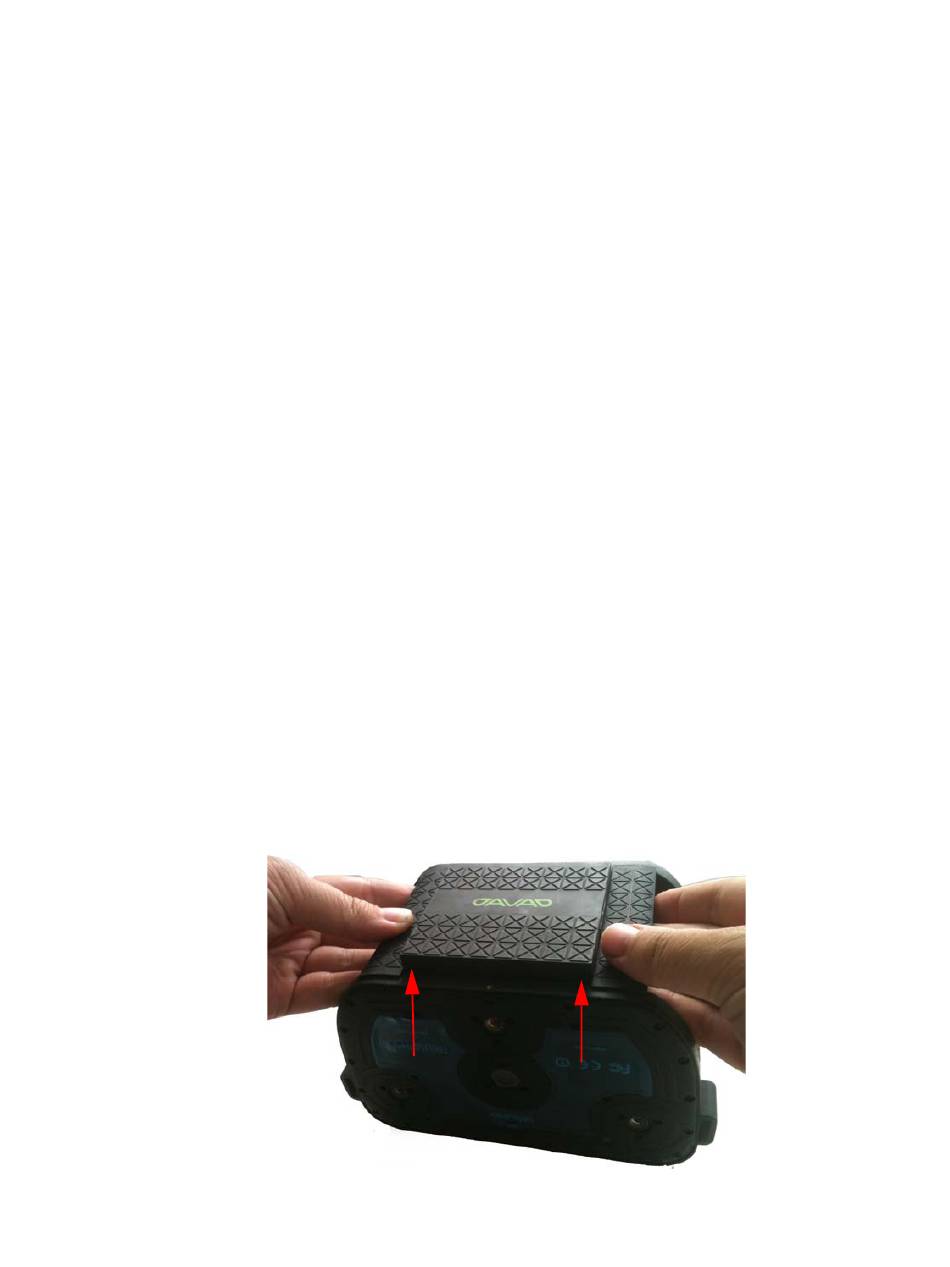

Figure 9. TRIUMPH-VS battery removing
