Description and Operation
Operation
Connecting to Internet
4. The connection will be established and the WiFi status icon will be active in the left top corner
indicating the signal strength.

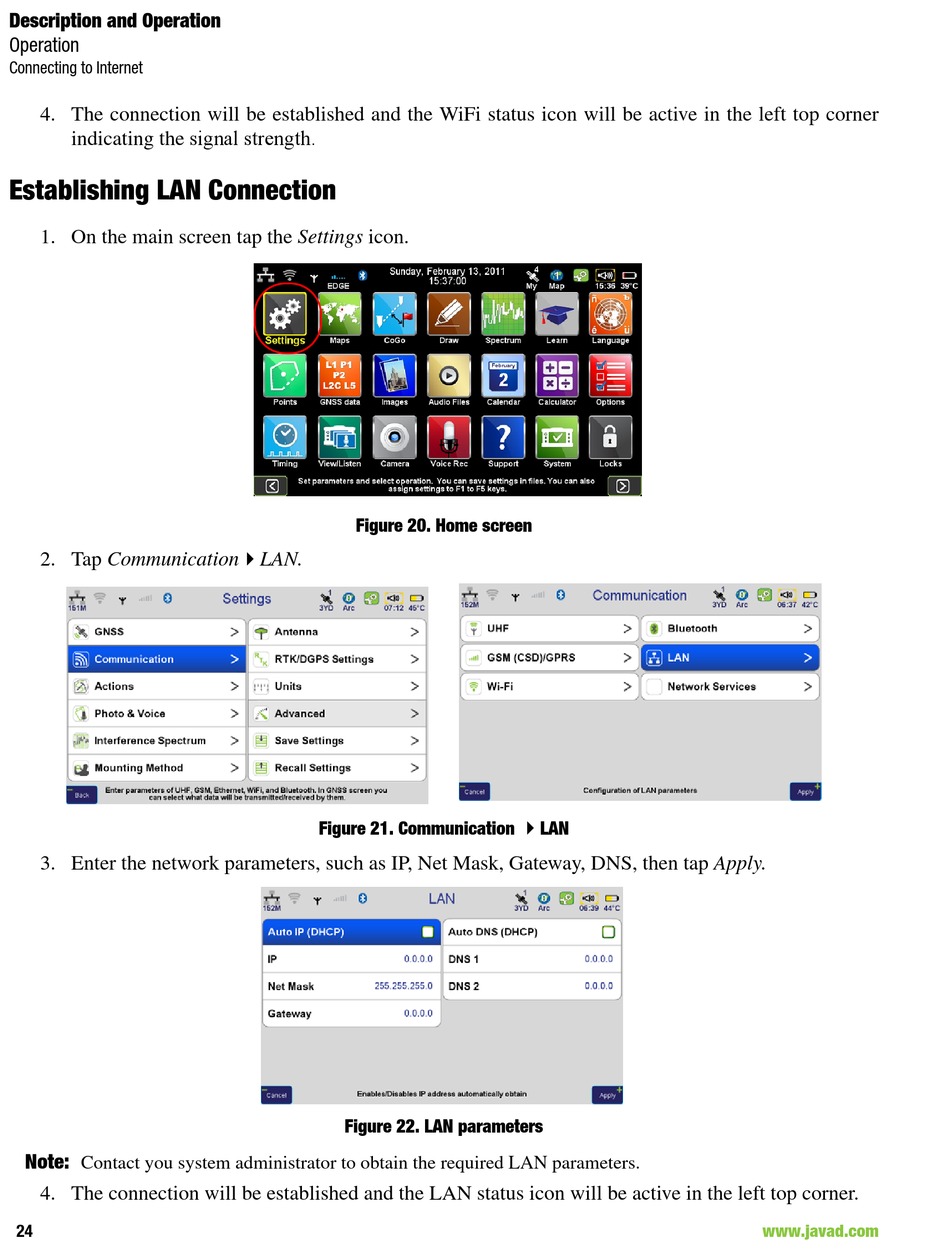

Establishing LAN Connection
1. On the main screen tap the Settings icon.
2. Tap CommunicationLAN.
3. Enter the network parameters, such as IP, Net Mask, Gateway, DNS, then tap Apply.
Note:
Contact you system administrator to obtain the required LAN parameters.
4. The connection will be established and the LAN status icon will be active in the left top corner.
24
Figure 20. Home screen
Figure 21. Communication
Figure 22. LAN parameters

LAN
