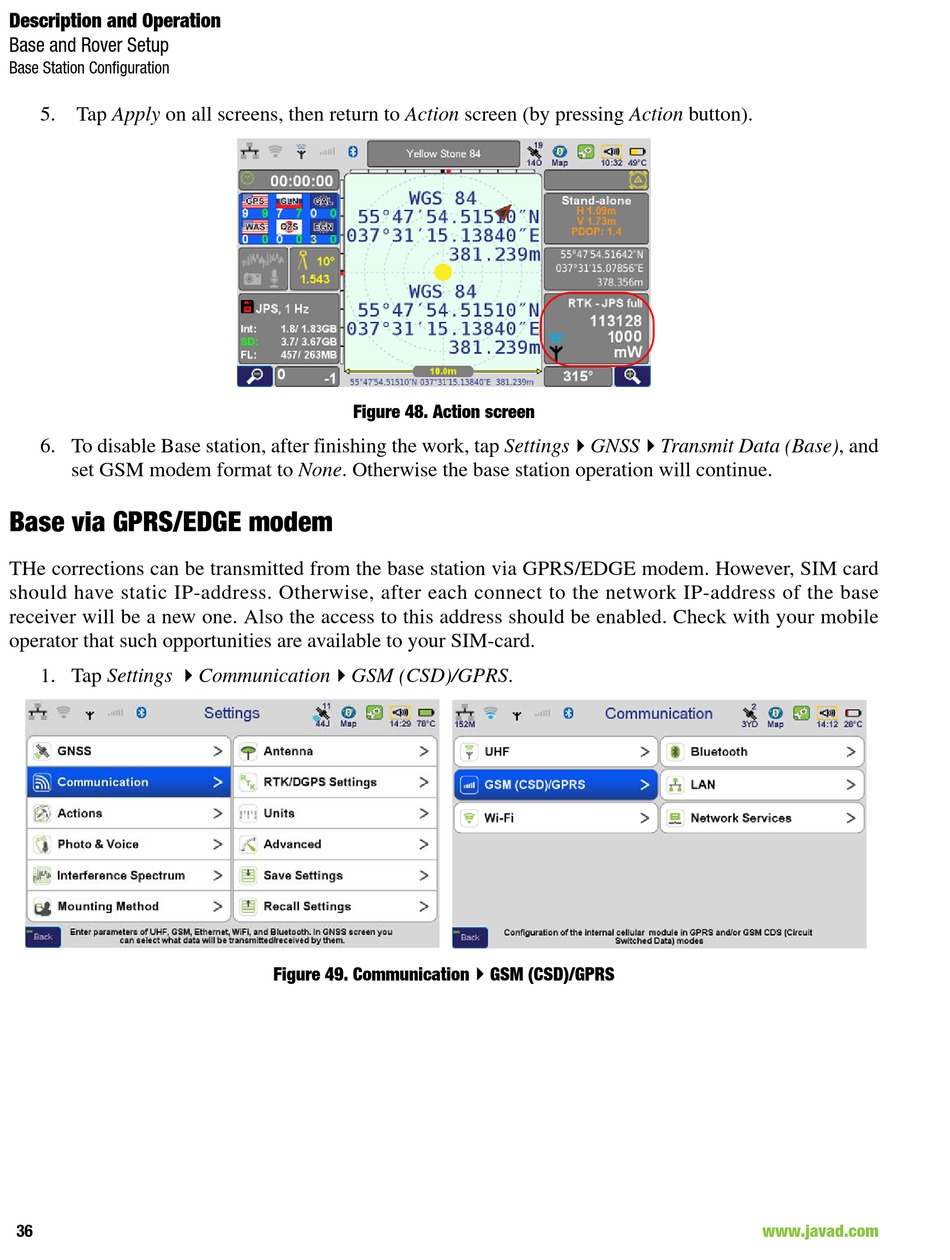

Javad TRIUMPH-VS Operator's Manual page 36

Description and Operation
Base and Rover Setup
Base Station Configuration
5. Tap Apply on all screens, then return to Action screen (by pressing Action button).
6. To disable Base station, after finishing the work, tap SettingsGNSSTransmit Data (Base), and
set GSM modem format to None. Otherwise the base station operation will continue.
Base via GPRS/EDGE modem
THe corrections can be transmitted from the base station via GPRS/EDGE modem. However, SIM card
should have static IP-address. Otherwise, after each connect to the network IP-address of the base
receiver will be a new one. Also the access to this address should be enabled. Check with your mobile
operator that such opportunities are available to your SIM-card.
1. Tap Settings CommunicationGSM (CSD)/GPRS.
36
Figure 48. Action screen
Figure 49. Communication

GSM (CSD)/GPRS
www.javad.com
