Description and Operation
Base and Rover Setup
Rover Configuration
6. Modem is configured now.
7. Tap Settings GNSS. Ensure there is no specified data for transmitting (All Transmit Data (Base)
formats should be set to None).
8. Tap Receive Data (Rover) UHF and select the same corrections type which was selected on the
base:
9. To ensure the rover receives the corrections via UHF, tap on the UHF status icon and check the
LQ and Received parameter. Ensure LQ is 100%, and Received value is on the increase.
50

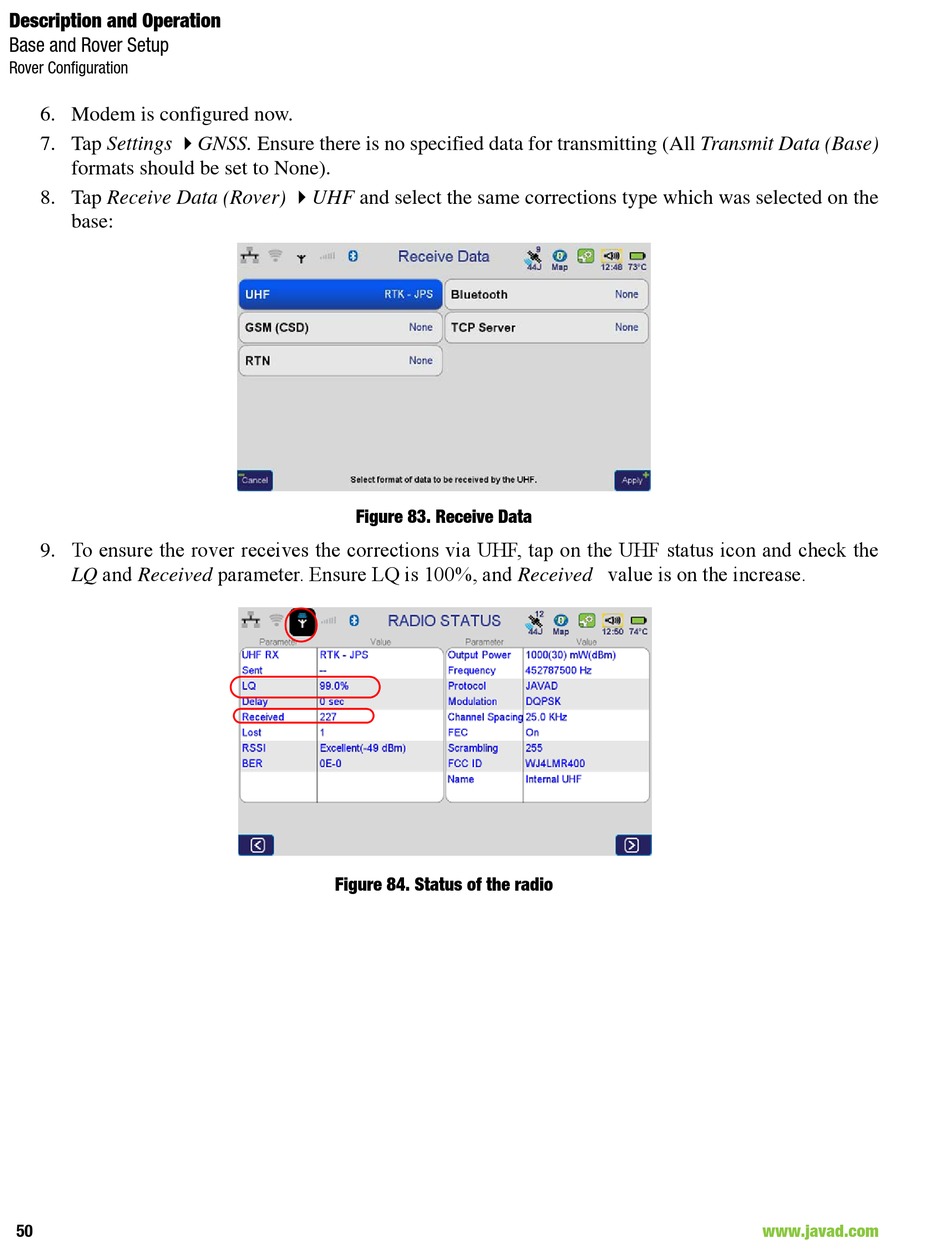

Figure 83. Receive Data
Figure 84. Status of the radio
