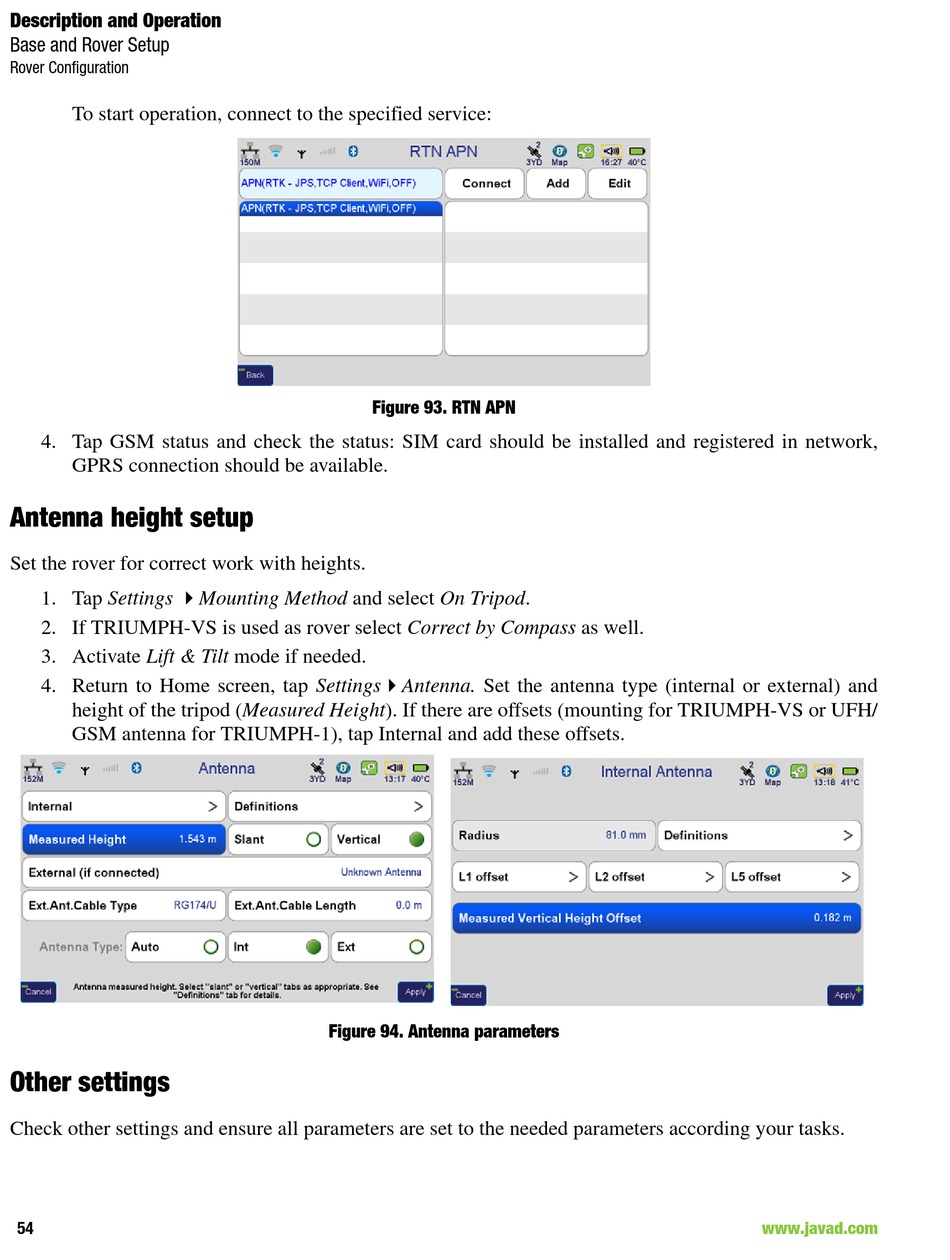

Javad TRIUMPH-VS Operator's Manual page 54

Description and Operation
Base and Rover Setup
Rover Configuration
To start operation, connect to the specified service:
4. Tap GSM status and check the status: SIM card should be installed and registered in network,
GPRS connection should be available.
Antenna height setup
Set the rover for correct work with heights.
1. Tap Settings Mounting Method and select On Tripod.
2. If TRIUMPH-VS is used as rover select Correct by Compass as well.
3. Activate Lift & Tilt mode if needed.
4. Return to Home screen, tap SettingsAntenna. Set the antenna type (internal or external) and
height of the tripod (Measured Height). If there are offsets (mounting for TRIUMPH-VS or UFH/
GSM antenna for TRIUMPH-1), tap Internal and add these offsets.
Other settings
Check other settings and ensure all parameters are set to the needed parameters according your tasks.
54
Figure 93. RTN APN
Figure 94. Antenna parameters
