Description and Operation
Operation in RTK Mode

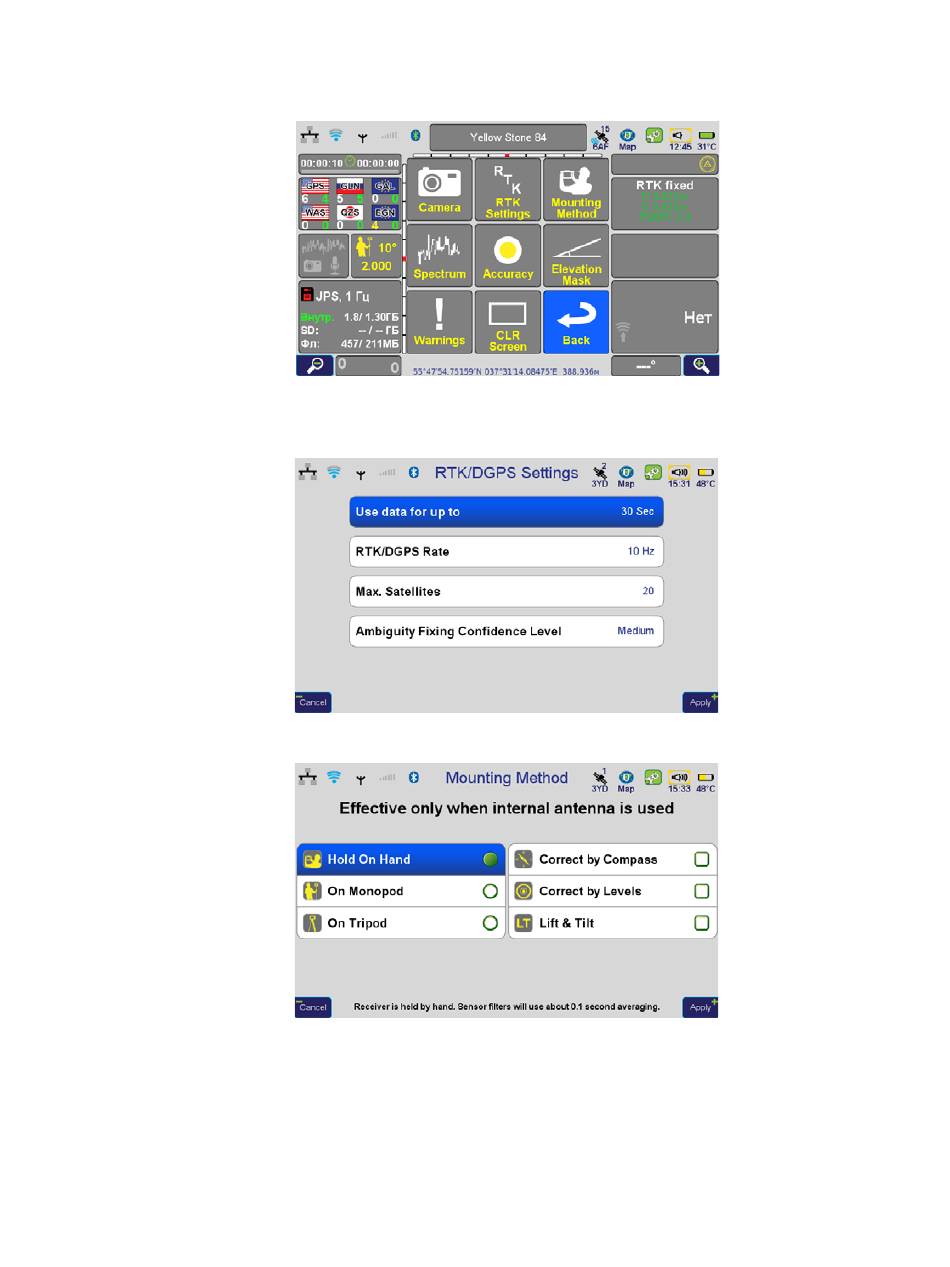

Action Screen
1. This panel shows coordinates and received epochs. By tapping 9 buttons appear:
• Camera - enables the picture from bottom camera, double tapping enables front camera).
• RTK Settings - opens RTK settings window:
• Mounting Method - quick access to Mounting Method window.
www.javad.com
59
