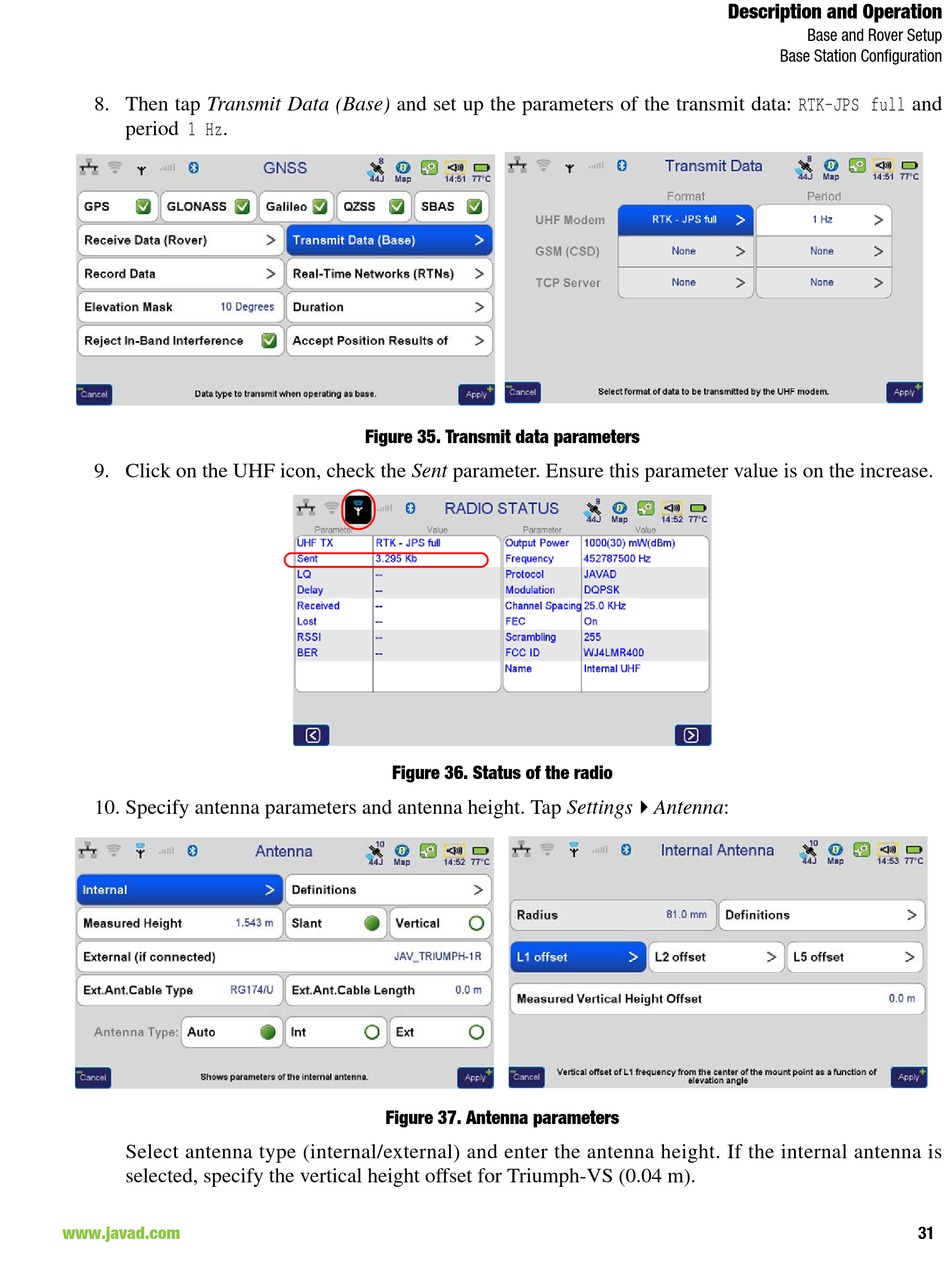

8. Then tap Transmit Data (Base) and set up the parameters of the transmit data: RTK-JPS full and
period 1 Hz.
9. Click on the UHF icon, check the Sent parameter. Ensure this parameter value is on the increase.
10. Specify antenna parameters and antenna height. Tap SettingsAntenna:
Select antenna type (internal/external) and enter the antenna height. If the internal antenna is
selected, specify the vertical height offset for Triumph-VS (0.04 m).
www.javad.com
Figure 35. Transmit data parameters
Figure 36. Status of the radio
Figure 37. Antenna parameters
Description and Operation
Base and Rover Setup
Base Station Configuration
