Triumph-1 as a Base (configured through Triumph-VS)
This configuration example describes how to configure TRIUMPH-1 as a base station using TRIUMPH-
VS as a controller connected to TRIUMPH-1 using Bluetooth.
Note:
Please do not forget to attach the UHF/GSM antenna to TRIUMPH-1.
Attaching Optional UHF/GSM Antenna to TRIUMPH-1
A broadband, rugged, in-building or outdoor antenna designed to service the whole 406-470 MHz UHF
band and GSM quad band. With modest dimensions of 25 mm (OD) x 182 mm (height), this antenna
radiates with a typical peak omnidirectional gain of +1 dBil. Internally, the radiating element is DC
shunted to help protect the transceiver from nearby, but not direct ElectroStatic Discharge (ESD).
The TRIUMPH-1 modem antenna can be mounted on standard poles (5/8-11inches thread). Attached to the
TRIUMPH-1 receiver this antenna gets a part of survey pole, making handling with receiver easy and simple.
TRIUMPH-1 Placement Recommendations
• TRIUMPH-1 should be placed on a stable surface, and antenna should be positioned horizontally.
• Ensure TRIUMPH-1 is placed on a place with maximum satellites visibility (open sky) and
minimum multipath.
• Lift TRIUMPH-1 to the maximum height (to provide maximum transmission range of the
corrections using UHF radio).
Note:
If the radio range is insufficient, it is recommended to use an external radio HPT404BT or HPT435BT.
TRIUMPH-1 as a Base Setup
1. To configure TRIUMPH-1 via TRIUMPH-VS, place TRIUMPH-VS at a distance of no more than
8 meters from the TRIUMPH-1 (to ensure a reliable connection between the Bluetooth devices).
2. Turn on both receivers.
Note:
To return to TRIUMPH-VS's Main screen, press the Home button
TRIUMPH-VS.
Note:
Always tap Apply or press the Apply button
memory.
www.javad.com

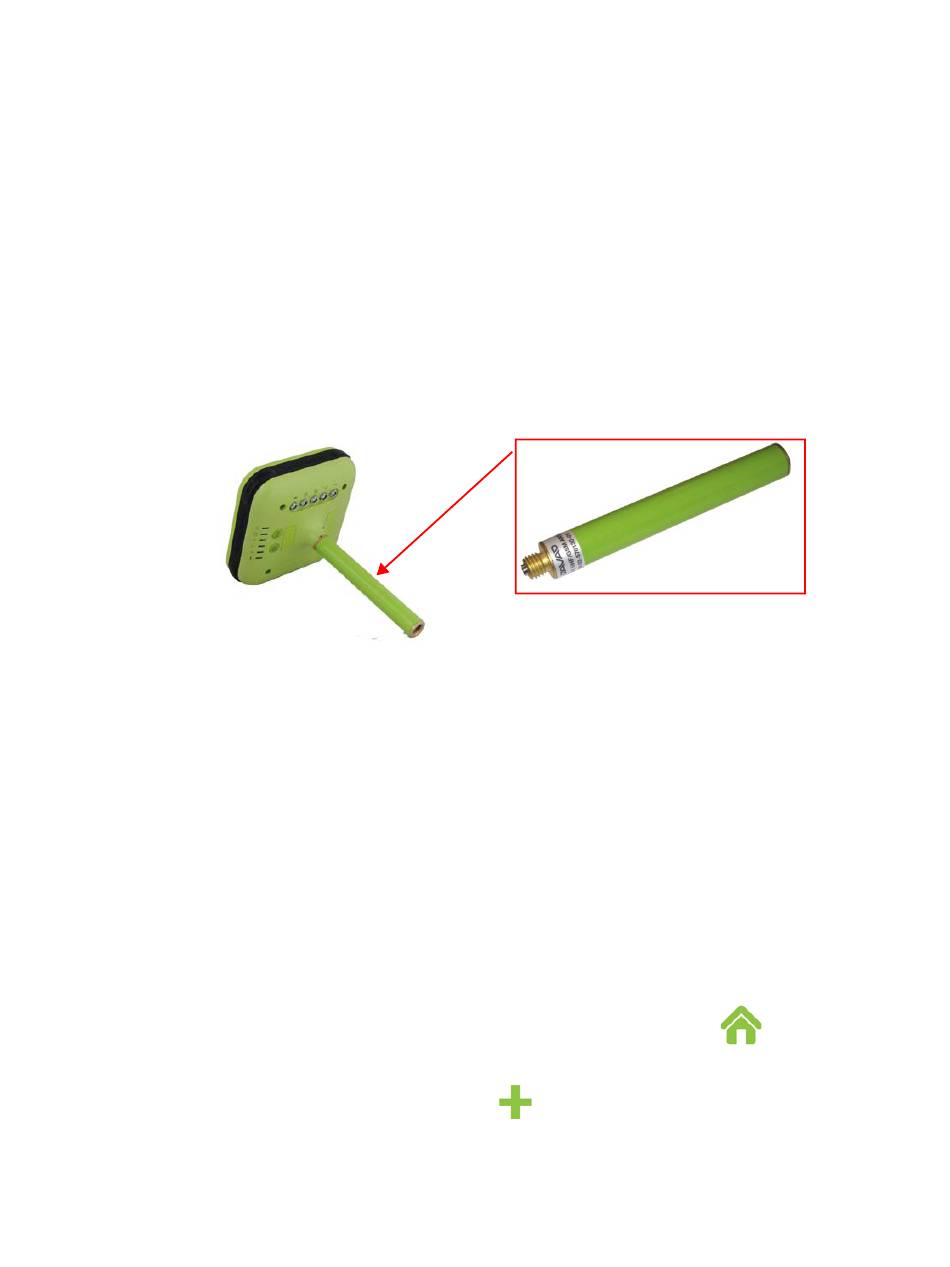

Figure 55. TRIUMPH-1 External UHF/GSM Antenna
