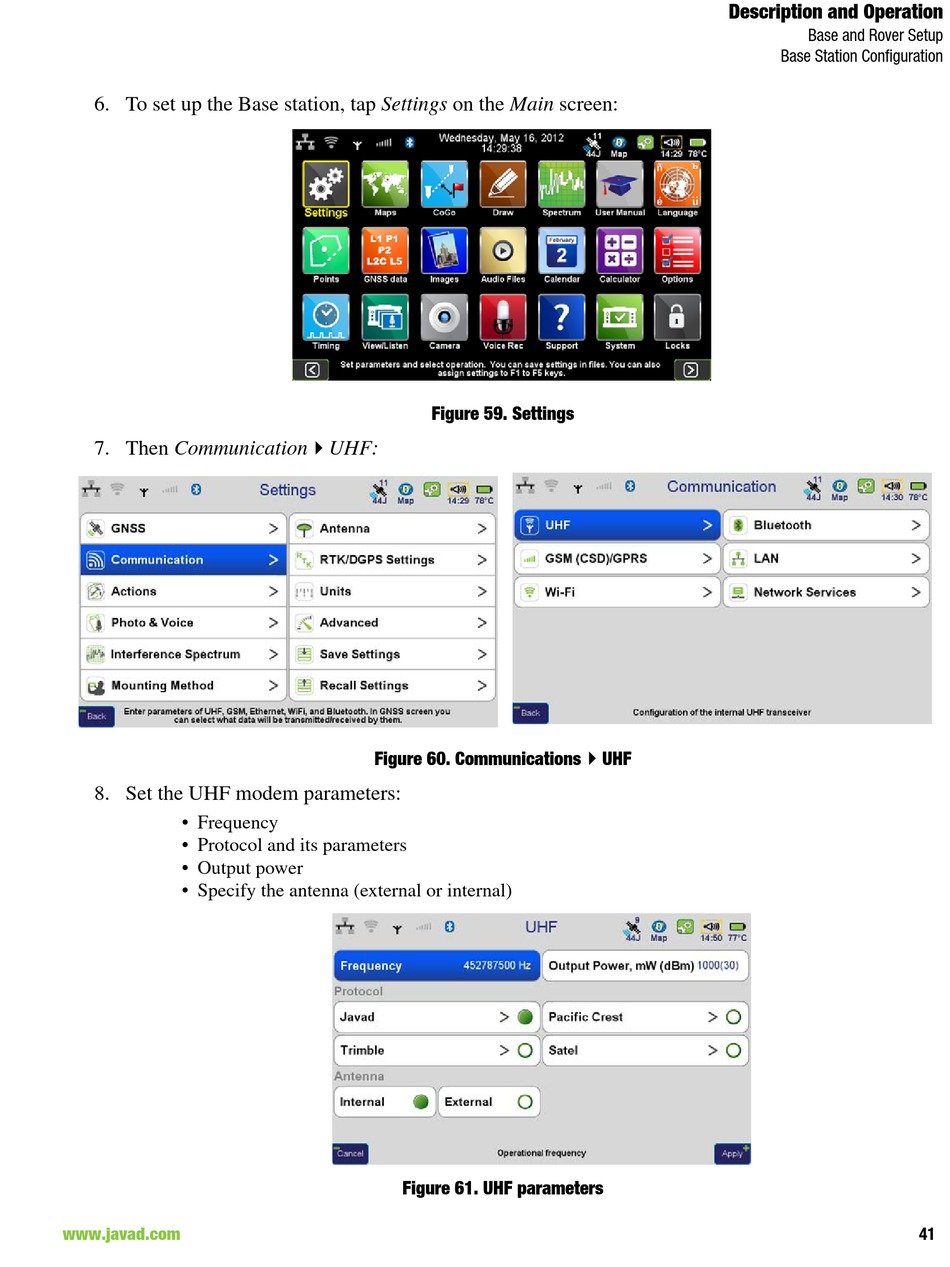

6. To set up the Base station, tap Settings on the Main screen:
7. Then CommunicationUHF:
8. Set the UHF modem parameters:
• Frequency
• Protocol and its parameters
• Output power
• Specify the antenna (external or internal)
www.javad.com
Figure 59. Settings
Figure 60. Communications
Figure 61. UHF parameters
Description and Operation
UHF
Base and Rover Setup
Base Station Configuration
41
