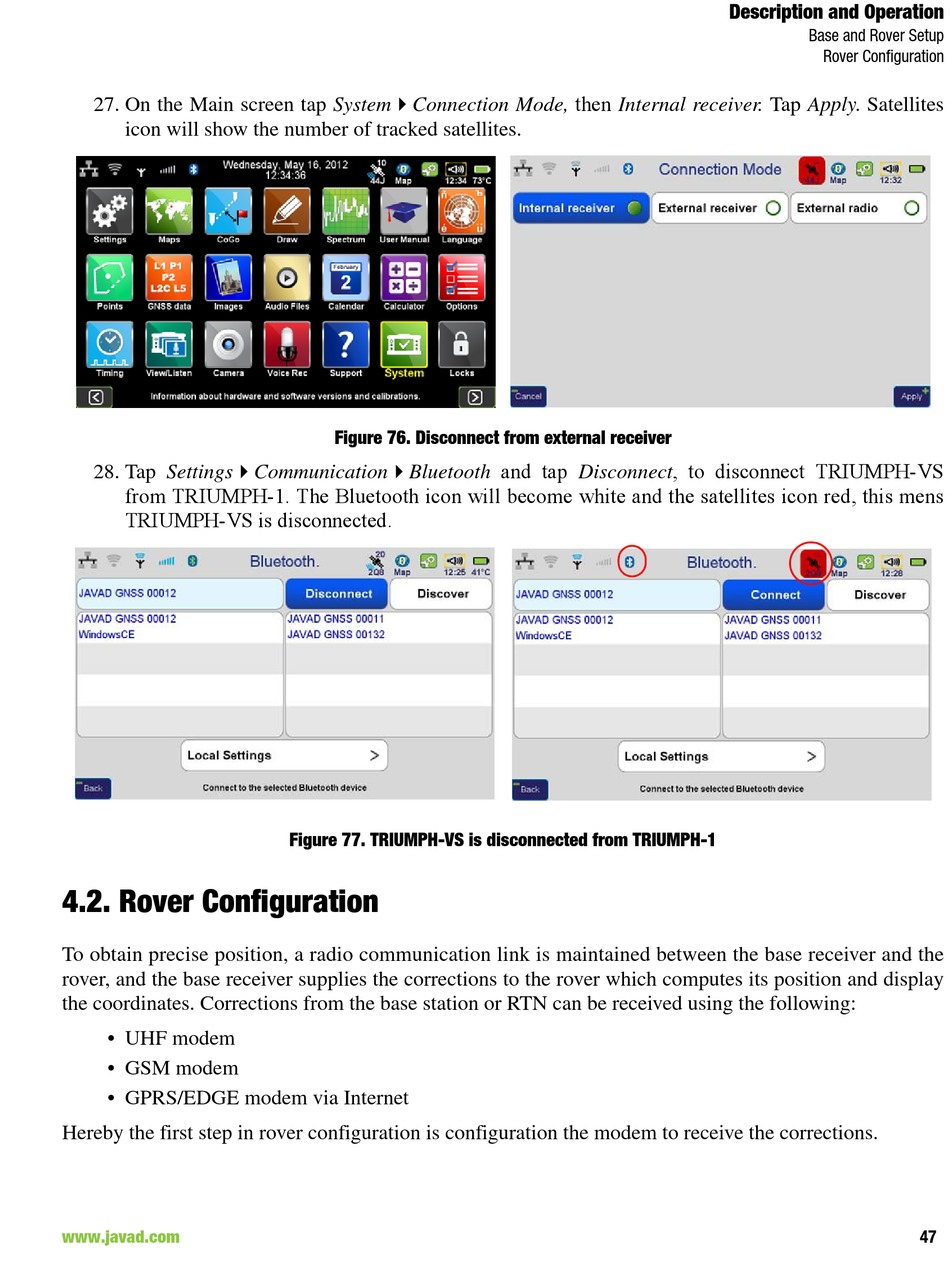

27. On the Main screen tap SystemConnection Mode, then Internal receiver. Tap Apply. Satellites
icon will show the number of tracked satellites.
28. Tap SettingsCommunicationBluetooth and tap Disconnect, to disconnect TRIUMPH-VS
from TRIUMPH-1. The Bluetooth icon will become white and the satellites icon red, this mens
TRIUMPH-VS is disconnected.

4.2. Rover Configuration

To obtain precise position, a radio communication link is maintained between the base receiver and the
rover, and the base receiver supplies the corrections to the rover which computes its position and display
the coordinates. Corrections from the base station or RTN can be received using the following:
• UHF modem
• GSM modem
• GPRS/EDGE modem via Internet
Hereby the first step in rover configuration is configuration the modem to receive the corrections.
www.javad.com
Figure 76. Disconnect from external receiver
Figure 77. TRIUMPH-VS is disconnected from TRIUMPH-1
Description and Operation
Base and Rover Setup
Rover Configuration
