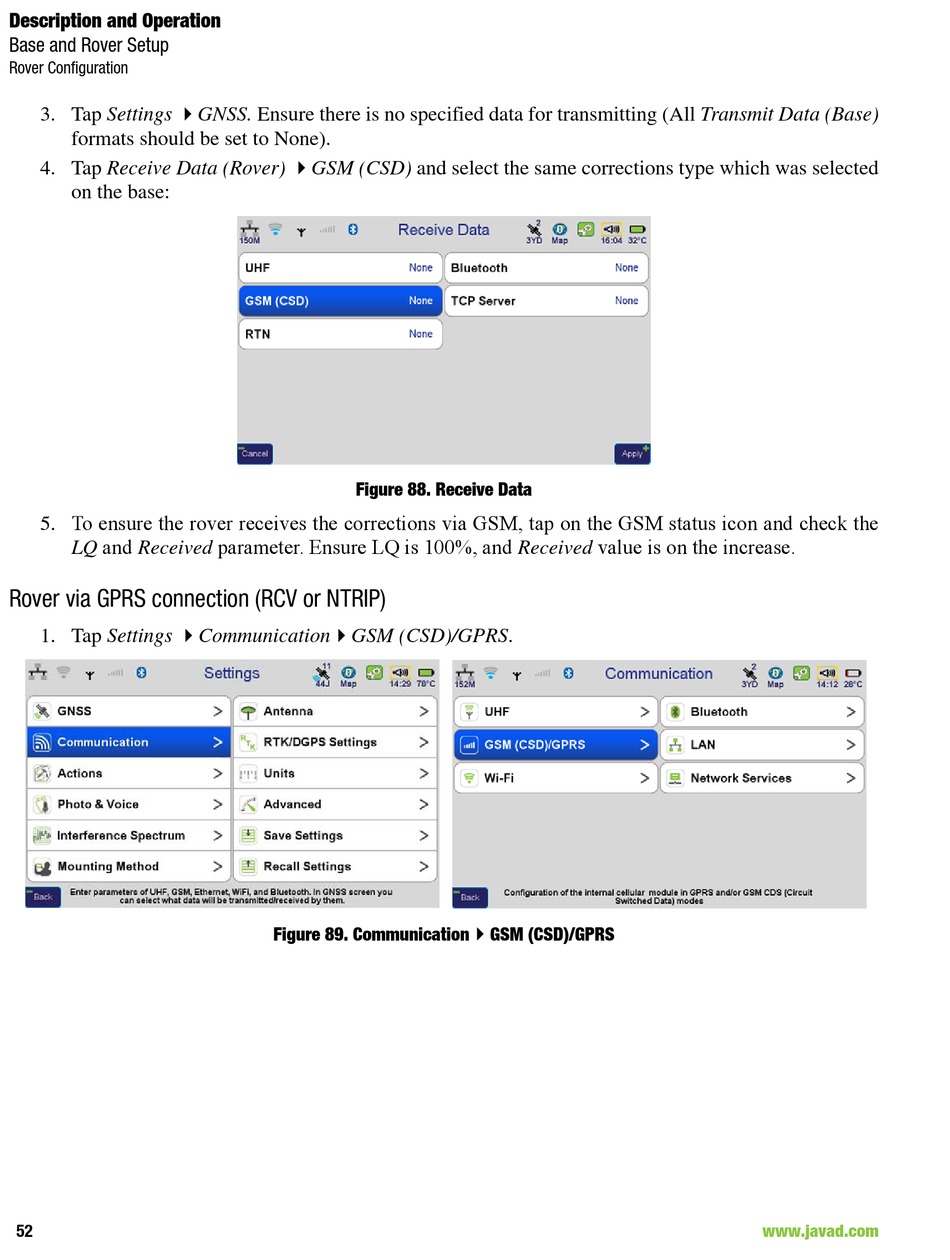

Javad TRIUMPH-VS Operator's Manual page 52

Description and Operation
Base and Rover Setup
Rover Configuration
3. Tap Settings GNSS. Ensure there is no specified data for transmitting (All Transmit Data (Base)
formats should be set to None).
4. Tap Receive Data (Rover) GSM (CSD) and select the same corrections type which was selected
on the base:
5. To ensure the rover receives the corrections via GSM, tap on the GSM status icon and check the
LQ and Received parameter. Ensure LQ is 100%, and Received value is on the increase.
Rover via GPRS connection (RCV or NTRIP)
1. Tap Settings CommunicationGSM (CSD)/GPRS.
52
Figure 88. Receive Data
Figure 89. Communication

GSM (CSD)/GPRS
