Description and Operation
Operation in RTK Mode
Stake out
Stake survey
Stake survey is characterizing with the following: after staking the point, this point can be surveyed to
obtain new coordinates. The stake survey is identical with point stake out. After the point is staked out,
you can survey it: click Start and Stop to begin and finish the surveying:
After survey is finished, open the directory with points (MainPoint), select a point, click Edit, and then
in the next screen, compare the difference between the true values of the coordinates and the coordinates
obtained in the field.
Stake Line
While stake line the data is displayed relative to a line specified by two points. This is useful if you want
to divide the line into several parts, to draw a parallel line and similar works. Such tasks can be performed
with coordinate geometry (CoGo), and y Stake line also.
1. Select two points to specify the line (to open the list of the points, tap on the point name at the top
of Action screen).
2. Action screen displays two points connected by a line and from your central position held another
line which is perpendicular to a given line. And in the panel instead of the distance to the north
72

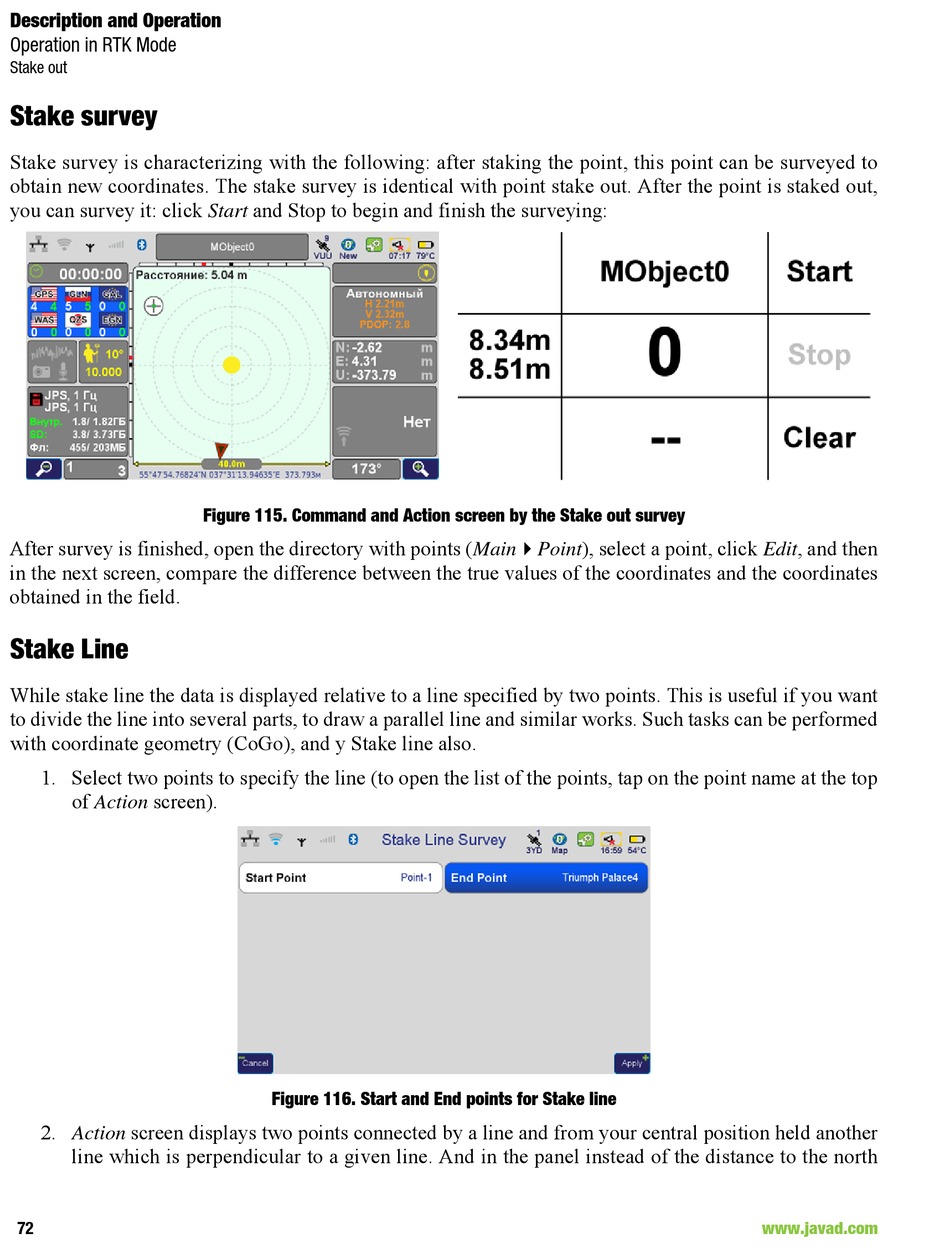

Figure 115. Command and Action screen by the Stake out survey
Figure 116. Start and End points for Stake line
