Description and Operation
Operation in RTK Mode
Stake out
4. A list of existing maps of the connected device will appear. You can create a new map for a new
job by clicking New map and entering its name.
5. Click Export button and all the selected points of the will be transferred to device.
6. Similarly, you can send backgrounds to the device. For details, refer to the Justin Link Software
Manual.
Point stake out
In this mode the points are staking out one by one. Select the points from the list (to open the list, tap on
the point name at the top of Action screen).
Use Action or Command screen to perform the stake out.
On the Action screen a yellow circle in the center is displayed, symbolizing your position. Crossed-white
or blue circle indicates the selected target point. It is white if it is on the screen and blue if outside.
70

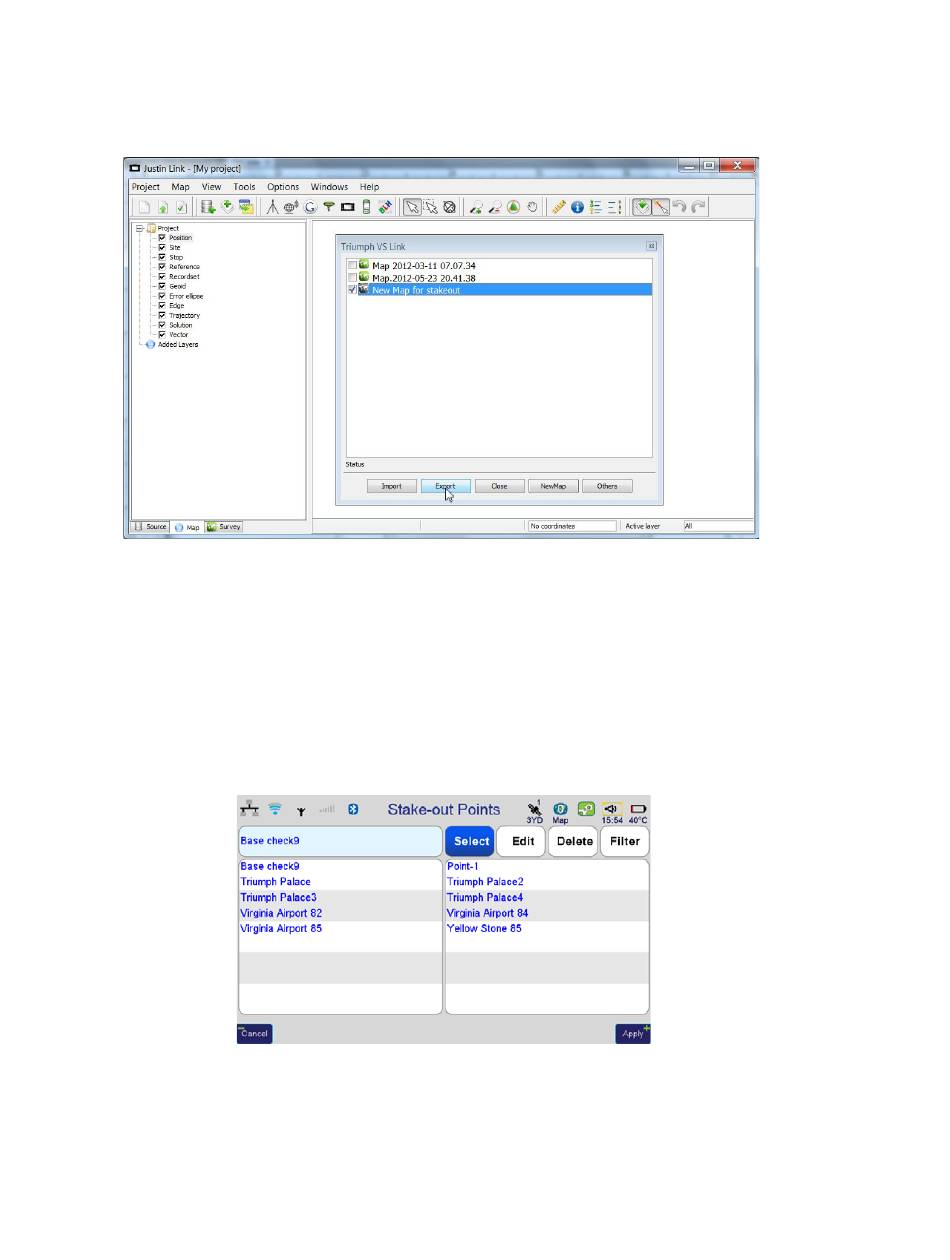

Figure 111. Export of new map
Figure 112. Stake-out points
