TriPad
The TriPad is the receiver's minimum interface used
to display and control data input and output.

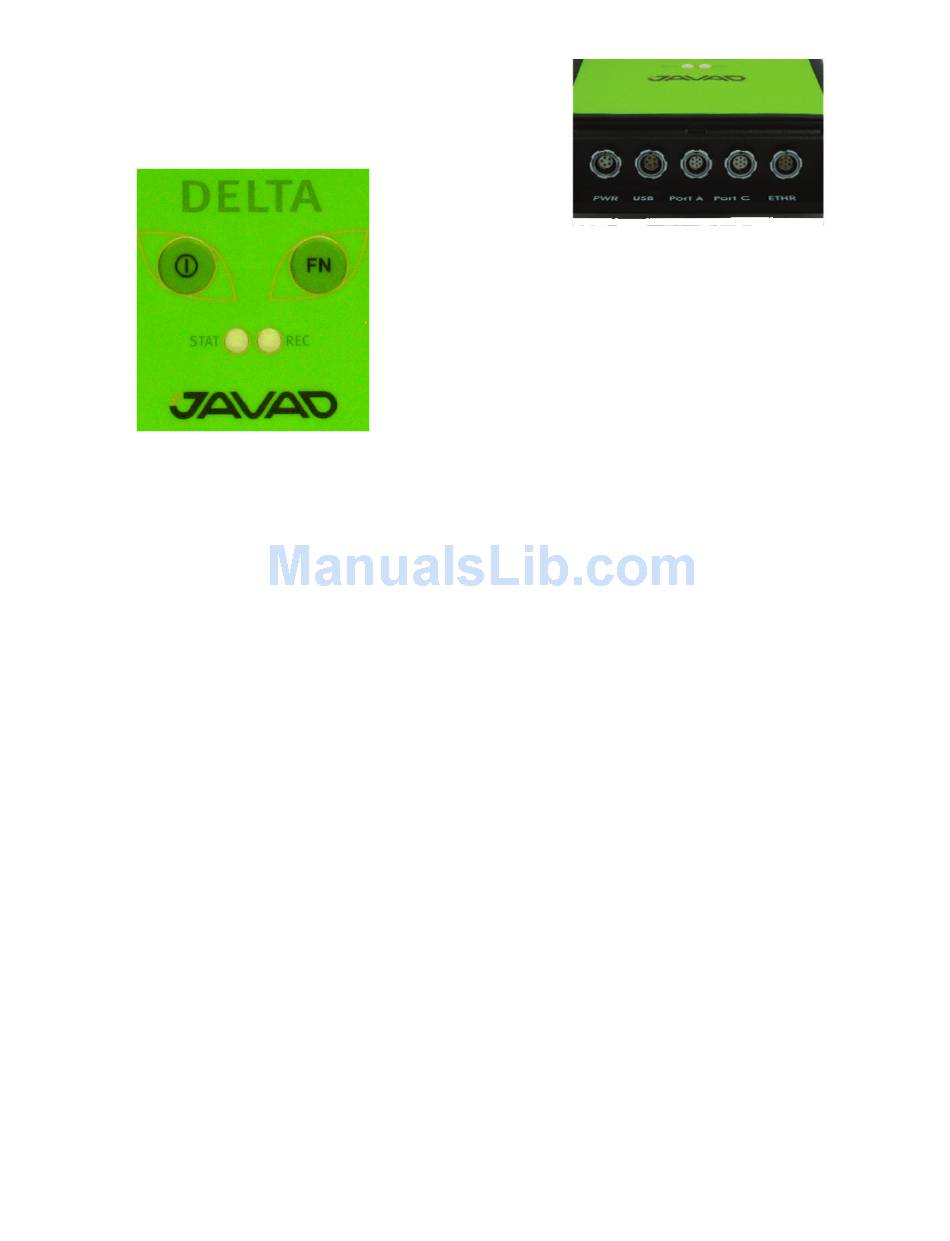

Figure 3.
The STAT (status) LED displays the number of
tracked satellites.
• Green – eight and more satellites.
• Yellow – five to seven satellites.
• Red – less than five satellites.
• No light – no satellites.
Effective number of satellites are total number of sat-
ellites tracked minus the number of non-GPS systems
tracked. E.g. if 8 GPS and 5 GLONASS are tracked the
effective number of satellites is 12.
The REC (record) LED displays the data recording
status and blinks on each recording.
• Green – recording data.
• Yellow – less than 10 min memory left.
• Red – memory is full.
• No light - not active.
The On/Off (power) button turns the receiver on and
off.
The FN button starts/stops data recording.

Data and power ports

The DELTA receiver can be equipped according us-
ers needs and have different ports on the front and back
panels.
Below are presented some examples of possible con-
figurations:
www.javad.com
DELTA TriPad
Figure 4.
• Power – used to connect the receiver to an exter-
nal power source. This port can also be used to
charge the batteries.
• Serial – used for communication between the re-
ceiver and an external device.
• Ethernet - used to connect the receiver to local
network.
• USB –used for high-speed data transfer and com-
munication between the receiver and an external
device.
The DELTA-3N receiver can be equipped according
users need and have different connectors on the back
panel. Below are presented some examples of possible
configurations:
• The external GNSS antenna connects to the TNC
external antenna connector (optional)
• The 1PPS and Event marker BNC connectors (up
to two) (optional)
• External Frequency Input/Output BNC connec-
tor (optional)

Turning On/Off

To turn ON the receiver, press and hold the power
button until the LEDs briefly flash. To turn OFF the re-
ceiver, press and hold the power button for more than
one and less than four seconds (until both the SAT and
the REC LEDs are off). This delay (about 1 second)
will prevent the receiver from being turned off by mis-
take.
DELTA-3N saves the last power status and restore it
after voltage loss.

Power supply requirements

The socket-outlet shall be installed near the equip-
ment and shall be easily accessible.
