Javad TRIUMPH-VS Operator's Manual page 49

• Specify the antenna (external or internal)
Note:
All UHF parameters for rover, such as frequency, protocol parameters should be identical with the same
base parameters.
4. To setup the frequency, select the value from the list, by tapping on the Frequency. If there is no
needed frequency value, tap Add or Edit and insert/edit the frequency:
5. The protocol parameters can be reviewed/ changed by tapping on the Protocol button. Use JAVAD
protocol type if base and rover are the JAVAD GNSS receivers .
www.javad.com

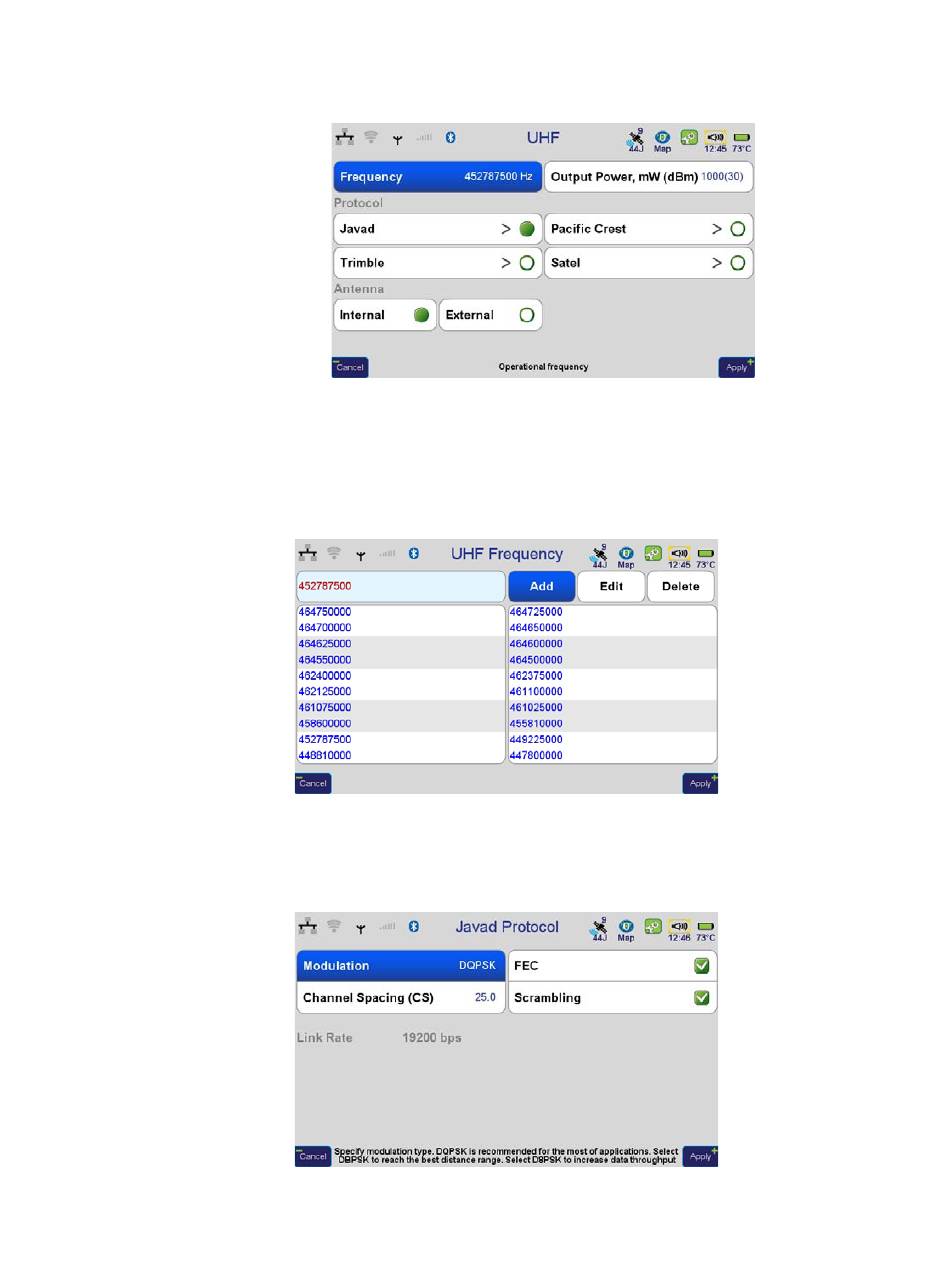

Figure 80. UHF parameters
Figure 81. UHF Frequency
Figure 82. Protocol parameters
Description and Operation
Base and Rover Setup
Rover Configuration
49
