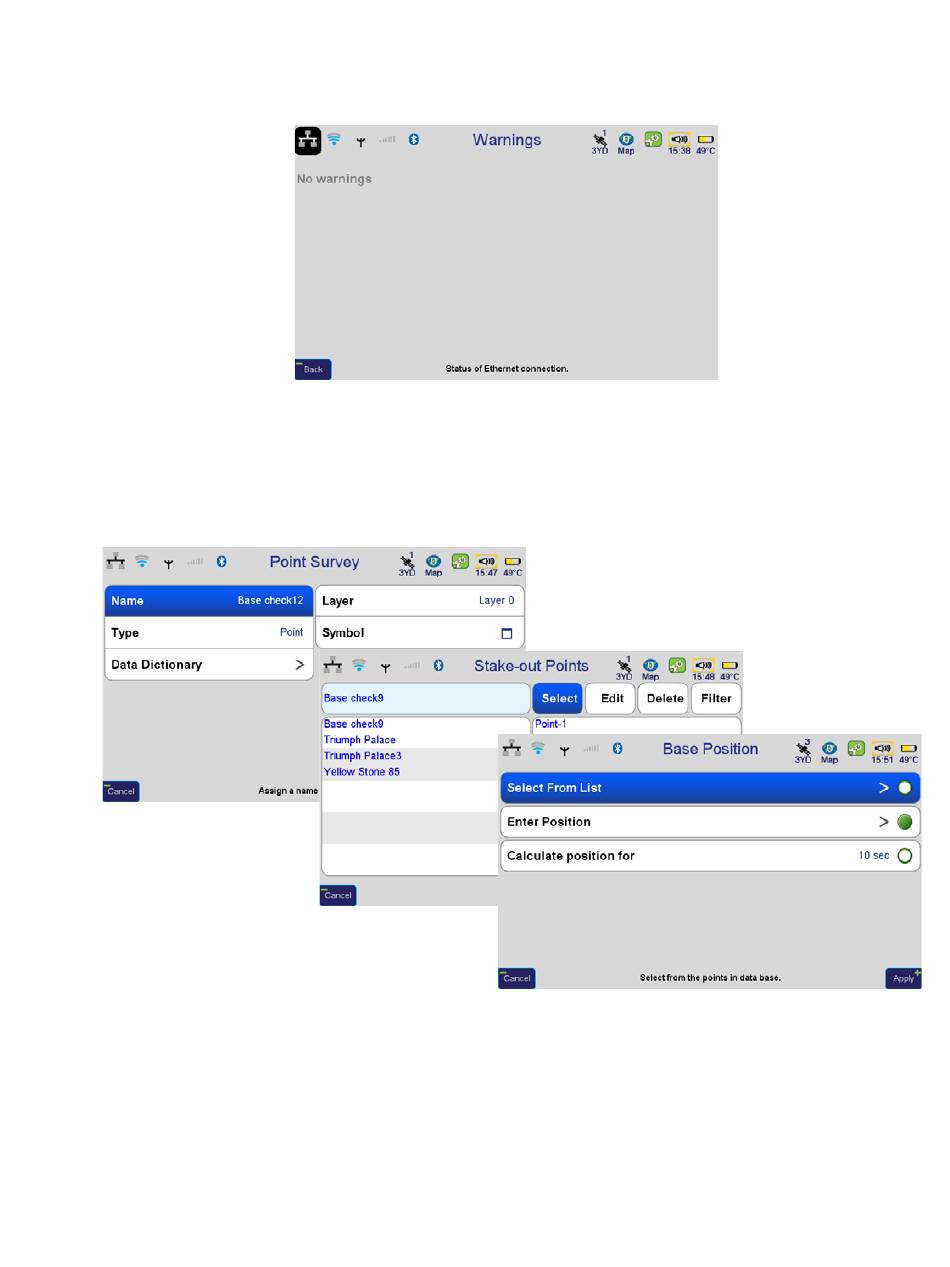

• Warnings - shows warnings.
• CLR Screen - Clear screen
• Back - Return to Action screen
2. This panel displays the name of the current point. tapping on this panel, appears the window with
the parameters of the object (name, attribute, layer, etc.) for survey, either select a point for the
stake out, or setup coordinates of the base station.
www.javad.com
Description and Operation
Operation in RTK Mode
Action Screen
61
