Points for stake out
At first the points for stake out should be saved in the receiver. This can be done with Justin Link.
1. Create a new project and import the points for stake out using Import (for text files, DXF-files,
KML-files), or use Add Layer (for MapInfo TAB-file and ESRI SHP-files).
2. Now you need to convert a new layer to the Justin Link layer. Select all the objects on the layer on
the map and click Create new layer.
3. Select the objects for stake out, with the right button open the menu and select ExportExport To
TVS.
www.javad.com

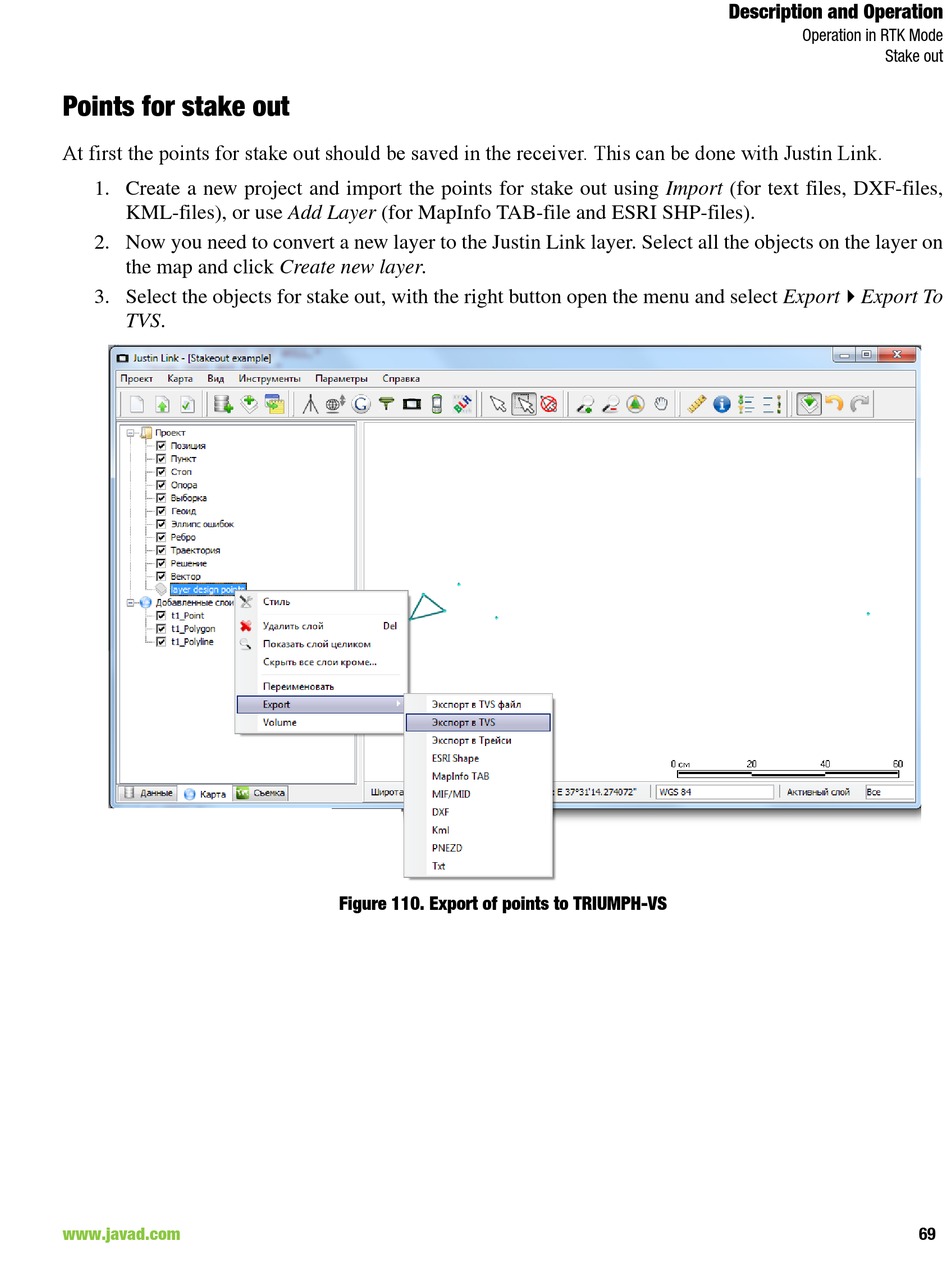

Figure 110. Export of points to TRIUMPH-VS
