Javad TRIUMPH-VS Operator's Manual page 75

Description and Operation
Stop and Go Survey for Post-processing
Stake out
Tap SettingsActions and set the survey mode: point survey for static and fast static, or Stop&Go survey
for such mode.

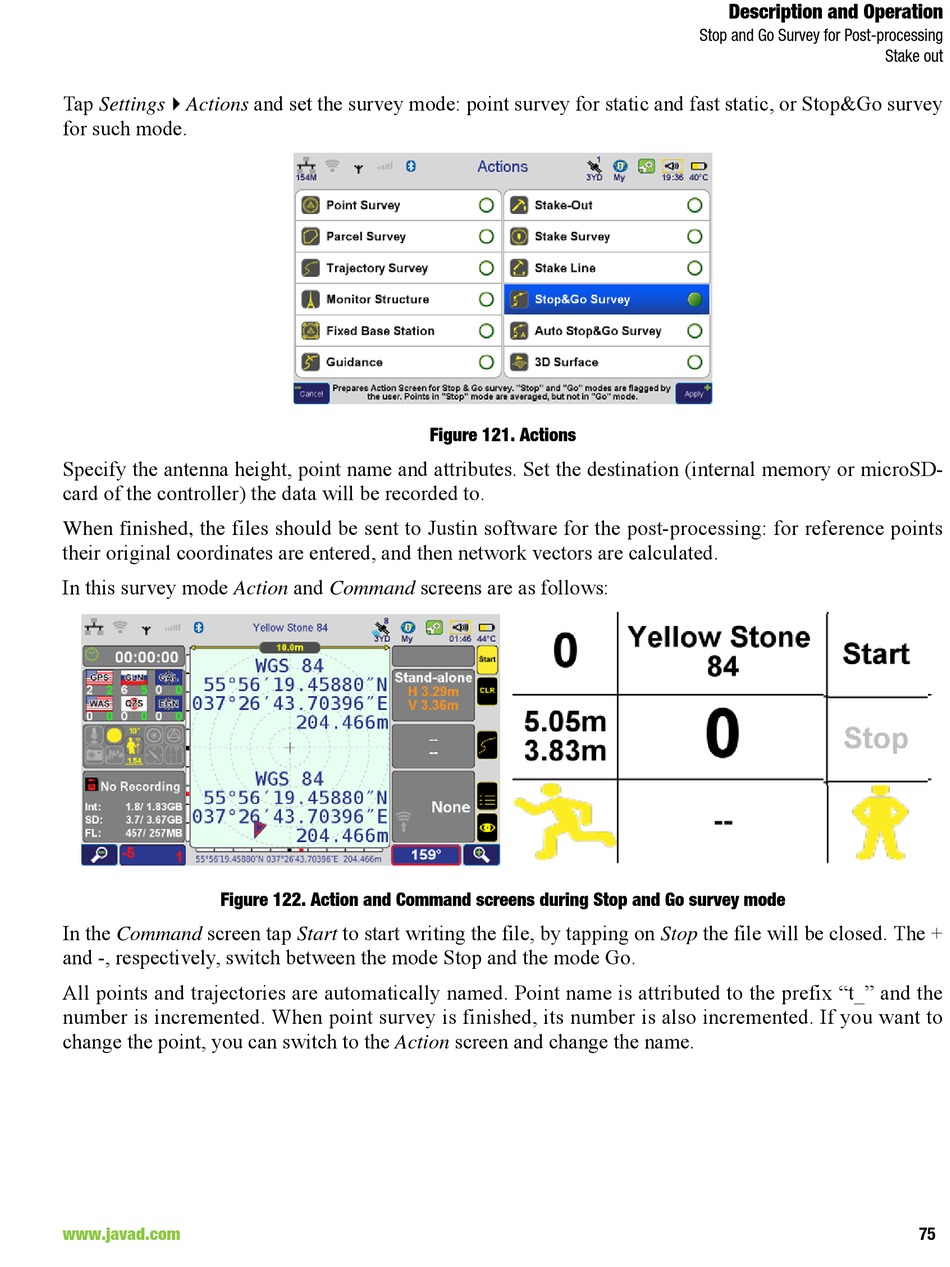

Figure 121. Actions
Specify the antenna height, point name and attributes. Set the destination (internal memory or microSD-
card of the controller) the data will be recorded to.
When finished, the files should be sent to Justin software for the post-processing: for reference points
their original coordinates are entered, and then network vectors are calculated.
In this survey mode Action and Command screens are as follows:
Figure 122. Action and Command screens during Stop and Go survey mode
In the Command screen tap Start to start writing the file, by tapping on Stop the file will be closed. The +
and -, respectively, switch between the mode Stop and the mode Go.
All points and trajectories are automatically named. Point name is attributed to the prefix "t_" and the
number is incremented. When point survey is finished, its number is also incremented. If you want to
change the point, you can switch to the Action screen and change the name.
