Description and Operation
Base and Rover Setup
Base Station Configuration

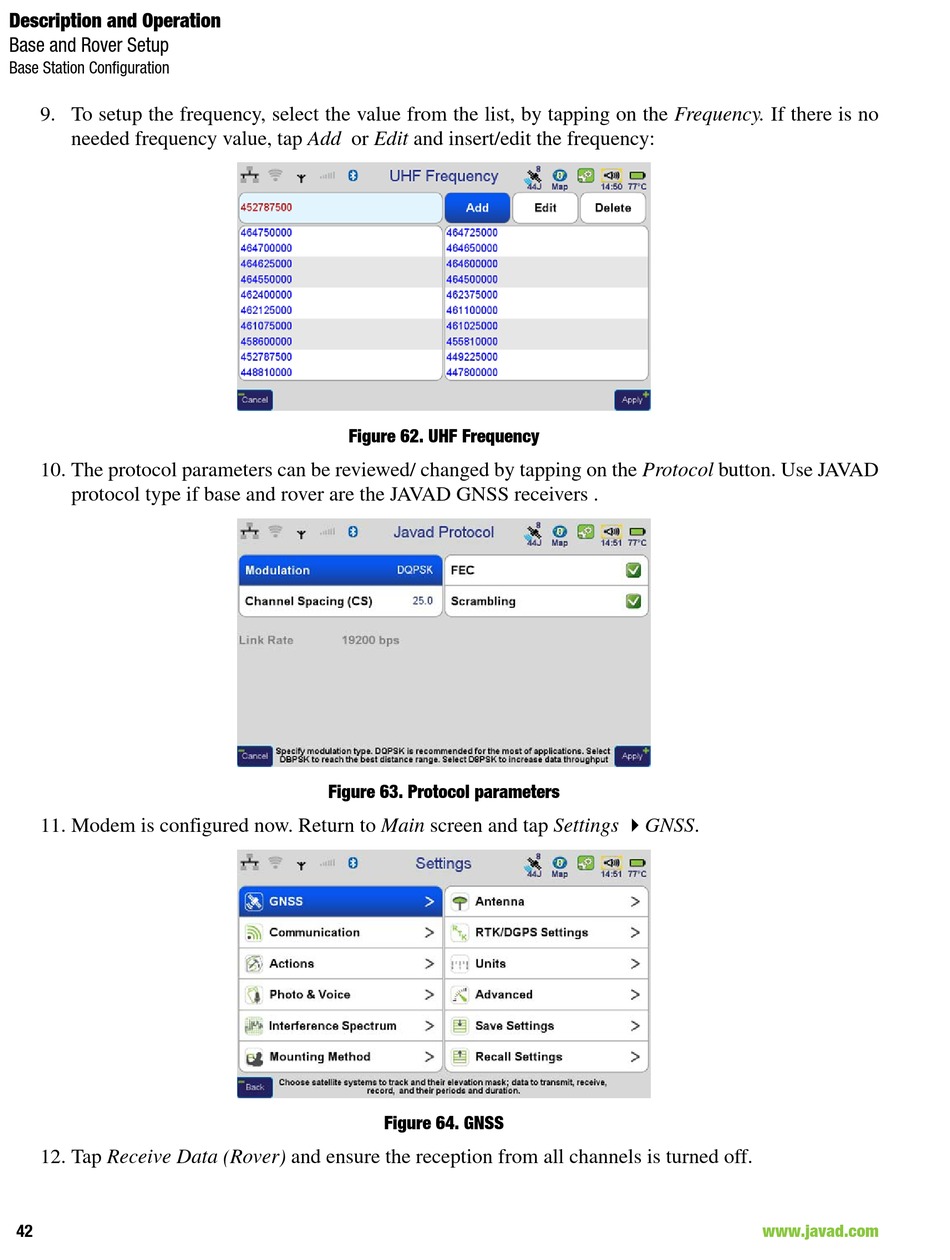

9. To setup the frequency, select the value from the list, by tapping on the Frequency. If there is no
needed frequency value, tap Add or Edit and insert/edit the frequency:
10. The protocol parameters can be reviewed/ changed by tapping on the Protocol button. Use JAVAD
protocol type if base and rover are the JAVAD GNSS receivers .
11. Modem is configured now. Return to Main screen and tap Settings GNSS.
12. Tap Receive Data (Rover) and ensure the reception from all channels is turned off.
42
Figure 62. UHF Frequency
Figure 63. Protocol parameters
Figure 64. GNSS
